Daktronics

Data Studio: How do I verify my feed for sports?

Topic

  • How do I verify my NCAA Volleyball feed in Data Studio?
  • How do I verify my Football feed in Data Studio?


Environment

  • Product:
  • Component: Data Studio, Data Studio Volleyball, NCAA LiveStats (NLS for Volleyball), Stat Crew XML, Genius Sports
  • Control System: Show Control System (SCS), Venus Control Suite

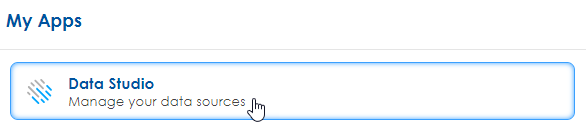

my apps_data studio3.jpg



Steps

  1. Log onto Venus Control Suite with the correct credentials.
  2. Click on the Data Studio icon from your My Apps menu in Venus Control Suite
  3. Click on the desired source. Data Studio comes preconfigured with your sport feeds.

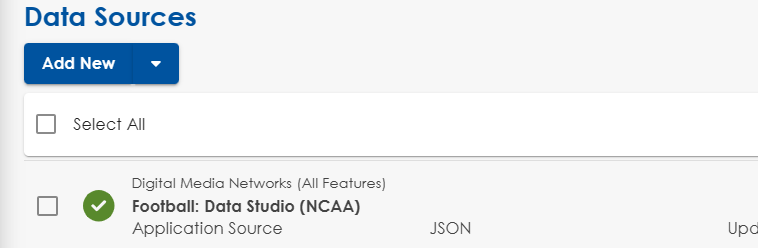

    • datastudiovolleyball_corefeeds1a.png
  1. Click the paper clip icon next to the feed to see the data.

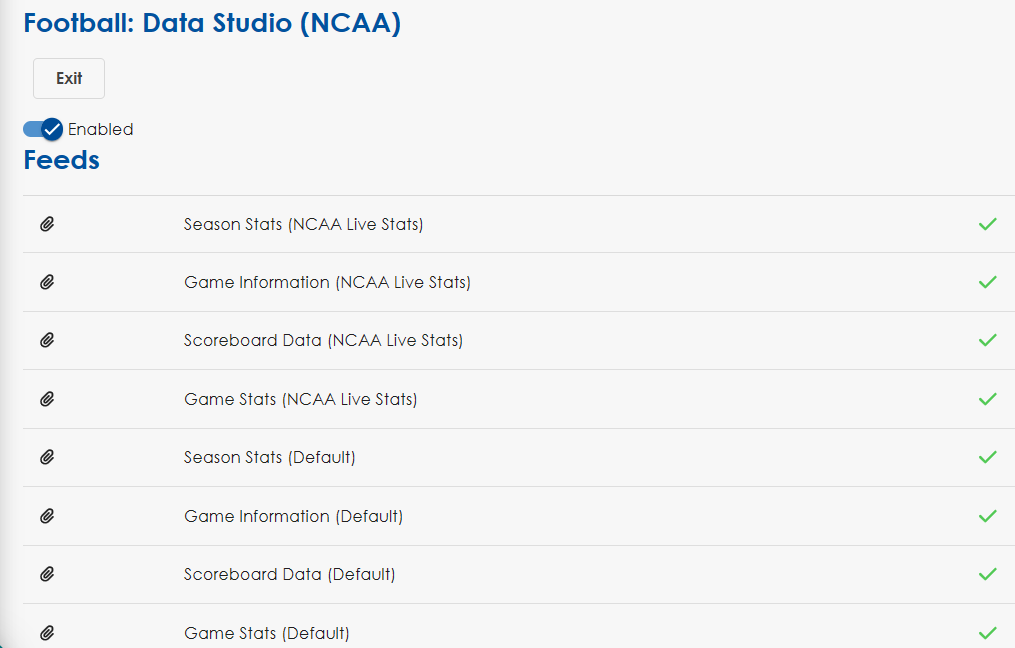

    • Screenshot 2024-03-18 114145.png
  1. Click on the arrows ▼ ▷ expand and collapse the feed.
  2. The game in your feed should match the game you have started in Data Studio Sport app. (Data Studio Baseball, Basketball, Football, Volleyball, Soccer, etc.)

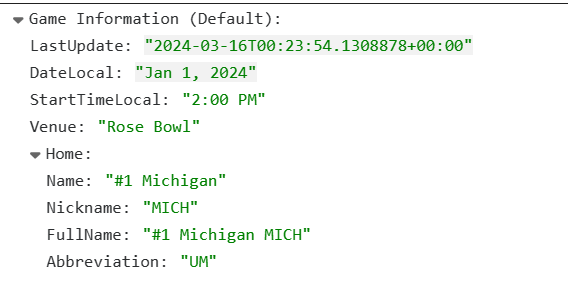

    • Screenshot 2024-03-18 114854.png

Search Tips:

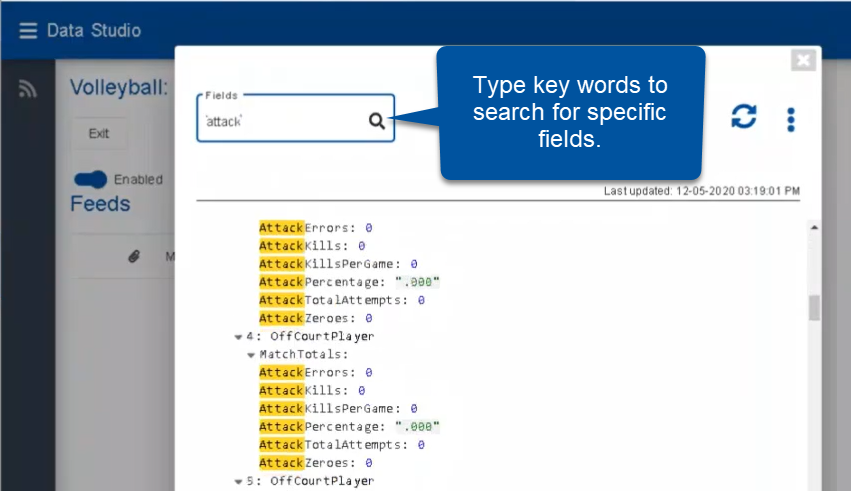

Search by keyword to find something specific.

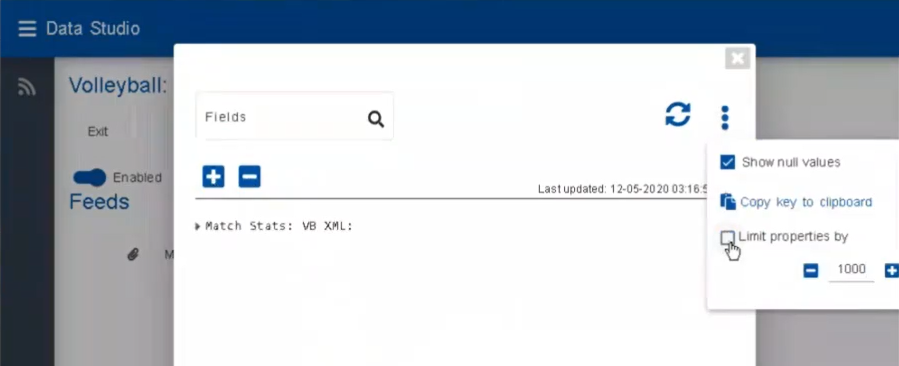

JSON feeds contain a lot of data.  To make the data easier to consume, Data Studio may avoid null values and/or limit the properties.  If you do not see something, verify/adjust the settings on the feed by going to the 3 dot ⁝ icon in the upper right-hand corner.

KB ID: DD4695107
