FieldLynx data is not lining up properly.

Potential Symptoms

  • Content from FieldLynx is not showing in the correct location on the display.
  • Team abbreviation is only taking the last 4 digits of the team location.

Environment

  • Product Family:  Timing
  • Product:  FieldLynx
  • Component:  DMP-8000; FieldLynx, Display Studio/Content Studio
  • Control System:  Show Control System (SCS)

Cause

  • Wrong Script File being used in the FieldLynx Scoreboard options.
  • Affiliation Abbreviation is checked in the Results Settings.

Resolution

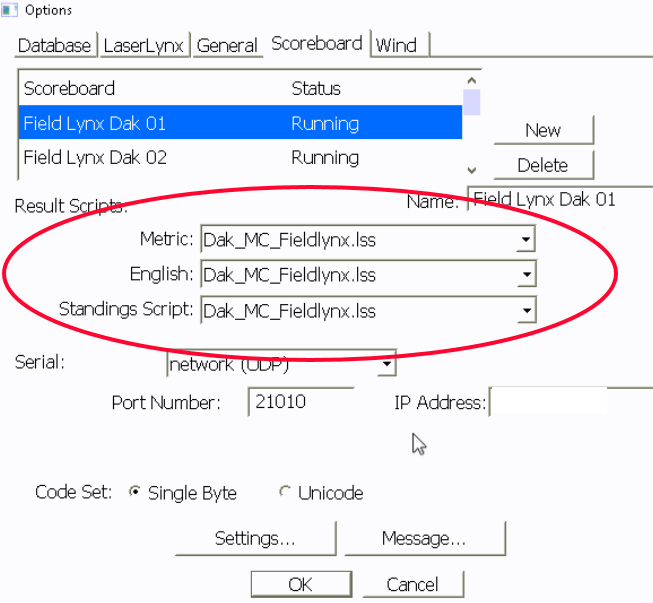

  • Set FieldLynx Scoreboard Result Scripts to "Dak_CM_Fieldlynx.lss".

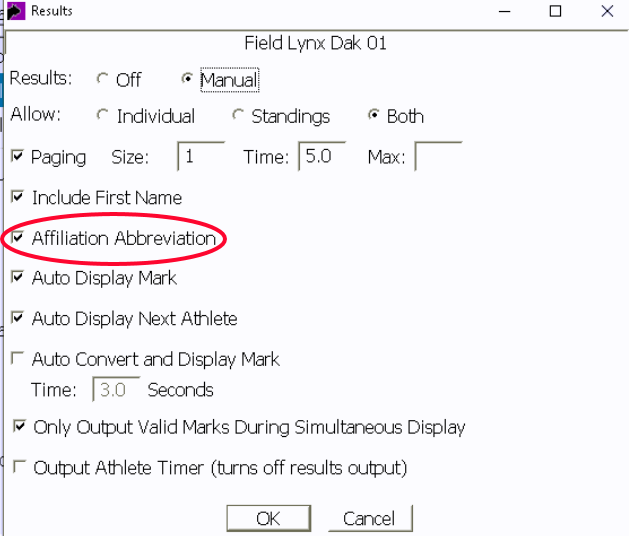

  • Remove checkmark next to the Affiliation Abbreviation.

KB ID: DD4690444
