How to identify Media Player Software versions

Topic

Identifying the version of Adflow media player software on a device

Environment

Product Family: Adflow Media Players
Product: All
Components: Player 1 (P1), Player 2 (P2), Player 10 (P10)
Control System: N/A

Steps

Adflow media players can potentially be one of three major version releases (Player Versions):

Player 1 (P1)
Player 2 (P2)
Player 10 (P10)

Methods of identifying Player Version:

Player 1

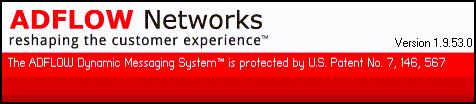

Image splash on software load

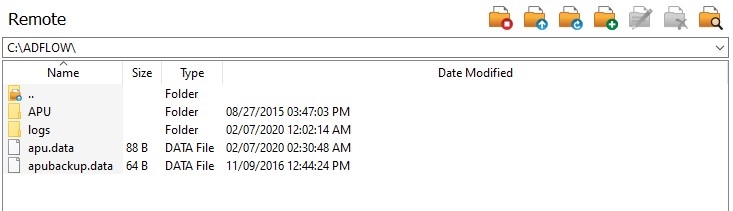

Folder structure

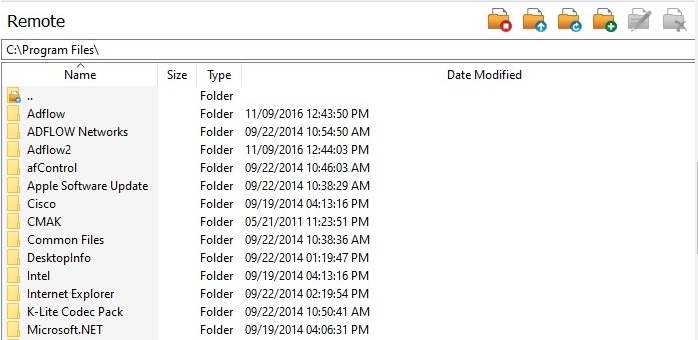

The P1 software resides in both "C:\ADFLOW" as well as "C:\Program Files" or "C:\Program Files (x86)"

Windows Registry "Shell" command

Location: HKey_Current_User\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Shell

"C:\Program Files (x86)\ADFLOW Networks\Process Monitor App\Process Monitor App.exe"

Player 2

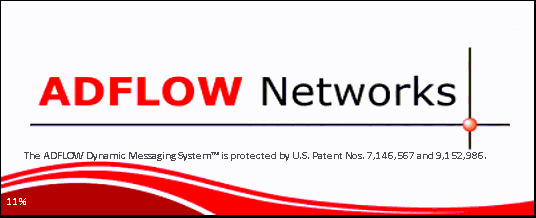

Image splash on software load

Folder structure

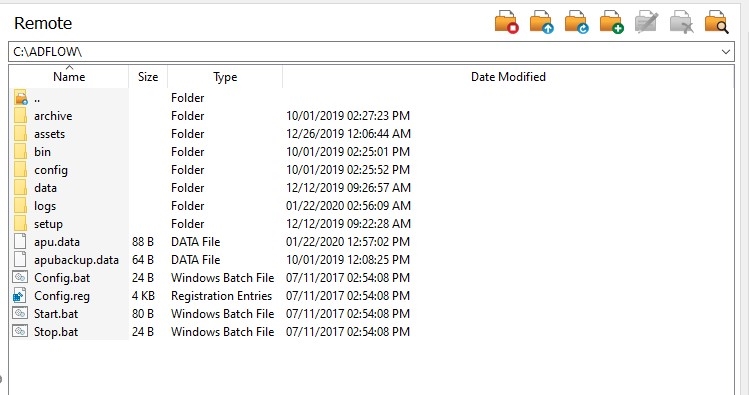

The Player 2 software resides solely in the "C:\ADFLOW" folder

Windows Registry "Shell" command

Location: HKey_Current_User\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Shell

"C:\ADFLOW\start.bat"

Player 10

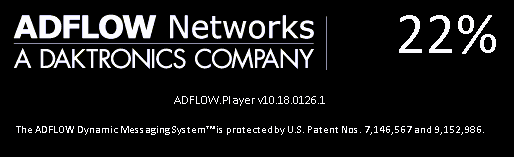

Image splash on software load

Folder structure

The Player 10 software resides solely in the "C:\ADFLOW" folder

Windows Registry "Shell" command

Location: HKey_Current_User\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Shell

"C:\ADFLOW\start.bat"

Methods of differentiating between P2 and P10:

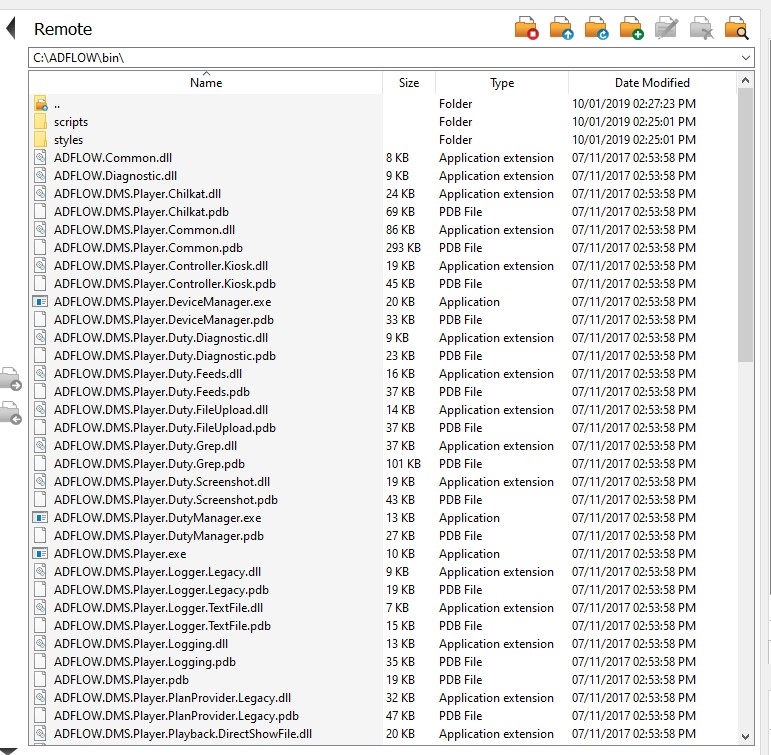

Executable file naming convention in C:\ADFLOW\bin folder

Player 2

The term "DMS" is included in the file name, ie. Adflow.DMS.*

Player 10

The term "DMS" is not included in the file name, ie. Adflow.*

Playback log version number on software load

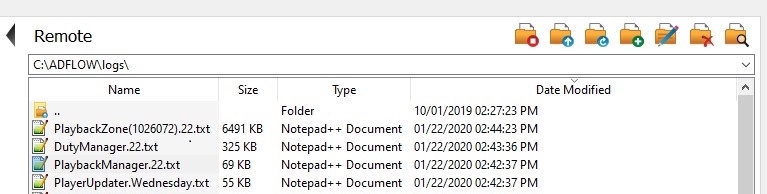

Open a PlaybackManager log file from "C:\ADFLOW\logs"

Note: you must locate the point in the log in which the player software first loads (tip: search for keyword "version")

Player 2

Player 10

KB ID: DD4647654
