DAK Score App: How do I operate a soccer scoreboard?

Topic

  • How do I operate a soccer scoreboard with DAK Score?

Environment

  • Product: DAK Score app
  • Components:
  • Control System: Scoreboard with All Sport MX-1

Steps

  1. After connecting to the MX-1, tap the main menu button Menu Button.png, and select Settings. Under Select Sport, ensure Soccer is selected, and then tap DONE.
  2. Tap the main menu button Menu Button.png, and select Settings once more. Under Scoreboard type, select either Football or Soccer, depending on the scoreboard model in use.
    • If the scoreboard generally scores football games (model designation "FB-####"), select Football. You would also select this for multisport ("MS-####") models.
    • For most other dedicated soccer models ("SO-####"), select Soccer.

      Soccer Settings.jpg

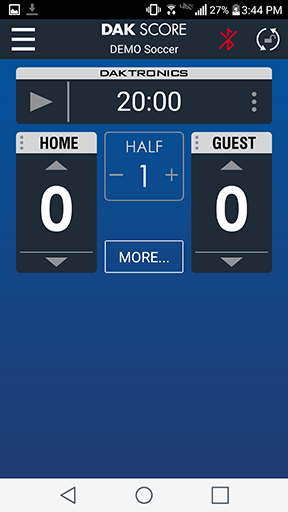

  3. Use the up and down arrows to adjust the team scores, and use the + and - buttons to change the HALF.

    Soccer Basic.png

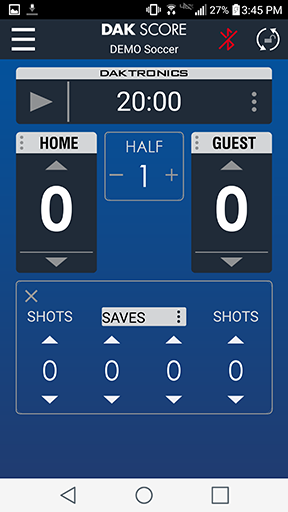

  4. Tap MORE to expose additional functions for controlling larger soccer scoreboards.

    Soccer Expanded.png
  5. By default, SAVES are set to be displayed on the scoreboard. To change this, tap SAVES and select Corner Kicks or Fouls instead.

    Soccer Stats.png
  6. Use the up and down arrows to set the number of SHOTS and SAVES, C. KICKS, or FOULS for each team.

Auto Horn

To enable/disable the Auto Horn function:

While the clock is stopped, tap the settings button Clock Dots.png next to the clock.

  • If the auto horn is disabled, tap Enable Auto-Horn.
  • If the auto horn is enabled, tap Disable Auto-Horn.


Related Articles

DAK Score App: How do I set the clock?
DAK Score App: How do I adjust Team Name Message Centers (TNMCs)?
