How to configure SPLASH Meet Manager to interface with the OmniSport 2000.

Topic

  • How do I configure SPLASH Meet Manager so that it will integrate with the OmniSport 2000?

Environment

  • Product Family: Timing
  • Product: Aquatics Control
  • Components: SPLASH Meet Manager (SwimRankings), OmniSport 2000
  • Control System: Pool Equipment

Steps

  1. Once meet is selected/created, select the Results button or via Module dropdown or CTRL + 6.
  2. Select Add Timing System from the Edit dropdown menu in SPLASH Meet Manager.
    Splash 1.png

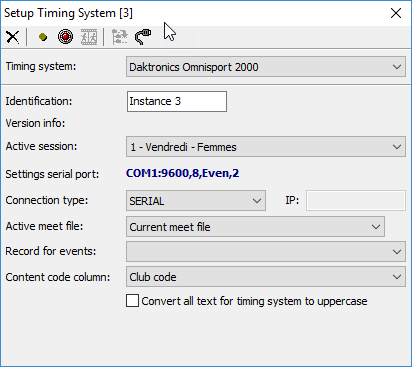

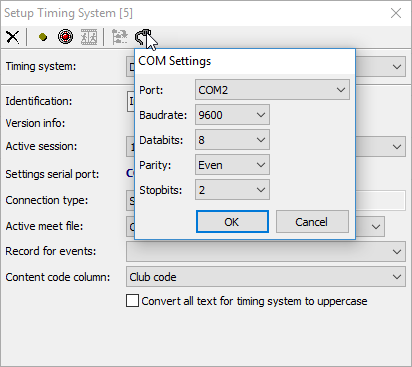

  3. If connecting to the RESULTS port on the OmniSport with a serial connection, configure the setup for the following (com port value to match local machine assignment):
    splash 2 (003).pngsplash 7 (002).png

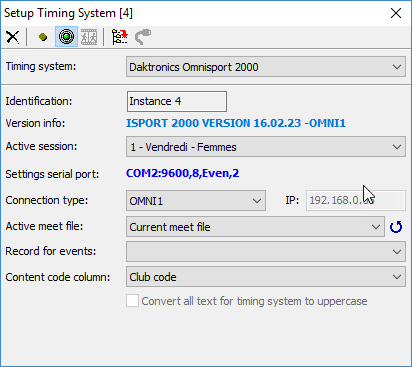

  4. If connecting via NETWORK port on the OmniSport with an ethernet connection, use the following setup (ensure the Omni # matches the one on the OmniSport 2000):
    spash 5 (002).png

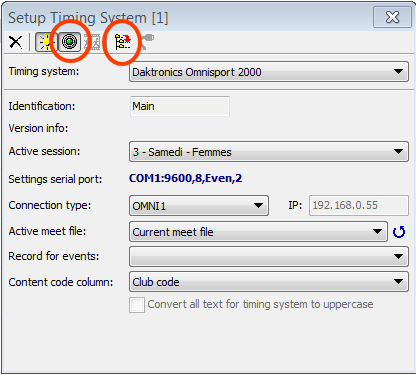

  5. Once connection type has been set, activate the connection by clicking the green Activate bulb, and then send events to the OmniSport via the Send button.

KB ID: DD4107310
