Show Control System: How do I create custom thumbnails for my buttons

Topic

  • Custom thumbnails for my display studio buttons
  • Show Control's Display Studio script buttons

Environment

  • Product:
  • Components: Display Studio
  • Control System: Show Control System (SCS)

Steps

For scripting basics, see: Show Control System: How do I create script buttons?

  1. Create a new or edit a button in a Scripting Container or a Quick Display container.
  2. Right click and choose Show/Hide Thumbnails to review the default/existing thumbnail.
  3. Click on the Film Strip icon in the upper right corner of the button.
  4. Choose browse to select an image to use as a thumbnail.

    1. The default thumbnails are stored at C:/Program Data/ Daktronics / Default Thumbnails, but users can browse to another location for their own images.

See animation below for how to import a custom thumbnail for your Display Studio buttons.

The example above uses a  400 x 300 PNG.  Larger images may be cut off.

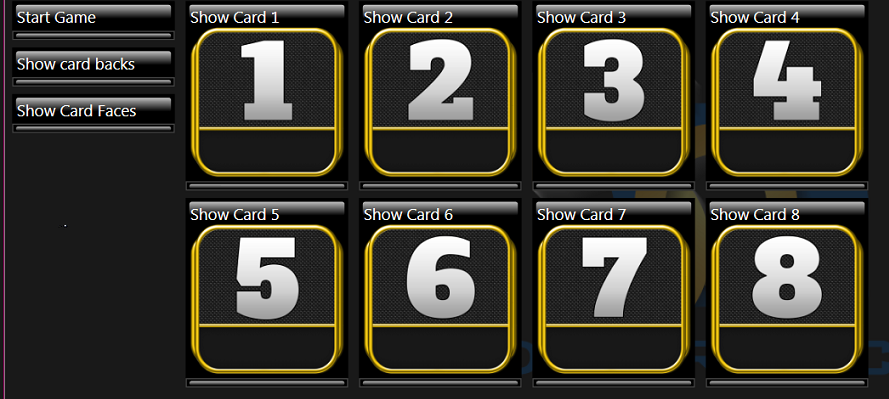

Here is another example of custom thumbnails in Display Studio with interactive games.

custom thumbnails in display studio.png

Related Resources

Show Control System: How do I add thumbnails from content to a script button?

KB ID: DD4016896
