Data Monitor: How do I use to verify data feeds?

Topic

  • How do I use the Data Monitor?

Environment

  • Product:
  • Components: Data Monitor
  • Control System: Show Control
The Data Monitor tool is used to monitor RTD feeds on a Daktronics Control System.

Steps

  1. The data monitor is a widget available in Show Control.
    data monitor 6.gif
  2. If you want the data monitor on a different computer in your system, Reference:  Where can I download Data Monitor to install?
  3. Add a port.
    1. Under Port, select new from the dropdown.

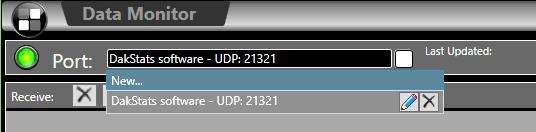

      data monitor4.png
    2. For standard port settings, reference ED-17652, and navigate to the sport you are trying to setup.
    3. Select OK to save your new port settings.
  4. If your data is working you will start to see it populate.

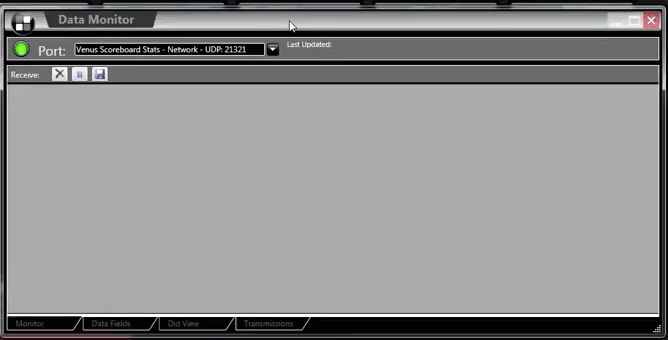

     data monitor5.gif

  5. View by DID.
    1. Select the DID view tab.
    2. Pick a DID file from the drop down.  Note: DID files are located at the following location on Show Control.
      C:\Program Files (x86)\Daktronics\Content Studio\StandardProfile
    3. Pick the appropriate data source.
    4. Query: RTDData.

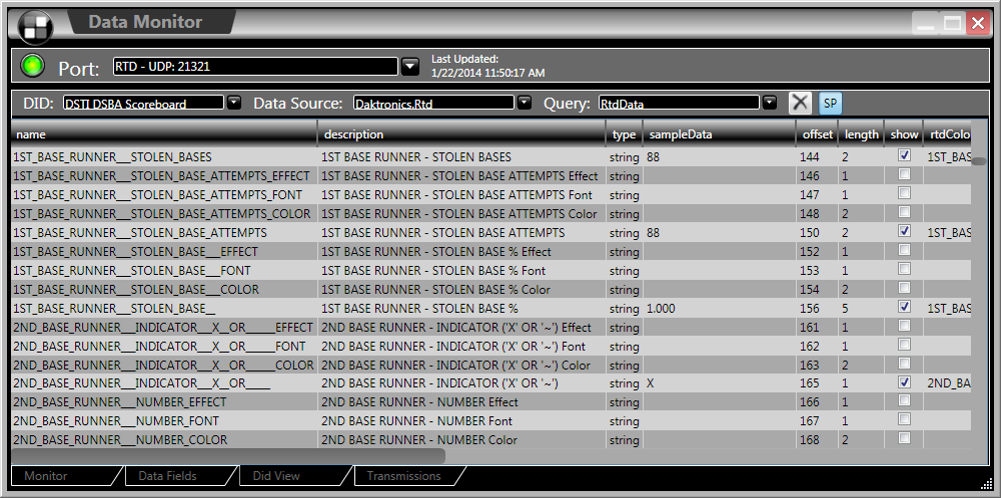

      data monitor3.png

KB ID: DD3964290
