DMP: How do I play a test pattern within the DMP HTML web interface?

Topic

  • Play a test pattern in a DMP within the web interface

    Environment

    • Product: DMP-5000, DMP-8000 version 7.19 and later
    • Component: User interface, HTML Configuration UI
    • Control System:

    Steps

    1. Log into the web interface.  See: How to use the DMP-8000 HTML web user interface.
    2. Locate and click on the monitor icon in the left side menu.

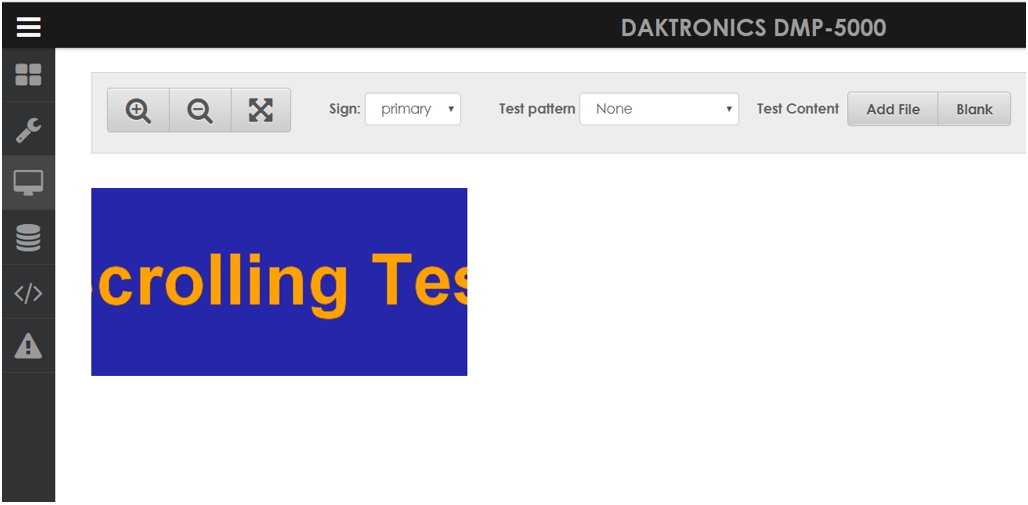

    3. Pick the sign and pick the type of test pattern you want to play.  Choosing the sign name refers to the whole sign; Monitor does not show specific zones within the sign.dmp test patterns.png
    4. The test pattern can monitored from this location. Click the magnifying glass and arrow icons  at the top of the video feed to make the monitor window larger, smaller, or to back to scale.
    5. When the test is complete, change the Test pattern back to none.

    Testing a specific file:

    1. From this location, select the file from the player's content directory by clicking Add File and navigating to the desired file.
    2. This content starts to play immediately. Other content files can be added and each one will play sequentially in the order that it was added.
    Content files can be in any of the following formats: .AVI, .JPG, .MP4, .PNG, or .VMPF.

    KB ID: DD3927807
