FL-3000/4500: How should line to line cables be installed in a gas price display system

Topic

  • How should line to line cables be installed in a FL-3000 gas price display system?

Environment

  • Product: FL-3000, FL-4500
  • Components: Line to line cable, driver
  • Control System:

Steps

  1. To fully understand how line to line cables should be installed click here and review section 4 of the FL-3000 installation manual, DD2238839.

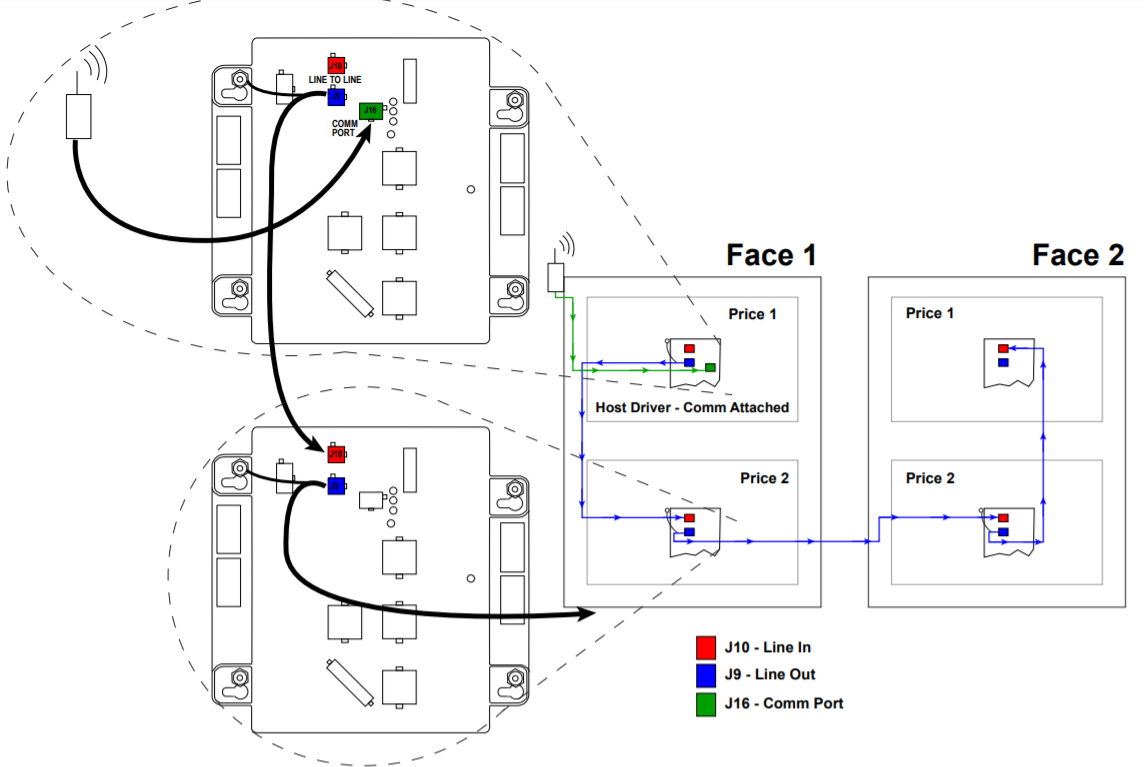

  2. Locate the "host" display. This is the display that receives signal from the communication device (main communication device plugged into J16). Review Figure 1 for a visual representation of how this might look in a system with two lines and two faces.
  3. Locate the end of the line to line cable that has a drain attached to it and plug it into J9 of the "host" display.
  4. Run the line to line cable to the next display and plug it into J10 of that driver.
  5. Repeat this process until all displays are linked to the host driver.
  6. Do NOT run line to line cable next to transformers, power supplies, ballasts, etc.


    KB ID: DD3819431
