NovaStar: How do I check sending receiver status in the NovaLCT-Mars program

Topic

  • How to check sending receiver status in the NovaStar NovaLCT-Mars program

Environment

  • Product: NovaStar Sending Box,  NovaLCT
  • Components: NovaLCT-Mars, Monitoring/ Status Checks
  • Control System: Market Standard or Limited Compliance using transmit common/open protocol
    • This includes but not limited to DVN-4003, Dragon Sticks, J Series, JVX, U Series, Q Series, QVN, Z Series, and ZPN.

Steps

1. Connect and log into the sender box: How to log into the NovaStar NovaLCT-Mars Sender Box?

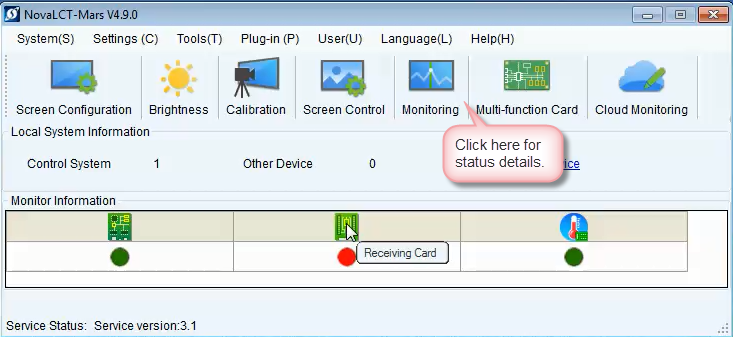

2. The basic log in page will give simple status indicator.

  1. Green= Normal
  2. Red=Fault
  3. Yellow= Voltage
  4. Grey= Unknown
Status rec card 1.png

3. Click the Monitoring Icon for more details.

4. In the monitoring window, click on the 2nd icon for the receiver card details.

Status rec card 2.png

5. Hover over the panels for additional status information. This information will refresh every 60 seconds.

Note: The other monitor (status) options are available with a multi-function card.



KB ID: DD3781973
