LaunchPad Mini: Replay in or replay out button on the LauchPad Mini not playing the correct transition, Daktronics video system.

Potential Symptoms

  • When pressing the Replay In or the Replay Out buttons on the LaunchPad Mini, the wrong transition plays.

Environment

  • Product: TriCaster
  • Component: LaunchPad Mini
  • Control System: Display Studio

Cause

  • Wrong transition is selected in the transitions slot for the TriCaster Session.

Resolution

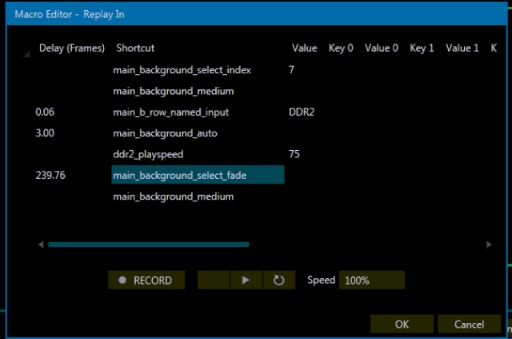

  • Replay In and Replay Out are set up as Macros in the TriCaster as the example below.


  • Make sure the desired transition is select for slots 7 and 8.
    • Replay In will play the transition selected in slot 7.
    • Replay Out will play the transition selected in slot 8.

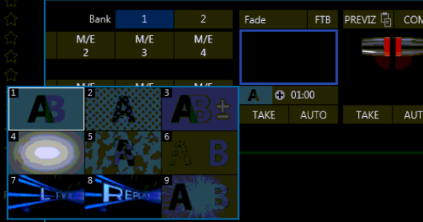

    • Select the "A" icon in the transitions box and change slot 7 and 8 as shown below.


    KB ID: DD3744325
