Midra: How to configure a Midra Series Analog Way Product for use in a Daktronics system?

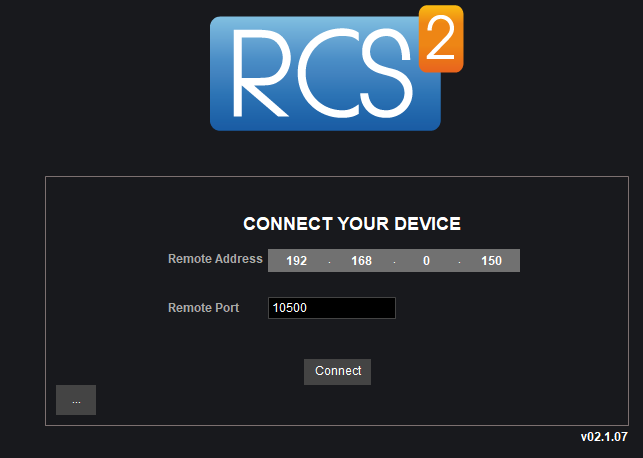

1. Open the RCS² program from a network connected computer. (The Midra Series product and version of the RCS2 program need to match for easiest connection.)
2. Connect to the device using the IP Address and standard port 10500.

3. Any changes that need to be made to the Screens, Inputs, Outputs, etc. an be adjusted on the Setup page after connecting.

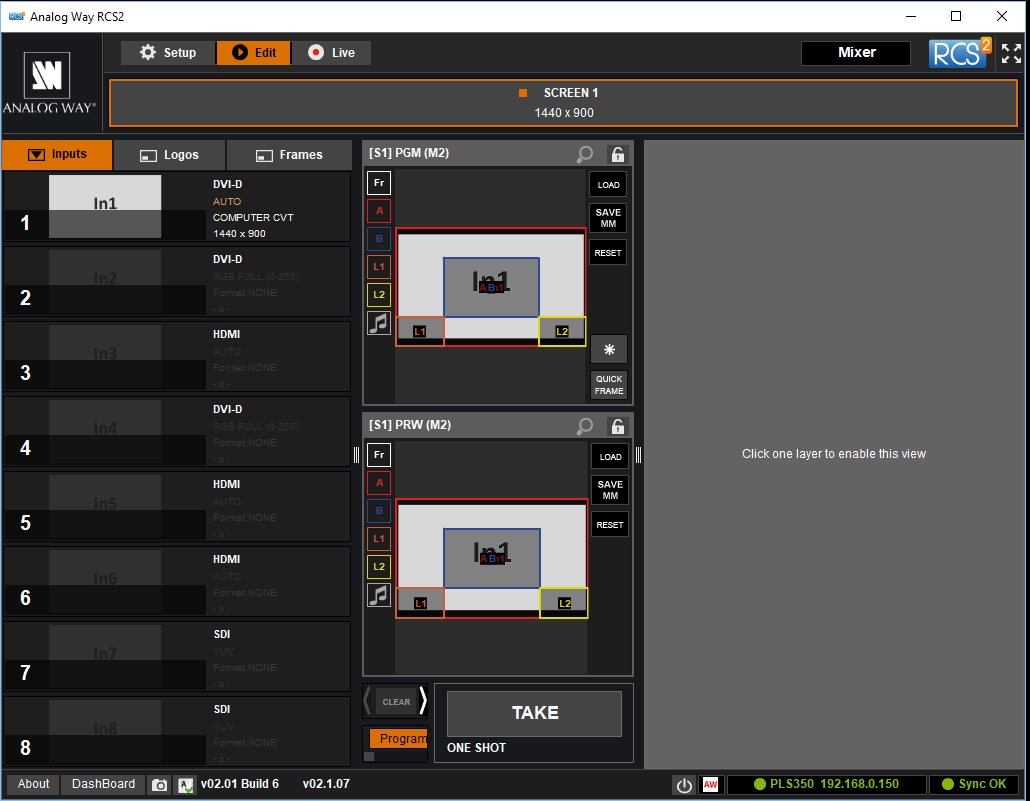

4. From the Edit page, create the Master Memories (different looks or presets) desired. You can create 8 Master Memories on this series.
• Examples: MM1 = Fullscreen DMP-8000; MM2 = Fullscreen video; MM3= L Bar video with DMP-8000
• Note that sources must be plugged in and active to be able to place them on a layer.


5. When you're done creating your Master Memories, close out of the RCS² program. The Midra Series processors only support a single simultaneous connection, meaning they will not respond to Show Control commands if it's already connected to the RCS² program.

Advanced ERTD Play scripts are used in Display Studio to send commands to the Midra Series video processors.

The two types of commands that will be used:

• Recalling memories to preview or program
• Take

The numbers in the commands are all 0 based, while the numbers we see in the software are 1 based. This means that when we mean to call Master Memory 3 that we programmed in the software, the number we are going to send in the command line is actually 2 (3-1=2). If we wanted to call Master Memory 1, we would send 0.

Recalling Memories to Preview or Program

Syntax: <scrnF>,<mem>,<scrnT>,<progPrev>,<fltr>,1GClrq

<scrnF>= Origin Screen (usually 0 because we typically only create one screen on this series)

<mem>= Master Memory

<scrnT>= Destination Screen (usually 0 because we typically only create one screen on this series)

<progPrev>= 0=program, 1=preview

<fltr>= Allows you to exclude some preset elements. Value 0 will include all preset elements.

Example: 0,0,0,0,0,1GClrq   -- Recalls Master Memory 1 to Program

Origin screen = 0
Master Memory = 0 (1 in the RCS² Program)
Destination screen = 0
Prog/Preview = 0 for Program
Filter = 0, include all preset elements

1. Choose System Control
2. Advanced
3. Play

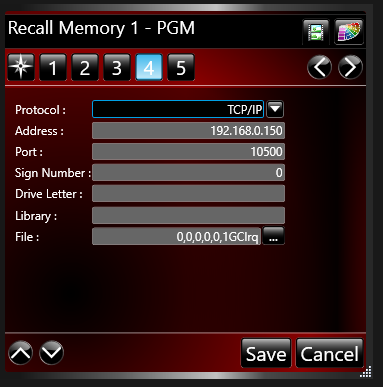

4. Choose TCP/IP, enter IP Address of processor, Port 10500, sign number 0, leave drive and library blank, enter the command line in the File section

5. Numbers of Times = 1
6. Be sure to repeat this line for the backup processor if there is one in the system. A quick way would be to copy/paste the first line and edit the IP Address.

To be able to take advantage of transitional elements between looks, you'll need to recall your memories into preview, instead of program, and perform the take command.

Example of recalling memory 1 into preview:

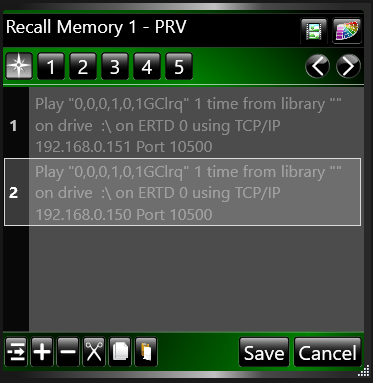

To do this, we change the <progPrev> value to 1:  0,0,0,1,0,1GClrq

The "TAKE" action allows transitioning, for a single screen, the "Preview" content (next state) to the "Program" (current state) using the current transition.

Syntax: <scrn>,1GCtak
<scrn> = screen (usually 0)

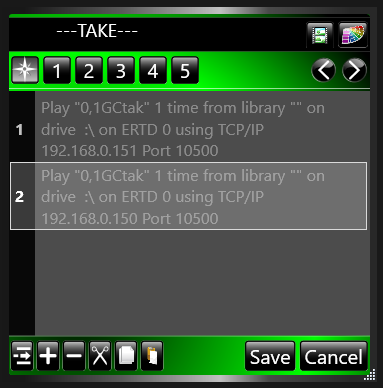

Follow the same steps as above to create an Advanced ERTD Play script, but use the "0,1GCtak" command in the file section of Step 4 (do not include quotation marks).

When operating, you'll press the button recalling the Master Memory into preview, and then hit the Take button to transition on the Master Memory.
