Advanced Option Under System Control is Missing from Display Studio

Potential Symptoms

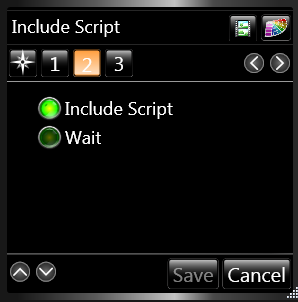

  • Advanced Option Under System Control is Missing from Display Studio when creating a button
    No Advanced.PNG

Environment

  • Product Family: Software, Control System
  • Product:
  • Component: Display Studio
  • Control System: Show Control System (SCS)

Cause

  • The Advanced option is not checked in Display Studio settings

Resolution

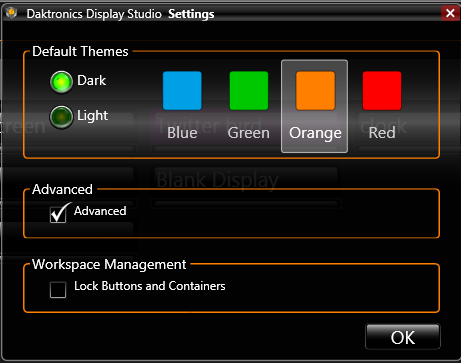

  1. Click the Display Studio icon in the top left corner
  2. Mouse over Properties
  3. Click Settings
  4. Check the Advanced box and click OK
    Display Studio Settings.PNG

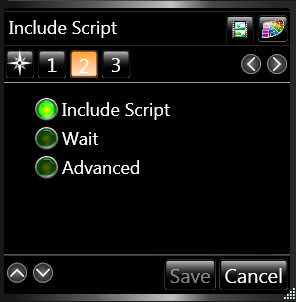

The Advanced option will now be available under System Control when making a new Scripting Container button.

  1. Right click in empty space of the Scripting Container
  2. Click New Button
  3. Click the + sign to add a line
  4. Click System Control
  5. Click 2 or >
  6. Advanced will now be an option

KB ID: DD3446767
