NovaStar: How do I configure screen connection in NovaStar, if display is divided into sections and ports?

Topic

  • How to configure screen connection in NovaStar if display is divided into several sections, and fed by different ports?

Environment

  • Product Family: Sender Box
  • Product: Nova MCTRL 600, Nova MCTRL 660, NovaStar VX4S, NovaStar brand sender box and receiver  cards
  • Components: NovaLCT-Mars
  • Control System: Market Standard or Limited Compliance using transmit common/open protocol
    • This includes but not limited to DVN-4003, Dragon Sticks, J Series, JVX, U Series, Q Series, QVN, Z Series, and ZPN.

Steps

  1. Physically connect the sending box and cabinets according to the drawing.
  2. In NovaLCT-Mars, enter advanced log in mode, Screen Configuration and Screen Connection.

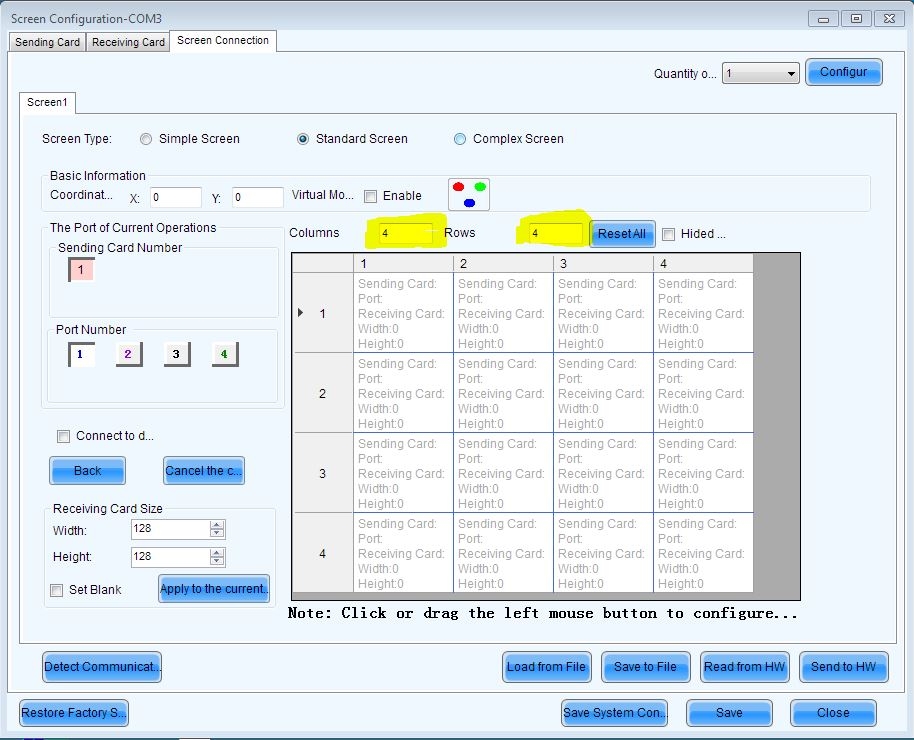

  3. Select the Standard Screen, enter Columns & Rows according the cabinet connection. It is whole screen size not section size.

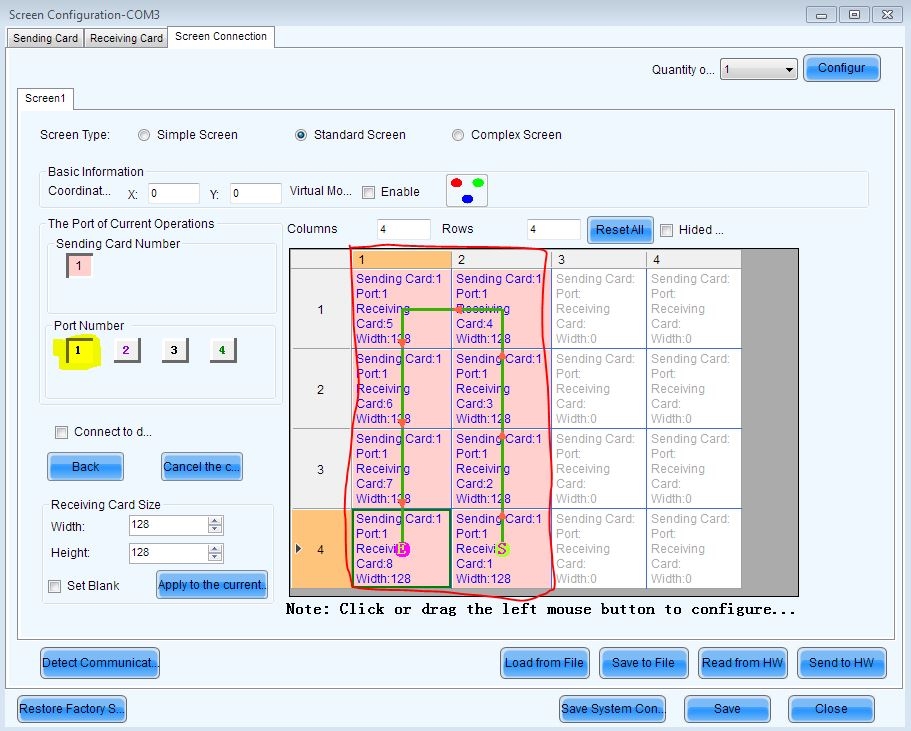

  4. Select port 1, and draw the connection from the first receiving card port 1 is connected.

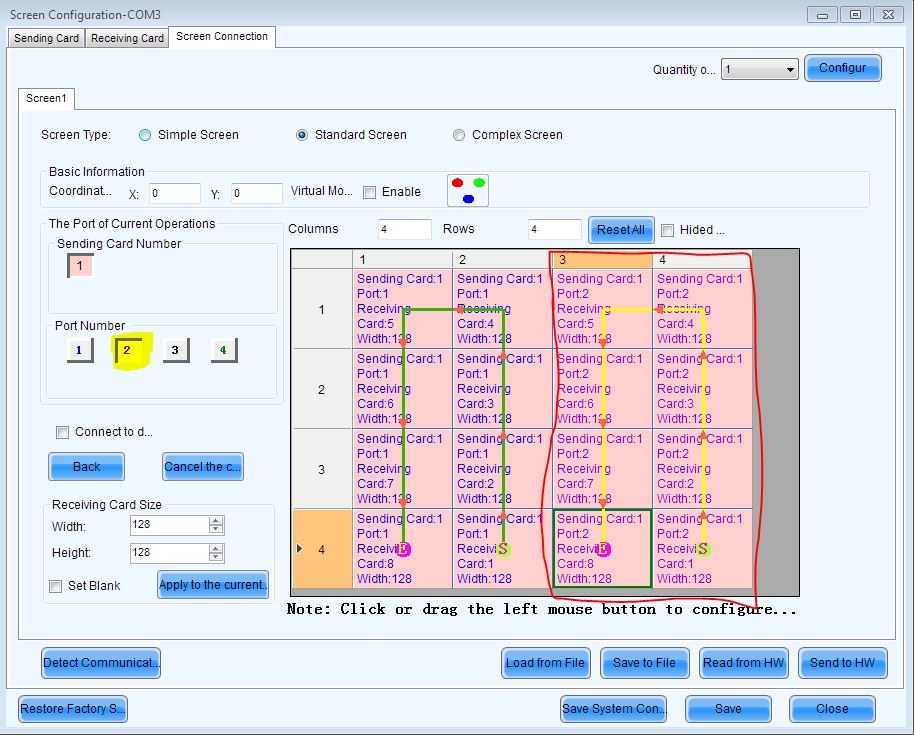

  5. Select port 2, and draw the connection from the first receiving card port 2 is connected.
  6. Make sure Receiving Card Size is the same as the pixel size in one cabinet, click Send to HW & Save.



KB ID: DD3438889
