Lantronix UDS 1100 diagnostic light on solid with blinking status light. Unable to communicate through the Lantronix box.

Potential Symptoms

  • Unable to communicate through Lantronix UDS 1100. Diagnostics light on solid with status light blinking.


Environment

  • Product Family: Control System, Software
  • Product: AF-30XX series, AF-31XX series, AF-32XX series, AF-34XX series displays
  • Component: Lantronix UDS 1100
  • Control System: Show Control System (SCS)

Cause

  • Diagnostics light on solid with blinking status light indicates an error code is being displayed.

Resolution

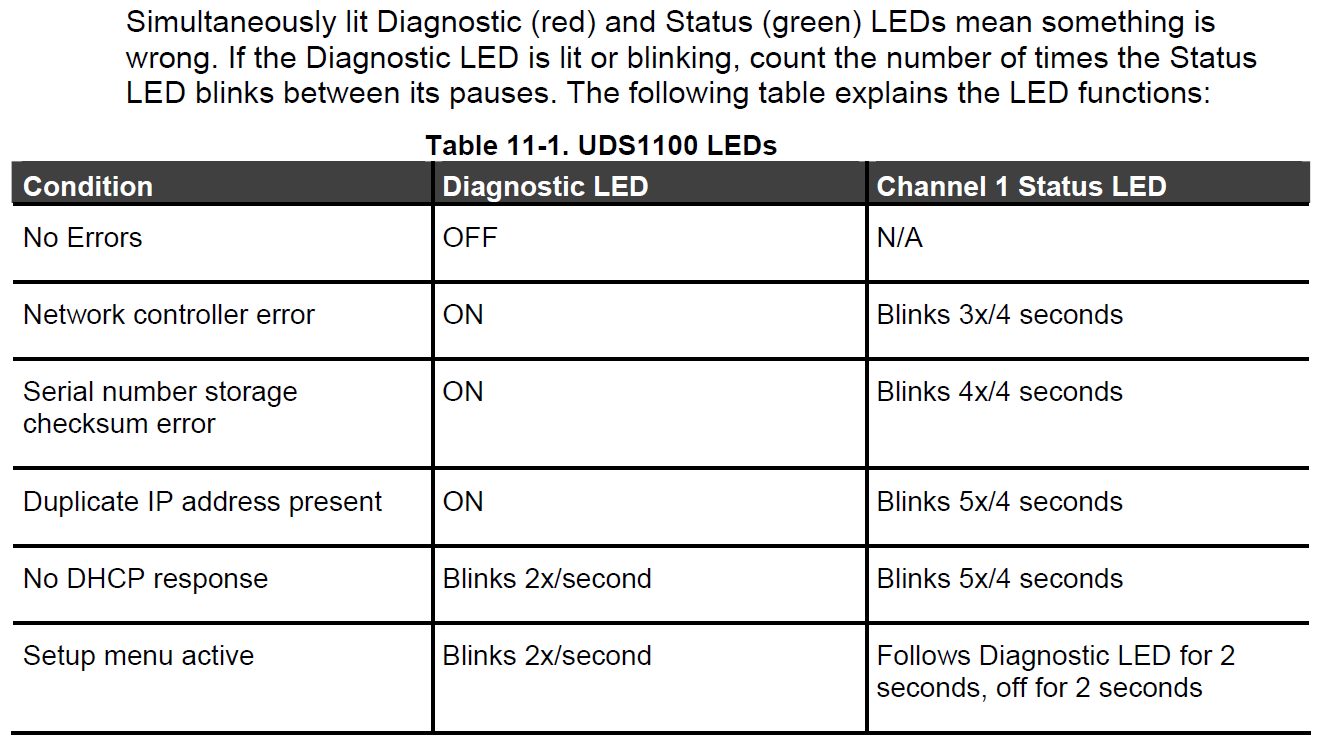

Reference chart below to determine what error code is being presented:

5-14-2018 5-33-12 PM.png

  • If Network controller error is issue power cycle router and see if communications are restored.
  • Note: If issue persists contact Daktronics technical support - 1-800-325-8766.

KB ID: DD3082305
