How do I configure color RTD mapping for DMP-8000 with Silverlight interface
Topic
- How do I configure color RTD Mapping for DMP-8000 with the Silverlight interface?
Environment
- Product Family: Control System
- Product: DMP-8000 (VNET) version 6.4-7.0 DSTI
- Components: Color RTD (Real Time Data) Mapping Configuration via the Silverlight interface
- Control System: Baseball, Motor Sports, NHL (see What Daktronics RTD Streams Offer Color RTD?, DD3082377)
For DMP-8000 version 7.00+, see How to configure color RTD mapping for DMP-8000 in the web interface.
Steps
- Log in to the web interface of the DMP 8000 you will be using for color RTD.

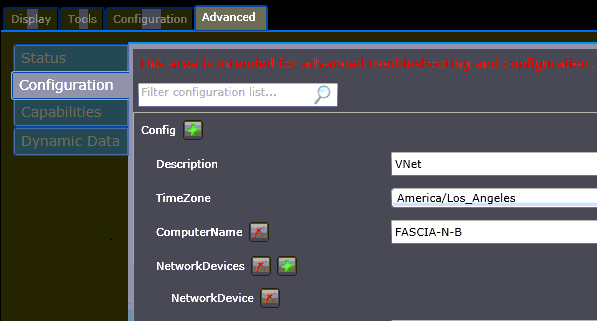

- Navigate to the Advanced Tab and then select the Configuration Tab.

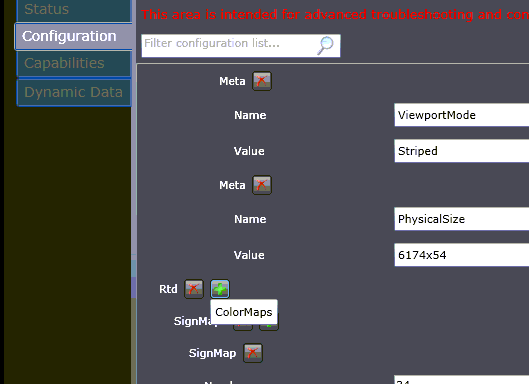

- Once in the configuration tab, scroll down until you reach the configuration section labeled RTD.

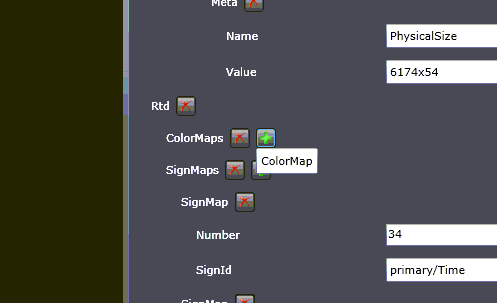

- Click the green + next to RTD and then select Color Maps.
- Click the green + next to Color Maps and then select Color Map.

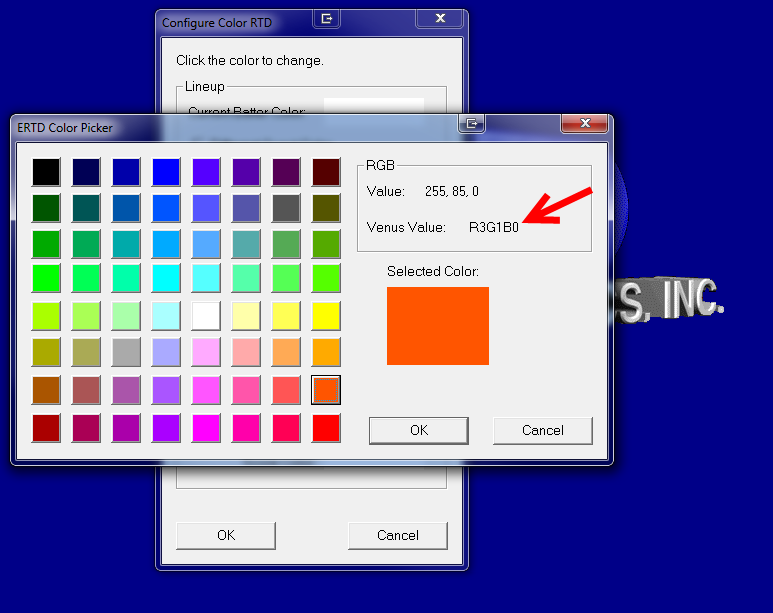

- In the "From" section, fill in the Venus Value provided from DSTI into the Red, Green, Blue fields for the color you will be changing the RTD information from.

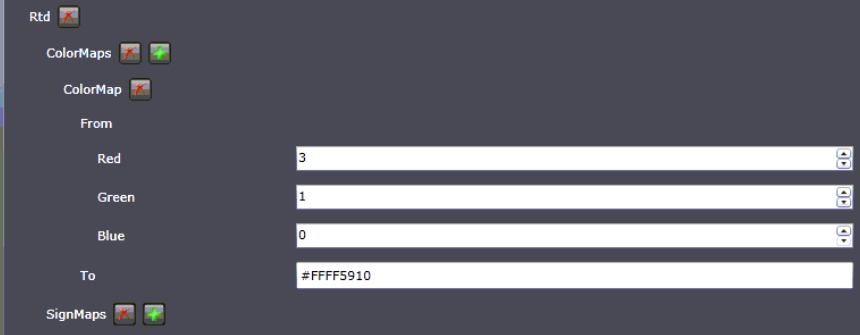

- In the "To" section, enter the hex value of the color you want to be displayed for Color RTD. You will want to add an additional FF to the beginning of your hex value to account for transparency values.
Note: You will have to type the hex value in notepad and copy/paste it into the space as the UX does not allow capital letters to be manually input.
Once the values have been properly set, send the configuration changes to save them.
Note: For additional help setting up the DMP-7000 or Show Control for Color RTD, please see How to Setup Color RTD in DSTI and Show Control?, DD3084380 and How to setup and use Color RTD in DSTI and Venus 7000, DD2214243.
KB ID: DD3027733
