RC-50: How to separate for individual control of TI-2025 or TI-2026 timers?

Topic

How do I separate my RC-50 handhelds for individual control of two or more TI-2025 or TI-2026 timers?

Environment

  • TI-2025 or TI-2026 Timers
  • All Sport 100
  • RC-50 wireless handheld

Steps

By default, when TI-2025/TI-2026 timers are shipped out the, RC-50s and the drivers have all dips witches disengaged on the both the driver and wireless handheld.  This means one handheld will control multiple timers by default.  If desiring to use one handheld per timer without interference, the following steps will need to be performed.

  1. Set a unique combination of dipswitch settings on each handheld (e.g. dipswitch 1 ON, everything else off on one handheld and all dipswitches left in the off position on the other); see FLR3-100 Unable to communicate with new remote, Incorrect dip switch settings in key fob, DD2554754 for diagrams.
  2. Open up a Timer by removing the 4 screws that secures the front/back panel.

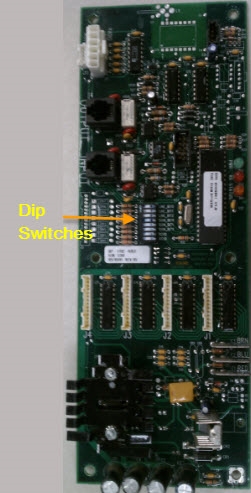

  3. Near the center of the driver, set the dip switches to match the handheld (e.g. if dip switch 1 is engaged on the handled, engaged dip switch 1 on the driver).

  4. Power up the timer and verify RC-50 radio handheld is able to control the timer.
  5. Power up other timers and verify each handheld is only controlling one timer.

KB ID: DD3000468
