Daktronics

How do I Setup the Hold Times for Cash-Credit-Debit Options for FL-3000/4500 displays using a Key Fob?

Topic

  • How do I Setup the Hold Times for Cash-Credit-Debit Options for FL-3000/4500 displays using a Key Fob?

Environment

  • Fuelight
  • FL-3000, FL-4500 (Firmware Rev 30 or higher)
  • Gas, Petroleum, or Fuel Price Display, FL digit product
  • FLR3-100 Key Fob (Wireless Communication Option)
  • Handheld, Remote

Steps

Check out the operational video! --> http://www.youtube.com/watch?v=vMk5hGrU0ag&feature=player_detailpage.

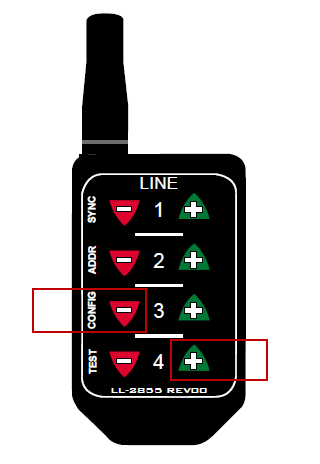

  1. Press and hold the down arrow (minus button) on Line 3 and the up arrow (Plus button) on Line 4 for about 5 seconds.  The below picture illustrates the buttons that should be pressed.
    Key Fob Hold Time Cash Credit.png
  2. The decimal point for the host driver will start to blink. When it starts to blink let go of buttons.  You will enter the cash/credit hold time configuration mode.
  3. Using the Down and Up arrow on line 1, change the hold time.  The default is 50 which equals 5.0 seconds.
    • The hold time can be set from 2.0 seconds up to 9.9 seconds.
  4. Press and hold the down arrow (minus button) on Line 3 and the up arrow (Plus button) on Line 4 for about 5 seconds to exit the Cash/Credit Hold Time configuration mode.

KB ID: DD2832588
