Setting up Multiple Multisport MS-2013 Scoreboards.

Topic

How can I operate multiple MS-2013s with one RC-100?

How can I operate multiple MS-2013s with multiple RC-100s?

Environment

  • RC-100
  • MS-2013

Steps

To have each board with its own remote:

  1. Put scoreboard 1 on channel 1.

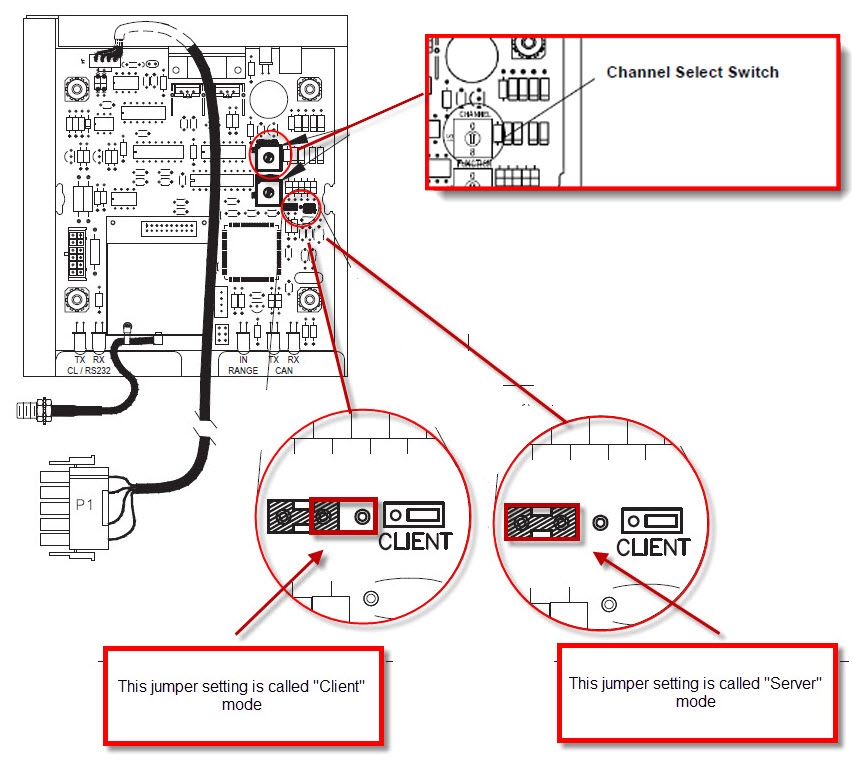

  2. Put scoreboard 1 jumper on "Server" mode.  (see picture below)
  3. Put scoreboard 2 on channel 2.
  4. Put scoreboard 2 jumper on "Server" mode.  (see picture below)
  5. Repeat steps 3 and 4 for additional scoreboards, just increase the channel by one.
To have multiple boards with one remote:
  1. Put scoreboard 1 on channel 1.
  2. Put scoreboard 1 jumper on "Server" mode. (see picture below)
  3. Put scoreboard 2 on channel 1.
  4. Put scoreboard 2 jumper on "Client" mode. (see picture below)
  5. Repeat steps 3 and 4 for additional scoreboards.

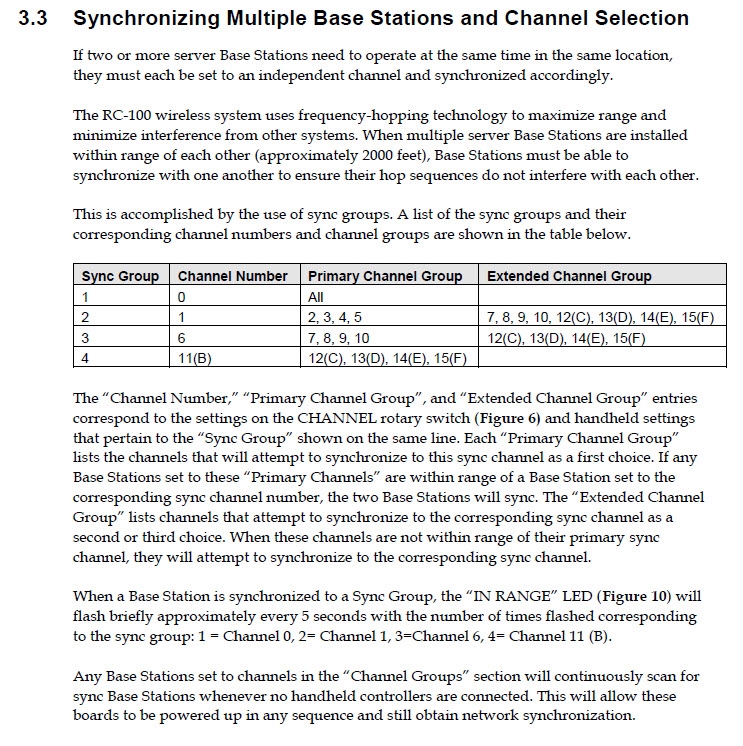

Also refer to section 3.3 from ED-15133 RC-100 Manual (All Sport) which describes how multiple base stations sync with each other.
