Unable to retrieve status of display, incorrect fiber connections

Potential Symptoms

  • Unable to retrieve status with Venus 1500, but may be able to send test patterns or send messages.
  • TX light may stay steady ON on the indoor fiber media converter.
  • Venus 1500 V4 - may show No Response in alerts

Environment

  • Galaxy
  • Serial Fiber

Cause

  • Fibers on the fiber serial card at the display are connected incorrectly.
    • Examples of incorrect fiber connections:

 Serial Fiber Wrong.pngDD2658717.jpg

Resolution

  • Move the fiber from the outputs (J3, J2) to the inputs (J5, J4) on the fiber card.  See the detail below.

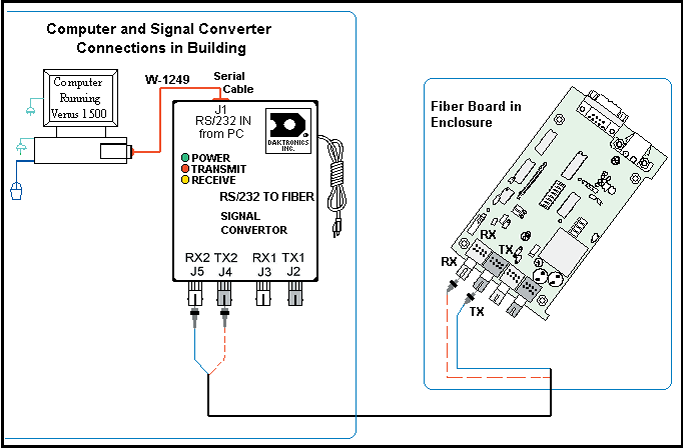

    Serial Fiber Card.png
Refer to the Installation manuals for more information.
