Display Modules: How do I perform self test on a PL5X series module?

Potential Symptoms

  • Self test on a PL5X series module

Environment

  • Product:  DB-4000, DB-4100, DB-4200, DB-5000, DB-5100, DB-6000, DB-6400, GPC, GP3, GP4, GS6, GC6, GT7
  • Component: Module
  • Control System:

Resolution

  1. Connect a SATA cable from port A to B on the back of the module.
  2. Cycle power to the module by unplugging power from the module and then plugging it back in.
    • NOTE: It may take up to 5min for the self test to start.

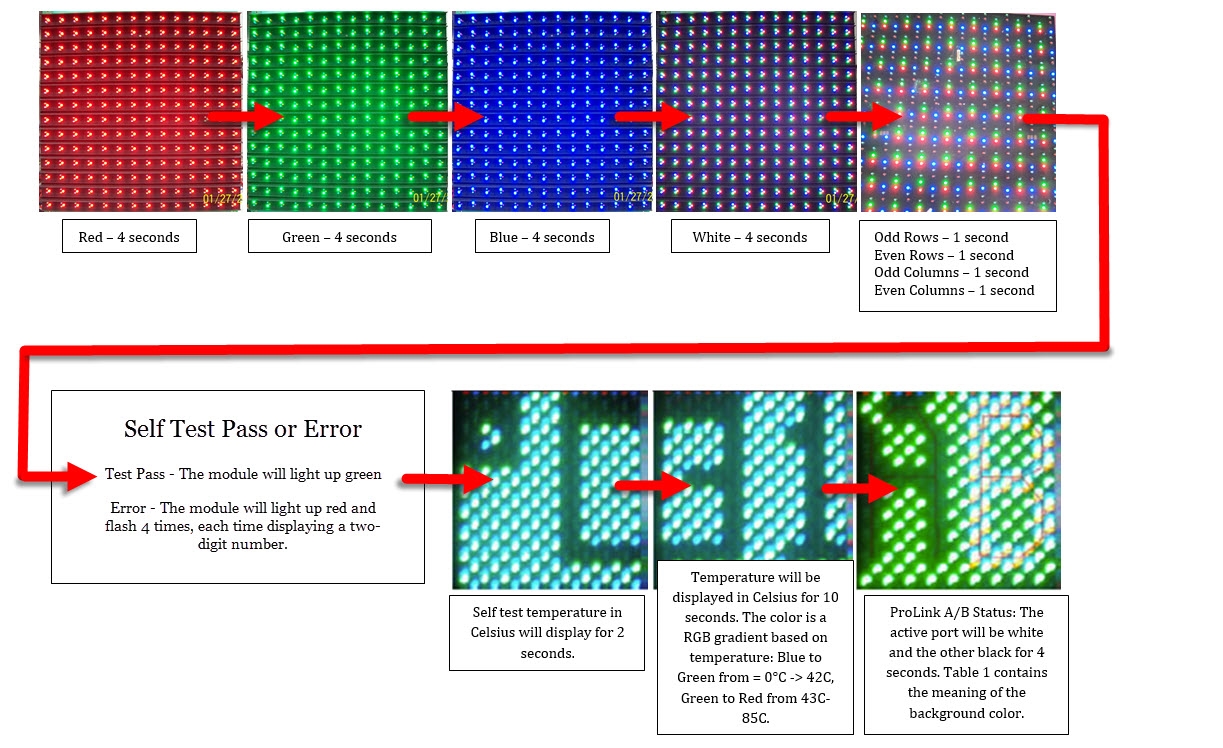

  3. Module will reboot into test mode and display the following sequence: red, green, blue, white, even/odd rows and columns, module system error flags, module PCB temperature, and ProLink A/B status.  Test should be allowed to cycle through at least 5 times and will show Pa in the system error flag slot if no problems are found
  4. If an error code is given (set of 4 two digit codes) contact Daktronics Technical Support for resolution information.
Module self test.jpg

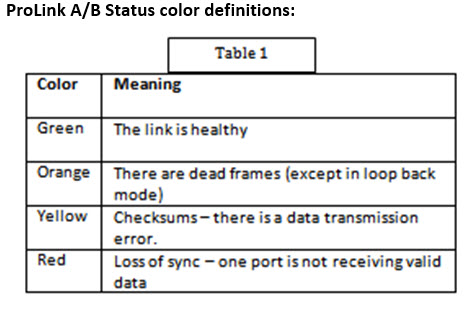

Table 1


KB ID: DD2045934
