Client Ethernet bridge radio (EBR) has no power, no communication; Failed Client Radio

Potential Symptoms

  • Unable to communicate with display using Ethernet Bridge Radios (EBR).

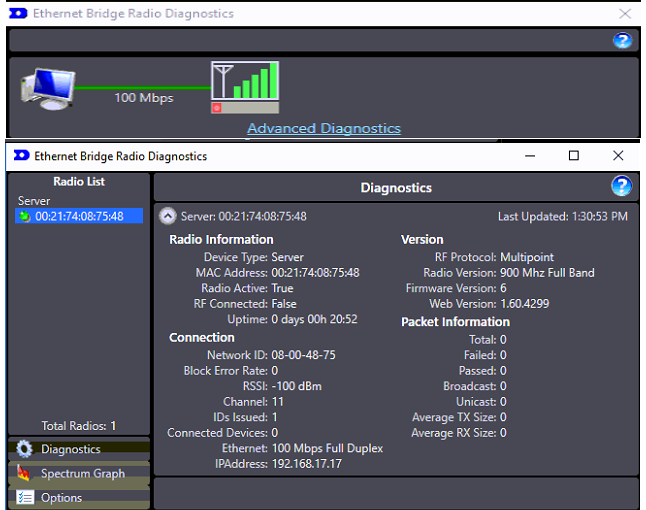

  • Client radio is not showing up in EBR diagnostics.
  • Client radio not powering up though it is being provided sufficient voltage(12-15VDC) from the display.

Environment

  • Product: AF-3500, GS6
  • Component: Ethernet Bridge Radios (EBR)
  • Control System:

Cause

  • Failed client radio.

Resolution

  • Replace the EBR's.

KB ID: DD1993462
