RC-100/RC-200:How do I change radio settings on the base station?

Potential Symptoms

Where do I find the broadcast and channel on the RC-100 or RC-200 base station in my scoreboard?

Environment

  • Product: Scoreboard
  • Component: RC-100 / RC-200 Base Station Receiver
  • Control System: RC-100, RC-200

Resolution

  1. Locate antenna on display.
  2. Open display and follow cable from antenna to base station.
  3. Open the cover of the base station box by using a precision philips head screwdriver on the four screws
  4.  RC 200 top cover.png
  5. On base station select a new channel. (channel and broadcast if RC-200)

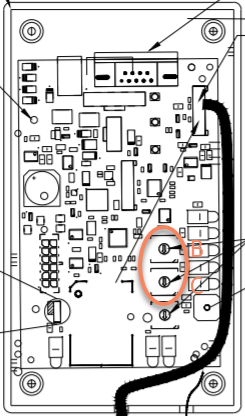

    • RC 200 bcast chan dials.png
  6. Match RC-100/200 handheld to the same radio settings that were selected on the base station.

KB ID: DD1993017
