Galaxy: How do I Add a Secondary IP Address to a Computer?

Potential Symptoms

  • How do I add a secondary or alternate IP address (network tunnel) to a Windows computer?
  • How do you create a Network Tunnel to communicate to EBR Radio's or a Display with a different IP over a Network?

Environment

  • Product:
  • Component: Windows computer
  • Control System:

Resolution

  1. To begin, ensure that your display is plugged in to the same network switch as the computer. The display's IP settings will be on the secondary network.

    1. The computer will also need a static IP address that is not on the sign's default IP range. (The DHCP (automatic) address can be used for the computer's static IP address, discussed in Step 3.)

  2. Navigate to the "internet protocol TCP/IP" properties section of your network adapter.

    1. Open the "START" Menu.

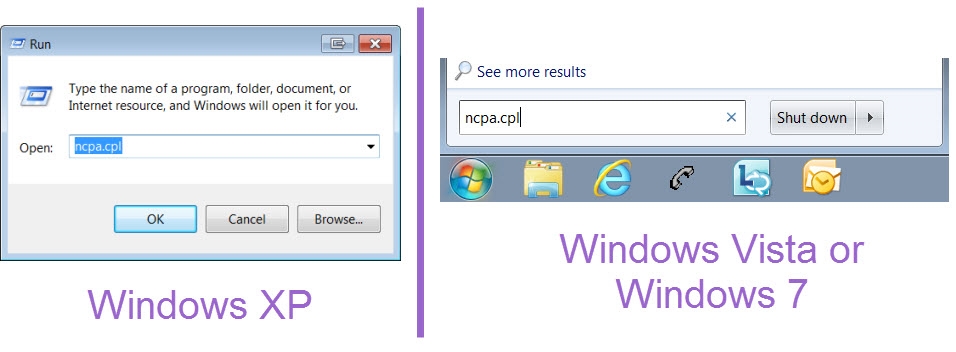

    2. In Windows XP: click on "RUN" and type "ncpa.cpl" (this is not case sensitive).
      If using Windows Vista or 7: after hitting the "START" icon, type "ncpa.cpl" into the search bar above the "START" icon.

    3. Find the "Local Area Connection" then right-click on it.

    4. Click on "Properties".

    5. In Windows XP: you will double click on "Internet Protocol (TCP/IP)".
      In Windows Vista and Windows 7: you will need to double click "Internet Protocol Version 4 (TCP/IPv4)".

  3. Verify that the radial next to "use the following IP address" is selected and that a static IP is entered.

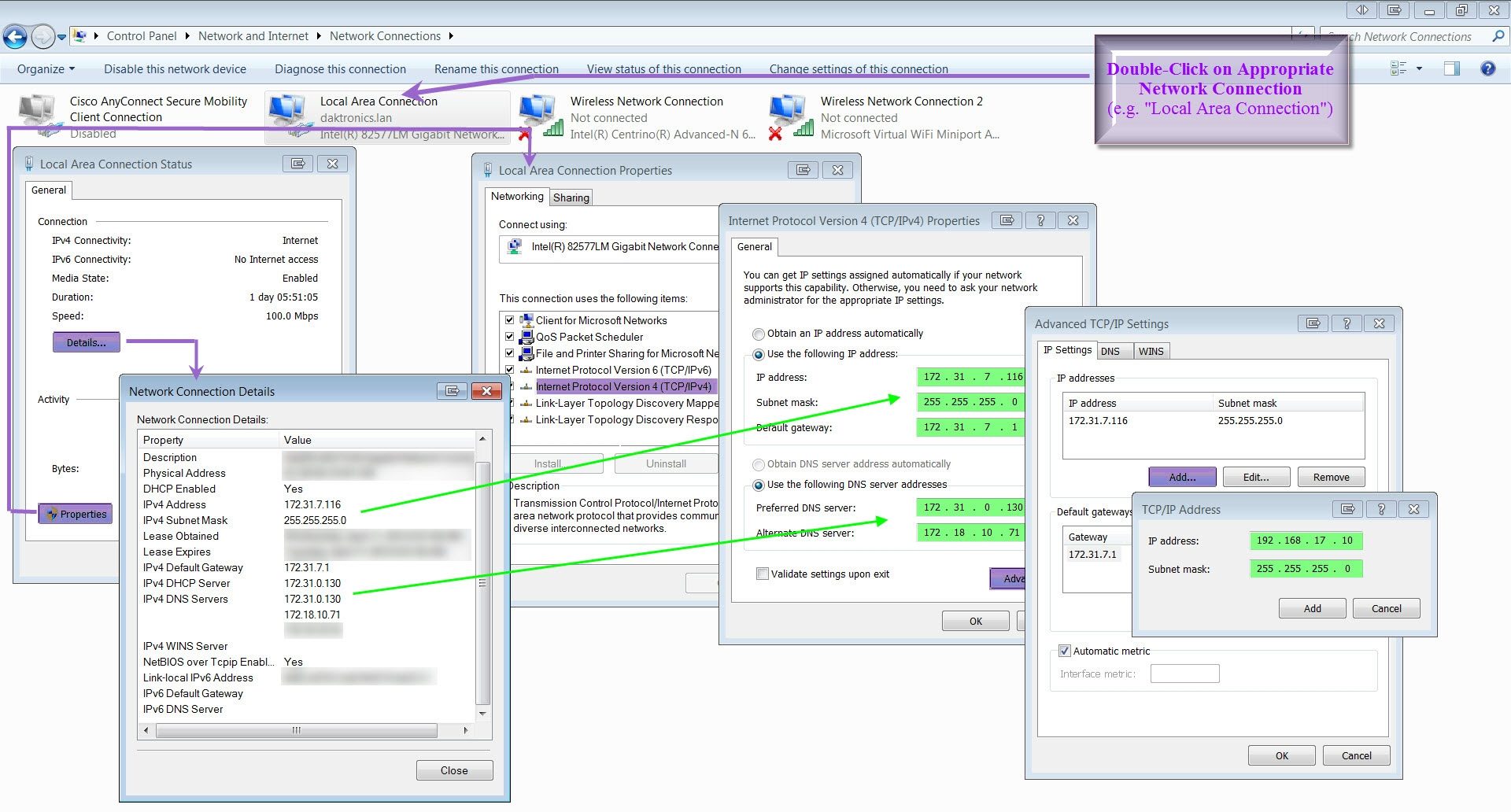

    • If there is no static IP, set the static IP, subnet, gateway and DNS information according to what is found from double-clicking the network connection of concern (e.g. "Local Area Connection"), and click on the "Details" button (in Windows XP, the "Details" button is located on the Support tab).

  4. Click on "Advanced" near the bottom of the "Internet Protocol (TCP/IP) Properties" window.

  5. Click on "Add" under the IP addresses section at the top of the window.

  6. Enter an IP address and subnet mask that is on the secondary network you wish to communicate with, but not the same IP address as the display.

  7. Click "add" on the "TCP/IP Address" window.

  8. Return to desktop.

  9. Click "OK" at the bottom of the "Advanced TCP/IP Settings" window.

  10. Click "OK" at the bottom of the Internet Protocol or Internet Protocol Version 4 Properties window.

  11. Click "OK" at the bottom of the Local Area Connections Window.

  12. Close the Network Connection window.

KB ID: DD1990270
