Galaxy: How do I change the IP address settings on a message center?

Topic

  • How do I change the IP address settings on a GP3, GP4, or GPC display?
  • How do I set a static IP address on a GP3, GP4, or GPC display?

Environment

  • Product: GalaxyPro, GP3, GP4, GPC
  • Component: DMP-4060, DMP-8000, DMP-8065, DMP-8060, Daktronics Remote Display Configuration (DRDC)
  • Control System:

Steps

Step 1:  Access the configuration page for the display.

  1. Make sure Java and Silverlight are installed and updated.
  2. Open a web browser.
  3. Type the IP address of the display in the address bar.
  4. On the remote display configuration screen type the password for the display in the box.
  5. Click on the Log In button to access the display configuration.

Step 2: Change the Network settings to the desired IP settings.

  1. Click on the Configuration tab and then select Network.
  2. Change the active port (default is Port 1) that is being used to the desired IP address, subnet mask, and default gateway.

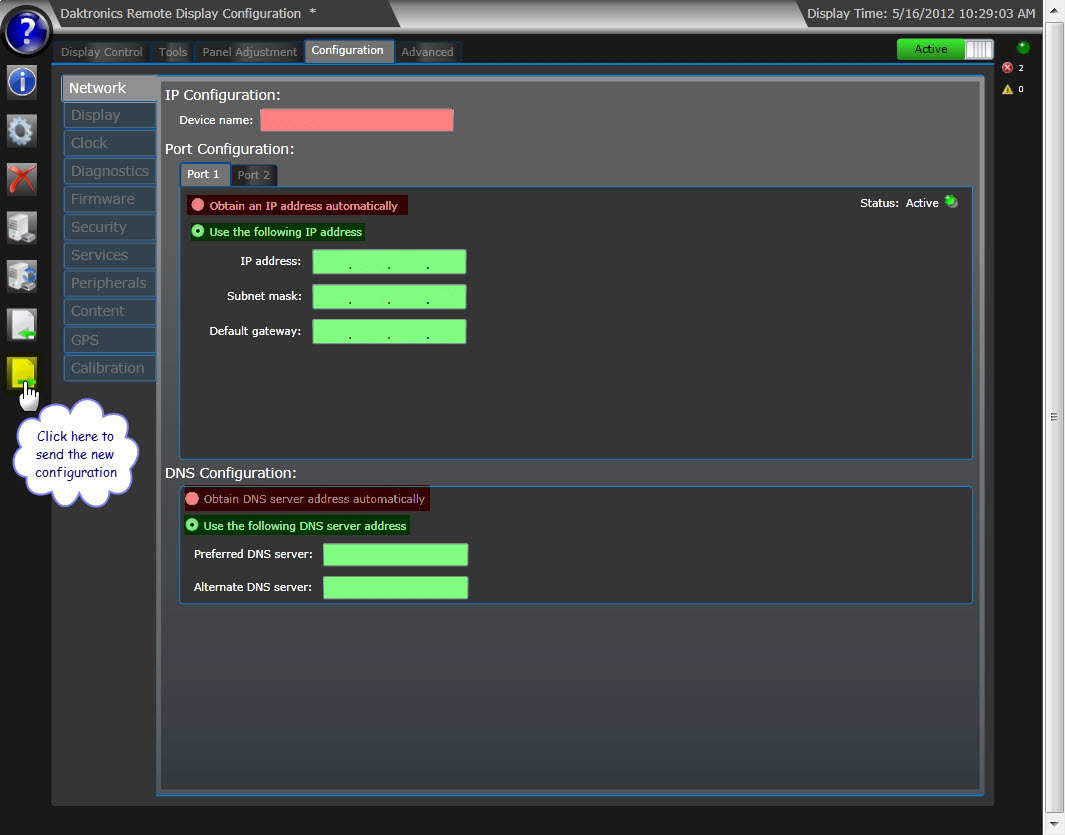

  3. Click on the Send Configuration button on the left toolbar. (See screenshot below).
  4. Log out of the web interface by clicking on the red X on the left toolbar.


Refer to the Installation Quick Guides for more information.

KB ID: 000029289
