Content Studio: How do I create a presentation that shows hockey players game ice time

Topic

NHL hockey player ice time

Environment

  • Product:  Content Studio
  • Component: Data Studio Hockey (NHL)
  • Control System:  Show Control System

Steps

Use the arrows to open or collapse the following sections.

Getting started resources

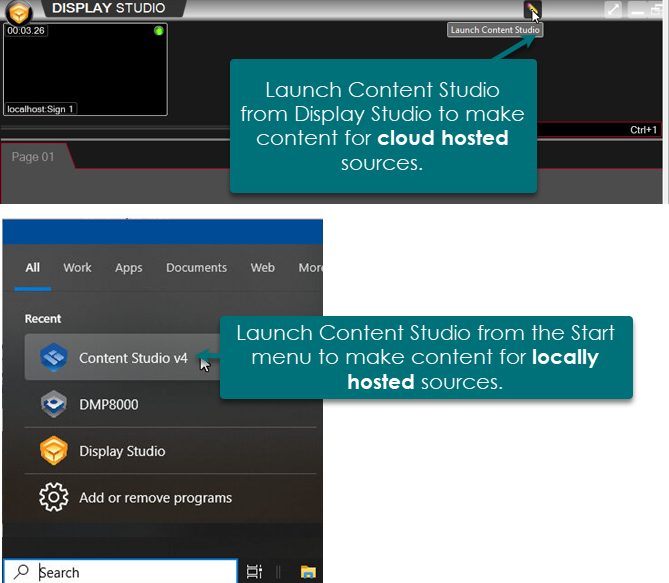

NHL Hockey uses a cloud hosted source.  Open Content Studio from the pencil icon.




Begin with an existing or new presentation in Content Studio. Content Studio: How do I create presentations with data elements?

Import any background images. Content Studio: How do I import images or videos?

Content Studio: How do I create presentations with data elements?

Show Control System: How do I create content with sport media RTD fields?

Content Studio: How do I loop sport media RTD

Create the first row of data or first record.

Note: It is important to get the first row configured completely before moving on to make a list.

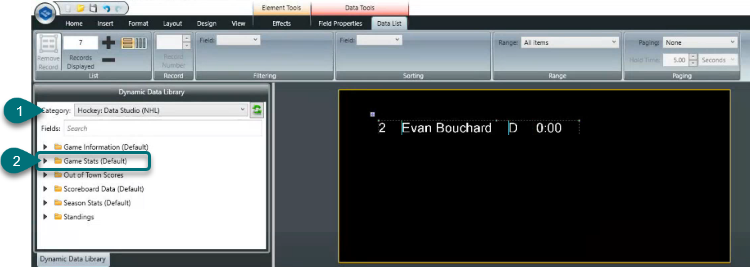

  1. In the Dynamic Data Library locate the Hockey Data Studio (NHL) category.
  2. Navigate to Game Stats > Home> Roster 1.


  1. Click and drag the following elements into your canvas.  (Text headers can be added after the list is created or they can be a part of the background image.)
    • Jersey
    • Full Name
    • Position
  2. Space the elements out in one row.  Be sure to leave space for longer names, double digits, etc.  For names, consider the shrink to fit option.  Content Studio: My text appears to be cut off or does not shrink to fit in the element
  3. Navigate to Game Stats > Home > Roster 1 > Game Stats > Shifts > Current > Time.
  4. Click and drag Time onto your first row on your presentation canvas.  (The formatted time is often preferred over total seconds.)
  5. Finalize the first horizontal row of the data elements.
    1. Use the alignment tools to create an accurate row. Content Studio: How do I align my elements
    2. Configure the elements to be media rtd if needed.
    3. Adjust the font and text colors as needed.

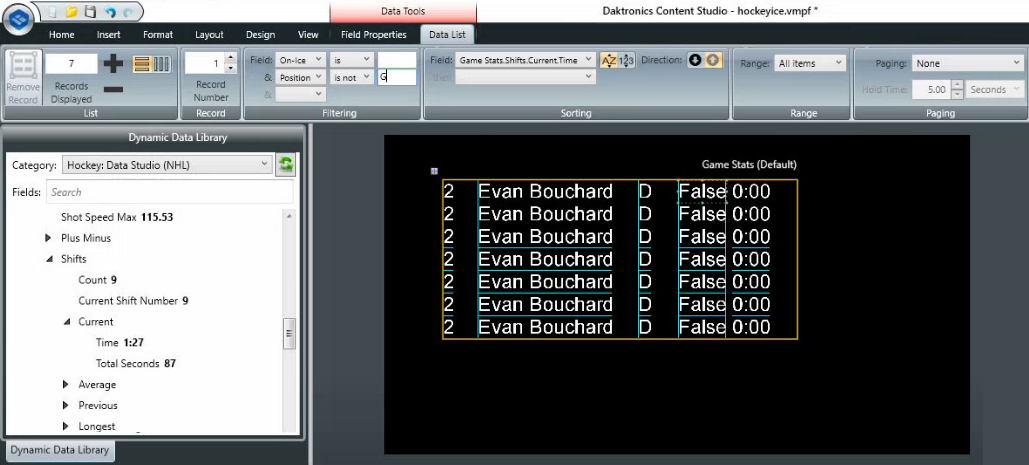

Complete the list with Data Tools.

Select the row of data elements and select the Data List tab.

  1. Create records for each player on the ice.  Content Studio: How do I make content that pages data?
  2. Filter the list to show players on the ice and do not show the goalie.  Content Studio: How do I create filtered and sorted data lists that compare player information?
    • Field: On-Ice is True & Position is not G.
  3. Sort the list to show the players with the most ice time at the top.
    1. Field: Game Stats.Shifts.Current time / Direction: descending 🔽.
  4. Set the Paging to none
  5. Preview and Save.


Additional Resources for adding data elements to your presentations:

Show Control System: How do I create content with sport media RTD fields?

Content Studio: How do I create content that shows headshots via sport media RTD?

Content Studio: Which Data Paging Modes are Available
