All Sport Pro: How do I configure an ERTD feed?

Topic

ERTD values in All Sport Pro

Environment

  • Product:
  • Component: All Sport Pro ERTD
  • Control System: Venus Control System

Steps

Click on the arrows to expand each section.

All Sport Pro / Data Studio Configuration

Connect All Sport Pro to Venus

  1. Navigate to the top left menu > Settings > Data Studio Integration
  2. Enter credentials.  The address should connect to the account in Venus.

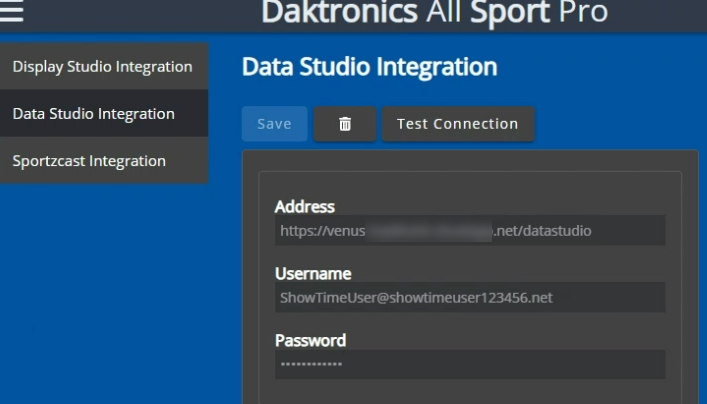

Screenshot 2024-06-13 133332.png

Scoreboards

Determine ERTD value.  - This will also determine the feeds created in Data Studio.

  1. Navigate to the top left menu > Scoreboards.
  2. Create a new scoreboard or edit an existing.  All Sport Pro: How do I configure a scoreboard?
  3. Verify the ERTD value.

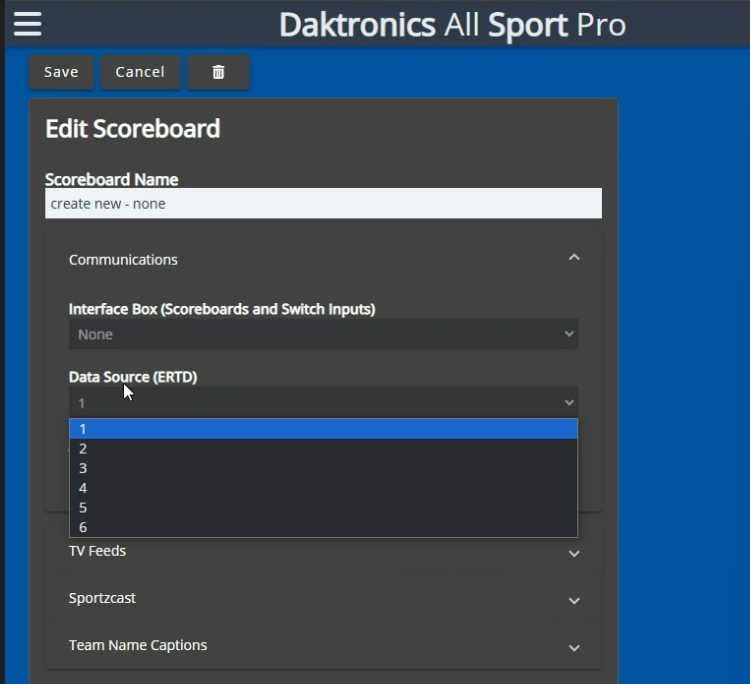

Screenshot 2024-06-13 133413.png

A corresponding feed in Data Studio will be created for each ERTD value.

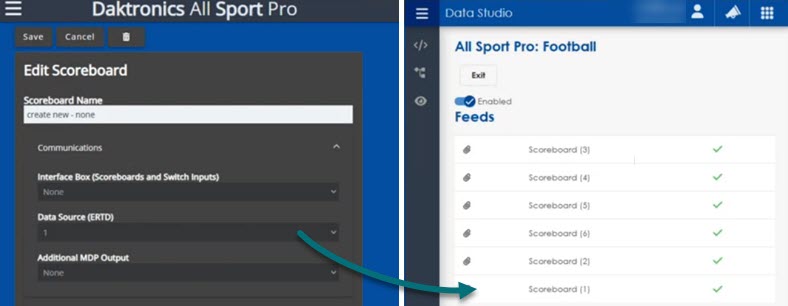

Screenshot 2024-06-13 133532.png

Content can be created in Content Studio. Show Control System: How do I create content with sport media RTD fields?- seen in the football possession indicator below.

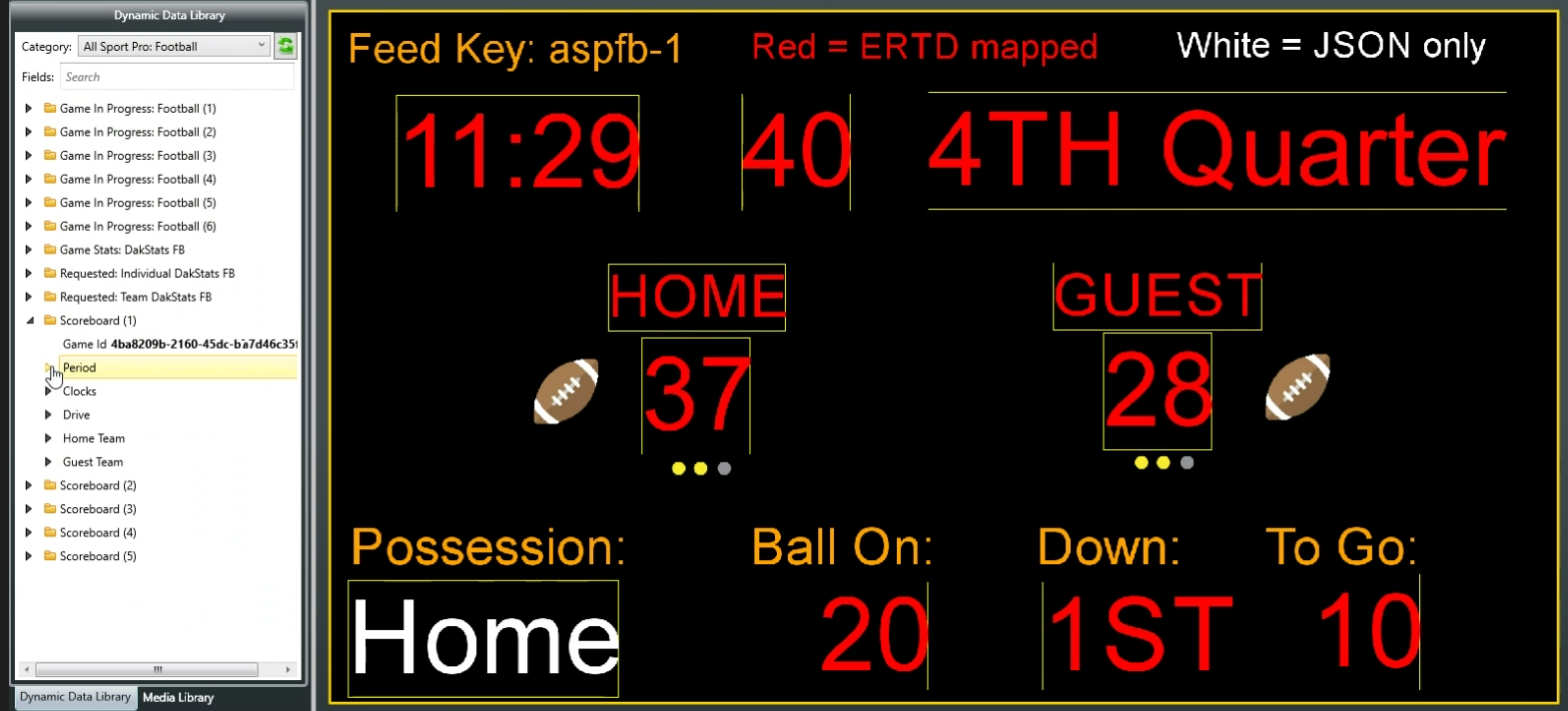

Screenshot 2024-06-13 133651.png

Content mapped to the feed can be used to make data elements.

Content Studio: How do I create presentations with data elements?
Content can be created in Venus Web Editor.

Web Editor

Venus Web Editor: How do I create a presentation using the Venus Control Suite?

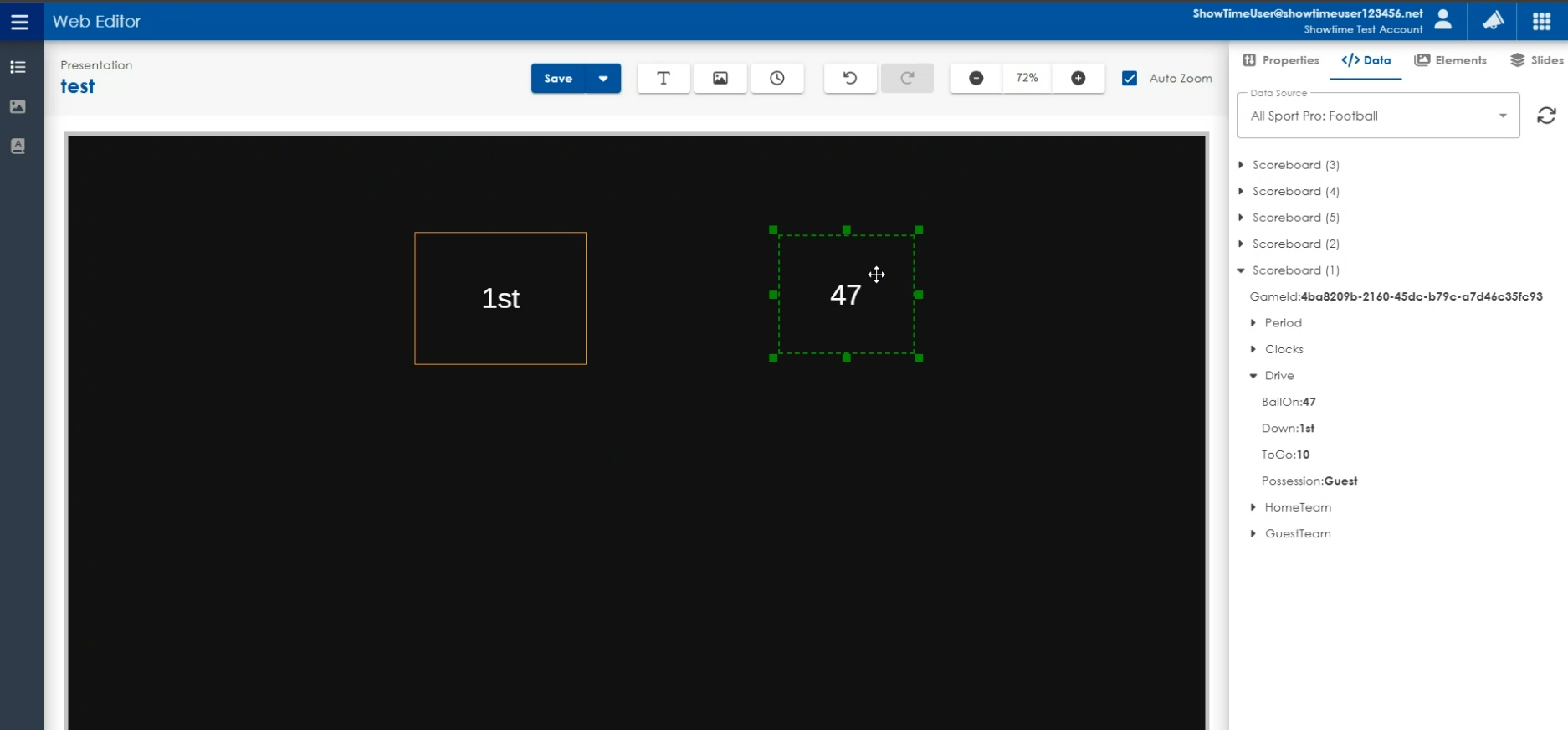

Screenshot 2024-06-13 140615.png



KB ID: 000028664
