Data Studio: Unable to add a cloud drive source, error "We're unable to complete your request"

Potential Symptoms

  • Trying add a Cloud Drive Source gets an Error in the Browser:  `"We're unable to complete your request"`

Example of error listed below:

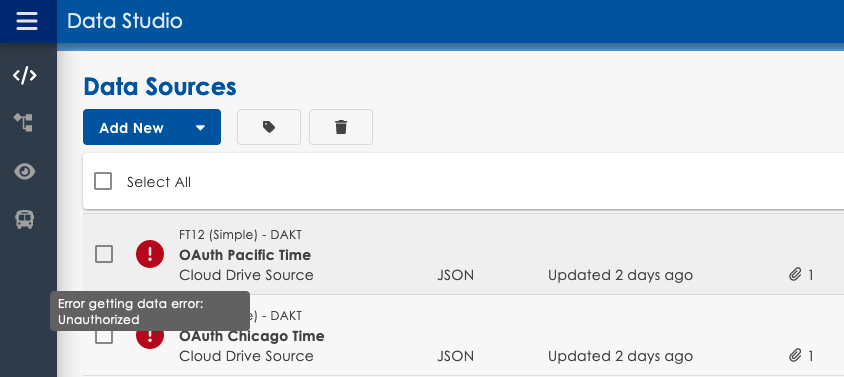

Error on Cloud Drive Sources page.png

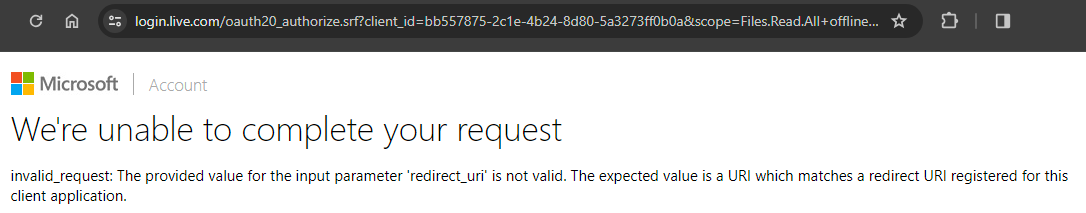

DS-OAuth redirect_uri Error.png

Environment

  • Product: Data Studio
  • Component: Cloud drive as a data source
  • Control System: Venus Control Suite cloud hosted

Data Studio employs OAuth to ensure a secure connection throughout this workflow.

Cause

When trying to access Data Studio from a different computer than the one with VCS installed (such as `SCS-P`), and the VCS computer name is `VCS-BBall` (as opposed to the standard `venus-p`), there is a challenge.

The Data Studio App Registration in the Azure Portal contains a list of valid Redirect URIs, but it cannot accommodate a machine-name based URI for every custom VCS computer name for an on-premises instance (like `VCS-BBall`).

    • 🟢 https://localhost:32851/datastudio/sources
    • 🟢 https://venus-p:32851/datastudio/sources
    • ❗ https://VCS-BBall:32851/datastudio/sources

Resolution

  • Create the source directly on the computer with `Venus Control Suite` installed.
  • Switch to the Venus computer on the KVM or use VNC to remotely access the Venus computer.

Related Resources

Data Studio: How do I grant access for my cloud drive source

Data Studio: How do I integrate with a cloud drive data source.

KB ID: 000028608
