Venus Displays: How do I reset my display in Venus Control Suite

Topic

  • How do I reset my display in Venus Control Suite?
  • What steps to take to restart my display in VCS?
  • Can I reboot my display in VCS?

Environment

  • Product: Venus Control Suite
  • Component: Venus Pro Ad Grid, Venus Pro Playlist, Venus Prime
  • Control System: Venus Control Suite Local

Steps

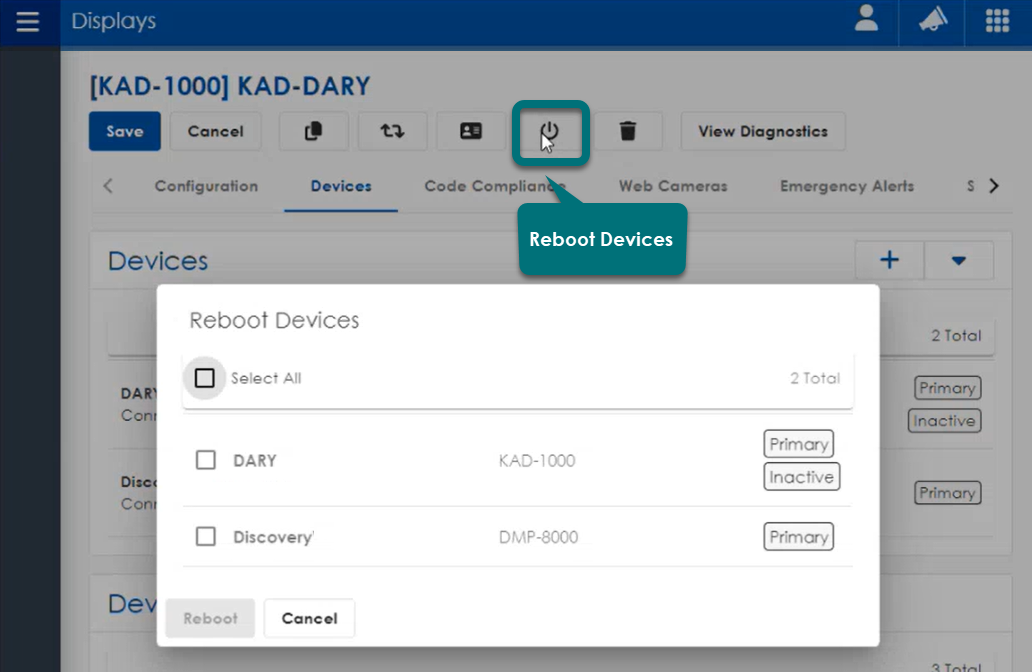

Reboot devices via Displays App

  1. Log on to Venus Control Suite and select the Displays App.
  2. On the Displays page, select your display.
  3. Click on the power reboot button. This will open a window with a list of associated devices.
  4. Pick the device(s) and choose reboot.

Screenshot 2024-08-26 094214.png

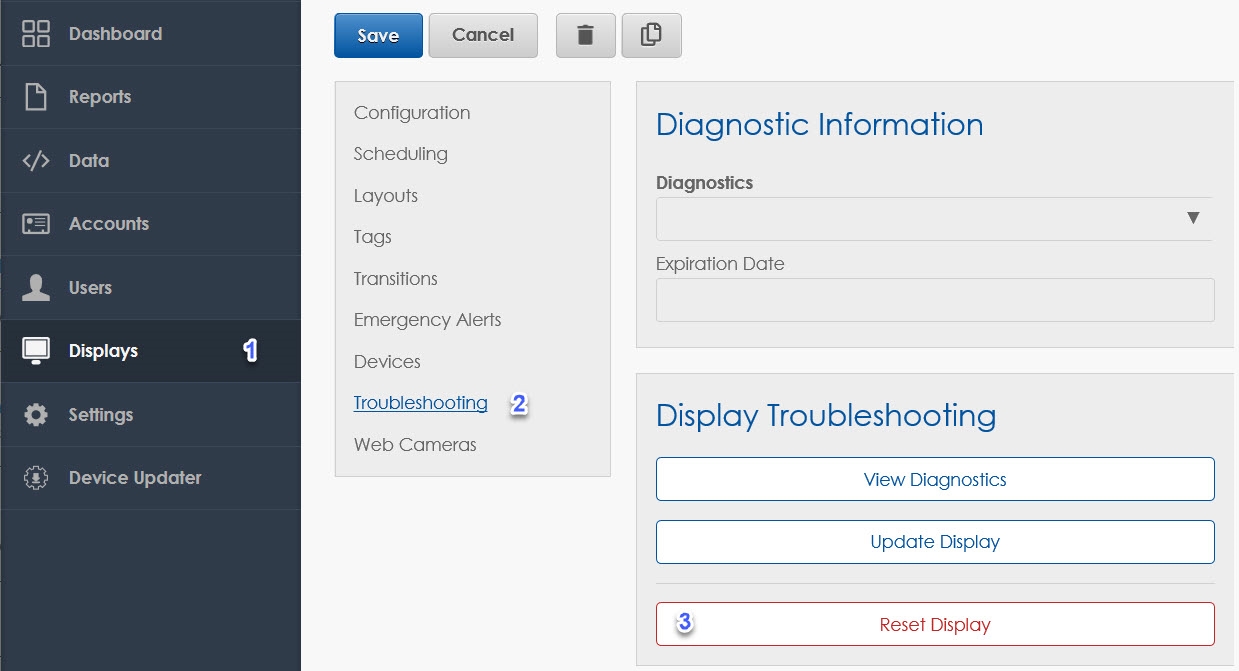

Legacy method/ local systems

  1. Go to the Venus login page and enter your credentials.
  2. From the Venus Launchpad, click on the "Venus" app.
  3. Click the three-bar icon in the upper left and select "Displays" from the left menu.
  4. Click "Troubleshooting" from the sub-menu.
  5. Click "Reset Display."


KB ID: 000028323
