Data Studio Football: How can I play test data to verify my content?

Topic

  • Sample game replay
  • How to verify and test data coming from Data Studio Football to the displays
  • This can be done as a part of pre-game check for NFL and NCAA data related content.

Environment

  • Product: Data Studio Football
  • Component: NCAA Football replay - 2024-2025 season
  • Control System: Daktronics Football System

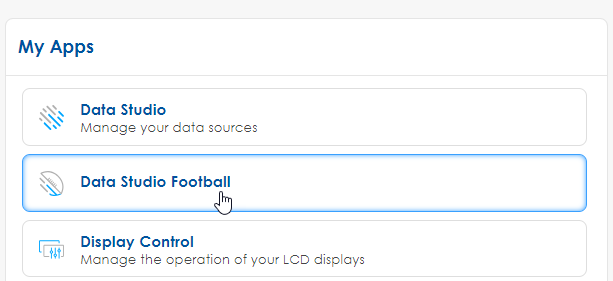

my apps_ds football 3.jpg


Steps

  1. Log into Venus Control Suite.
  2. On the Launchpad or in My Apps, click the Data Studio Football icon.

Create the game replay

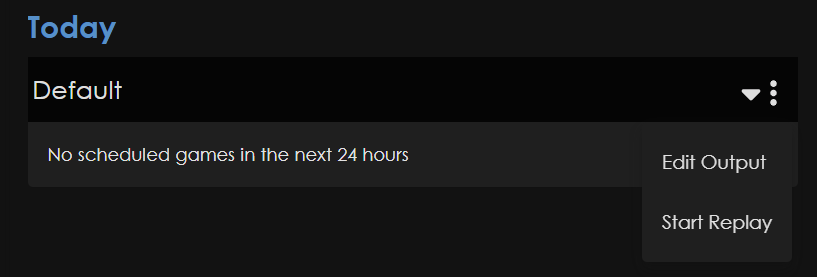

  1.  Navigate to the Stats Dashboard via the left sidebar.
  2. Under your provider, click ▼ and choose Start Replay.

Screenshot 2024-02-26 142346.png

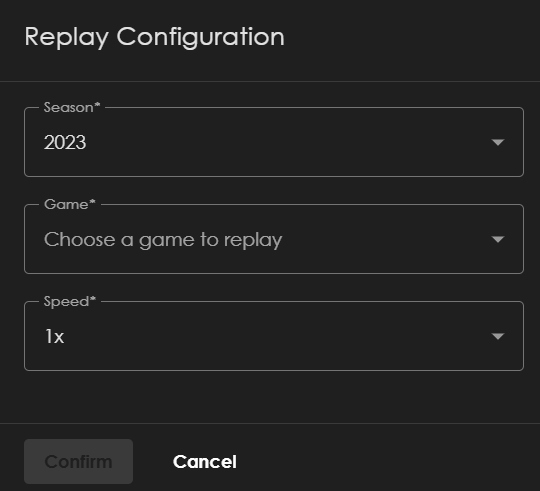

  1.  Enter the desired season, game, and speed for the replay data.

Screenshot 2024-02-26 143649.png

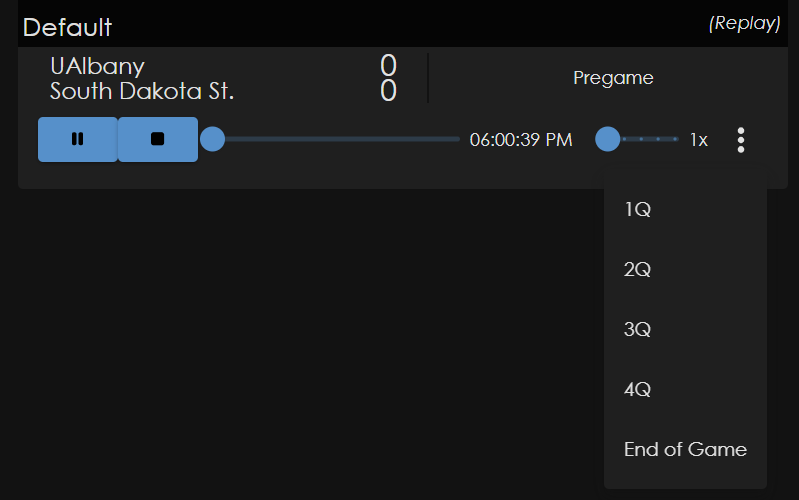

  1. The statistics will replay through the game.  This data can be now used to test out game graphics.
    • Use the replay menu to navigate to different impactful points of the game to see the data change.

Screenshot 2024-02-26 140245.png

  1. In the replay window, the buttons act as follows:
    • pauses the data.
    • stops the data from updating. Note: Pressing stop will not clear the data. It stops it from updating.
    • allows the user the scrub through the time of game.
    • allows the user to change the speed of the incoming replay data.
    • allows the user to skip to another quarter or the End of Game.

Replay data and game day feeds can be verified in the Data Studio app: Data Studio: How do I verify my feed for sports?

KB ID: 000028262
