How to add Pitch Clock Source to Baseball Profile; Using Profile Editor

Topic

  • How do I get Pitch Clock data on my video board.
  • Pitch Clock data not in Content Studio Dynamic Data Library.
  • How to add Pitch Clock to Baseball content.

Environment

  • Product: Show Control
  • Component: Pitch Clock Data
  • Control System: Display Studio

Steps

  1. Open Profile Editor.

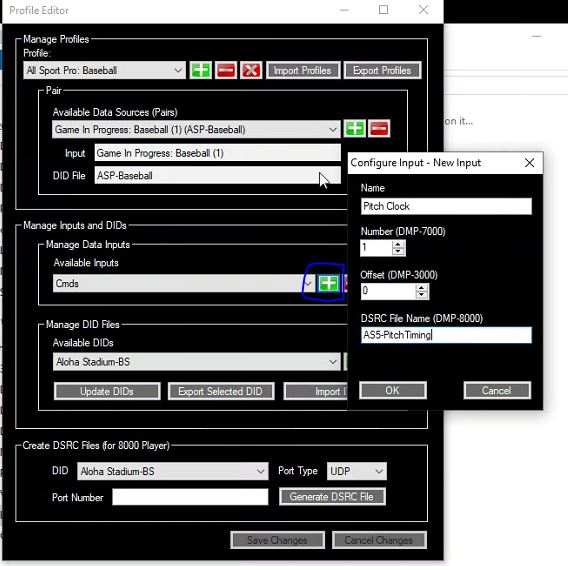

  2. Add an input under Manage Data Inputs - enter name for the source (ex. "Pitch Clock") and enter the dsrc file name ("AS5-PitchTiming").addSource.JPG

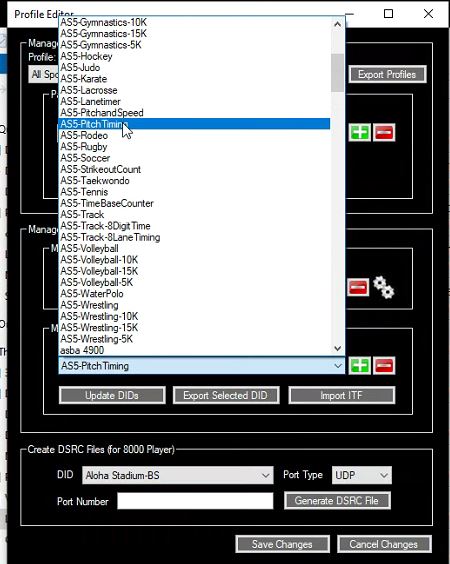

  3. Select the AS5-PitchTiming DID from the dropdown under Manage DID Files > Available DIDs.selectDID.JPG

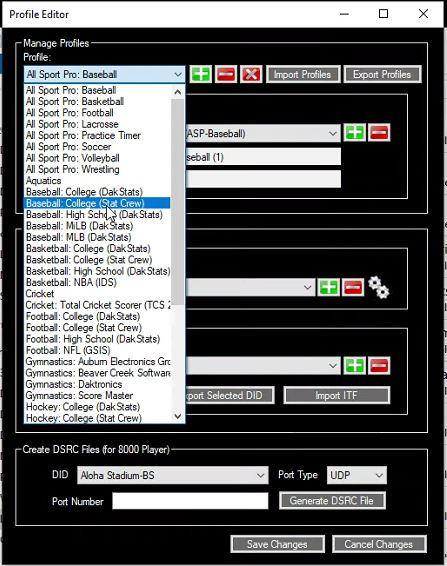

  4. Select the Profile, under Manage Profiles > Profile, that the source is being added to (in this example - "Baseball: College (Stat Crew)").selectProfile.JPG

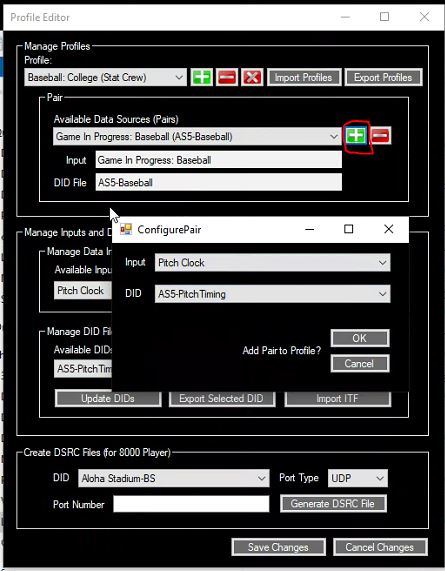

  5. Create a new Pair, click the Green Plus in Pair > Available Data Sources (Pairs) and select the Input Source created and the DID file. Press OK.addPair.JPG
  6. Save Changes.
  7. Restart Content Studio for changes to be applied.
  8. Under the profile you added the source to, there should now be a Pitch Clock folder with Pitch Clock data.

KB ID: 000028230
