FrameWrx: How do I add audio to a project.

Topic

Any audio file can be added directly into the FrameWrx Editor. However, audio files will only be supported in designated video or presentation projects.

Audio files can be applied to any scene or a video element within a scene. In order to designate the audio for a specific video element simply select the element prior to adding the audio. If you have not selected a specific element, audio will be applied to the entire scene. The file can be added either by a public URL to a downloadable file or by uploading a file from your device.

Environment

  • Product:
  • Component: Content Creation, Content Studio Timeline
  • Control System: FrameWrx Content
FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.
MicrosoftTeams-image (17).png


Steps

To add audio, follow these steps:

Open a project in the FrameWrx Editor.

  1. Click the Media button in the left menu.
  2. Locate the audio section.

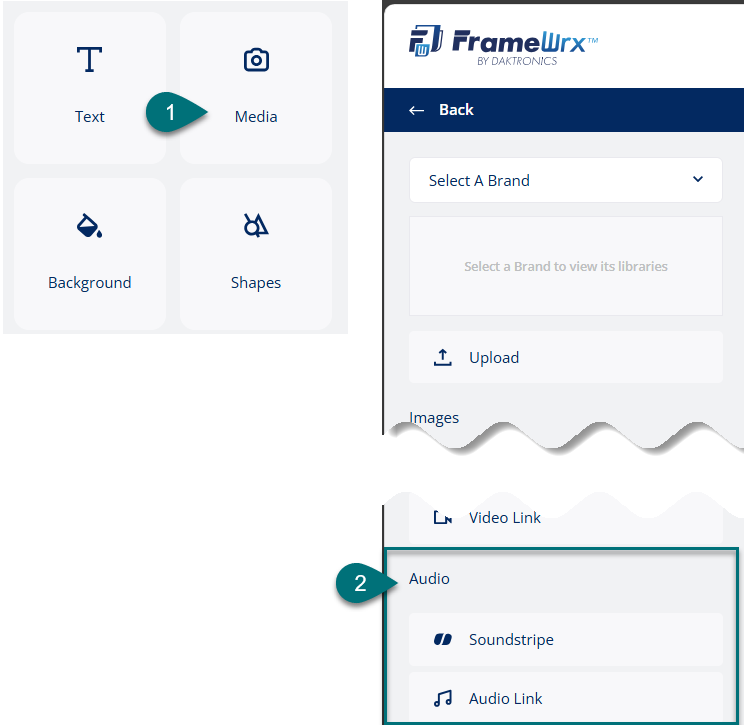

Screenshot 2024-07-17 170054d.png

🔽Use the arrows to expand or collapse each section.

Add audio link.
  1. Click on the Media icon.
  2. Scroll down to locate and click on the Audio Link button.
  3. Paste the public URL of a downloadable audio file.

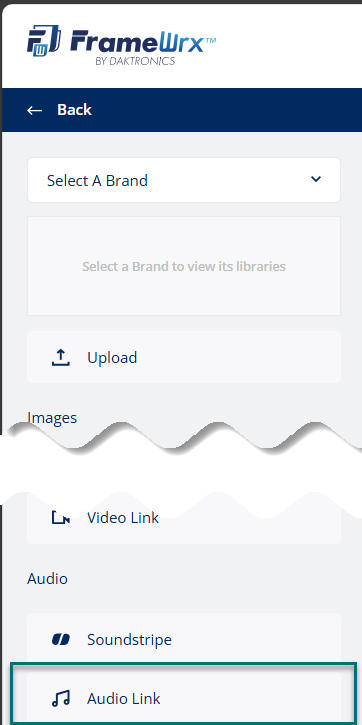

Screenshot 2024-07-17 170054c.png

Upload a video file.
Add a file from the SoundStripe Media Library.
  1. Click the SoundStripe button in the right-side menu.
  2. Locate the audio file that you want to add to your project.

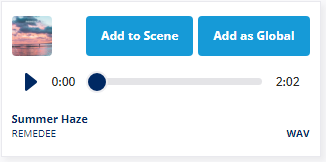

  3. Select the Add to Scene button.

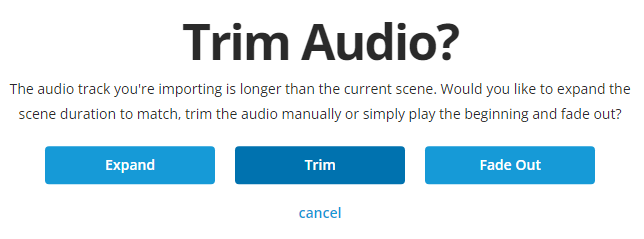

  1. Adjust the audio file to match the length of the video file if they differ.

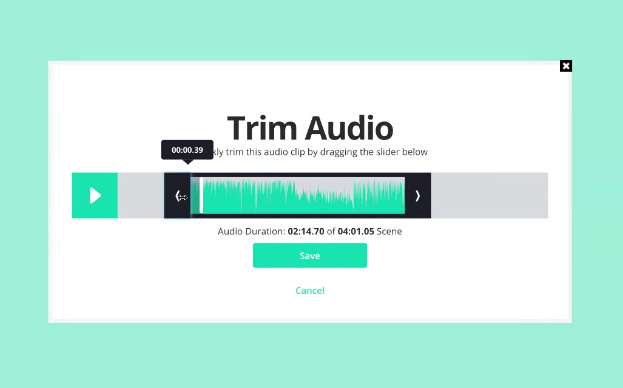

Trimming:


Fade out:

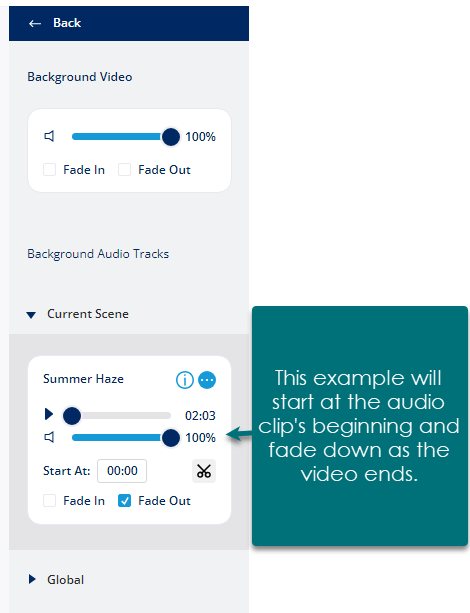

  1. Once the file is added, it can be edited from the left side menu.

Screenshot 2024-07-17 164001.png

  1. The video project with audio can be previewed.




      Related Resources

      FrameWrx: How do I control audio in a video project.

      FrameWrx: How do I trim video.
