FrameWrx Sports: How do I update the Next Home Game graphic from the template

Topic

Creating Next Game or Matchup graphic based on templates.

Environment

  • Product:
  • Component: Content Creation, FrameWrx editor
  • Control System: FrameWrx
FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.
FrameWrx horizontal.png

Steps

🔽Use the arrows to expand or collapse the following sections.

Getting started

Creating a project.

Log in:  FrameWrx: How do I log in to my account.

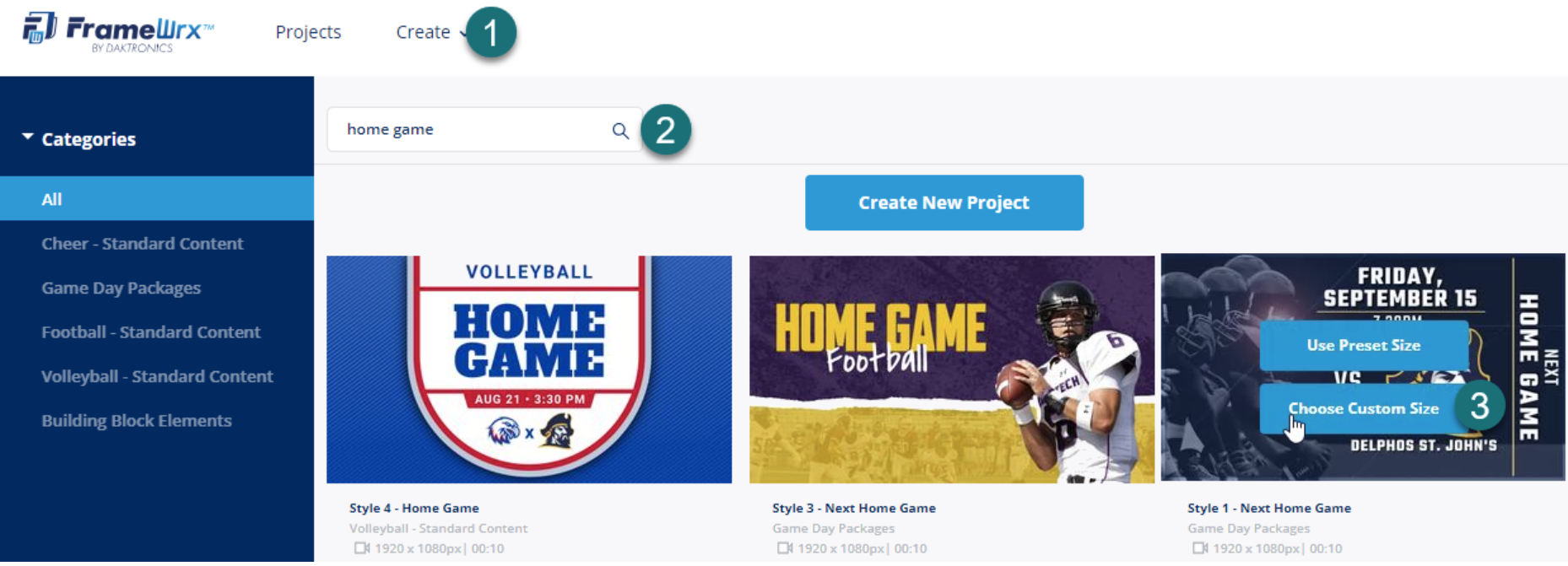

  1. Create > Create from Template.
  2. Search "home game" or whatever the name matches the Next Home Game templates.
    • There will be multiple styles for the Home Game graphic.  Pick the template style that matches your school's design.
  3. Choose Custom Size.

Screenshot 2023-09-13 105748.png

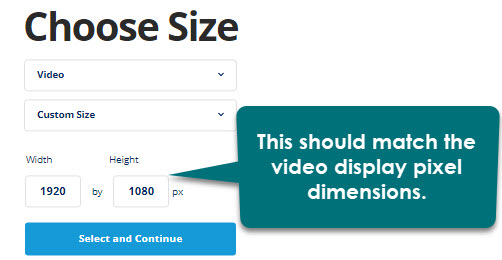

Project size
  1. Video
  2. Custom Size
  3. Enter the Width and Height of your video display.
  4. Click the Select and Continue button.


    In the editor

    Before starting, reference the season schedule to determine the next home game's date, time, and opponent.

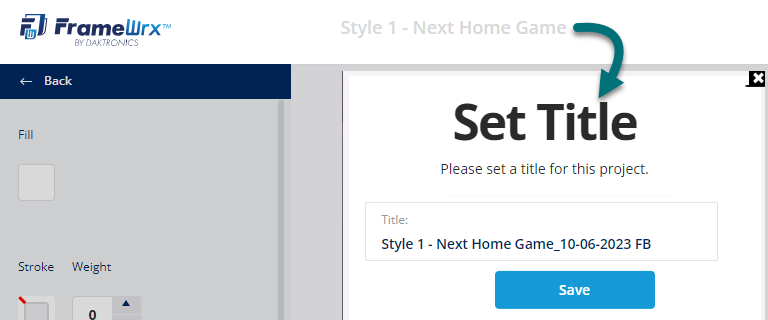

    Set title.
    • The example keeps the original title but includes the date and sport.
    • Style 1 - Next Home Game_10-06-2023 FB

    Screenshot 2023-09-13 105546.png

      Edit the text.

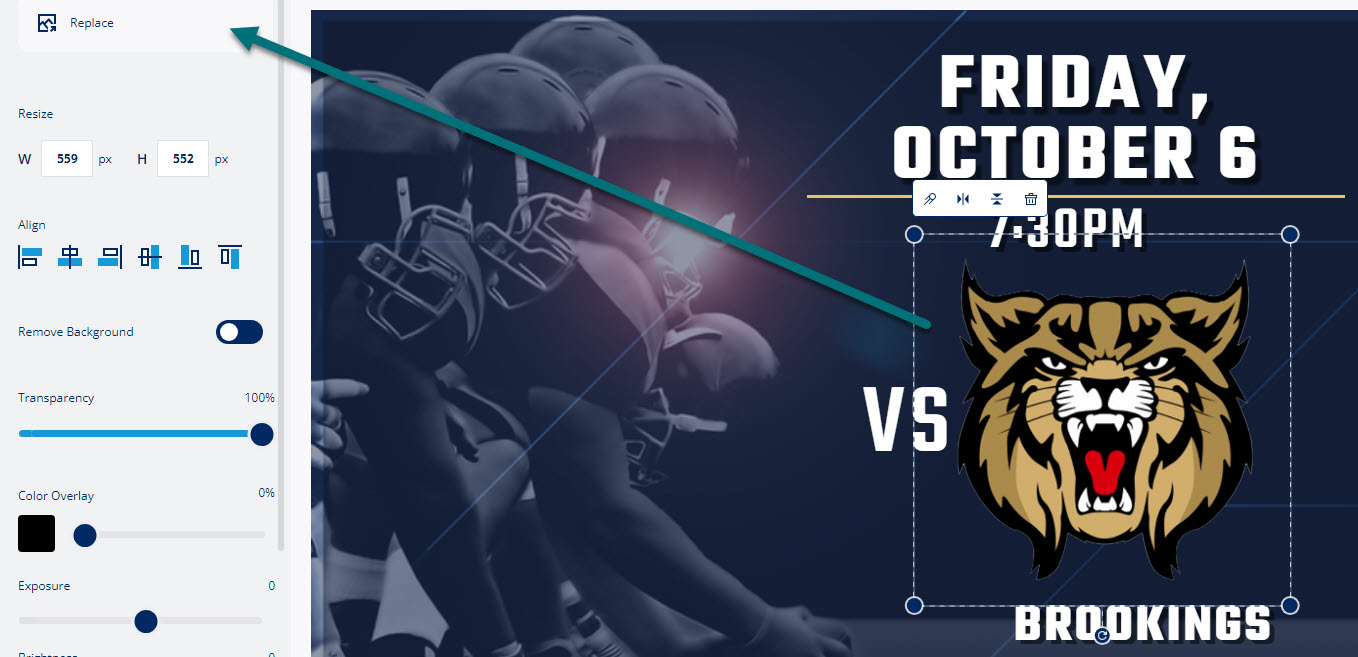

      Update the opponent logo.

      Click on the school logo.  This will need to be updated to show the next opponent's mascot logo.

        1. Click Replace.


      1. On the left side menu, navigate to Images > Logo.  This opens the logo library.
      2. Locate the logo and select. This will replace the logo with the one in the template.

        Verify content.

        1. Be sure the text and logo are lined up correctly.
        2. Click on the blue play button.  This will replace play the scene to make sure the animation works as expected.

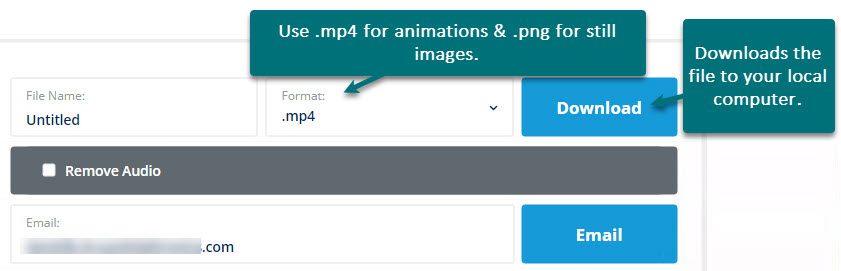

        Export the project.
        1. Click on the blue Export button.
        2. Enter the export parameters.
          • This will save the file to your local computer's Downloads folder or default location.
          • The email option will send an email with the file attached.  The email will be from Daktronics<noreply@designhuddle.com> and the title of the email will match the title of the content.
          • File Name: This will be the name of the exported content.
          • Format should be .mp4.
        1. Click Download.


          Transfer the content to your Digital Media Player.

          DMP-8000: How do I import graphics into DMP-8000?

          Play out the message

          Configure a button in Display Studio so it can be played on the display when needed.  This can also be scheduled to play in systems using Venus Control Suite for scheduling.
          Options:
          Display Studio: How do I create script buttons in a Daktronics Show Control System
          Display Studio: How do I create and edit a quick display container and button?
          Venus Scheduling: How do I schedule content in Venus Control Suite?

          Related Resources

          FrameWrx Sports: How do I update the game starting lineup graphic from the template.
