FrameWrx: How do I add assets to my account.

Topic

  • FrameWrx brand specific assets
  • Admin asset management


Environment

  • Product:
  • Component: Content Creation
  • Control System: FrameWrx Content
FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.
MicrosoftTeams-image (18).png

Steps

Framwrx admin.png Admin Asset Management

Admin can upload the assets (photos, fonts, logos, colors) into FrameWrx so the designers can use them in their content.  This will ensure that the content looks cohesive and aligns with your company or school's own brand.



The process is listed below.  Click on the arrows below to expand & contract each section.

How Admin can add a brand under the Assets tab

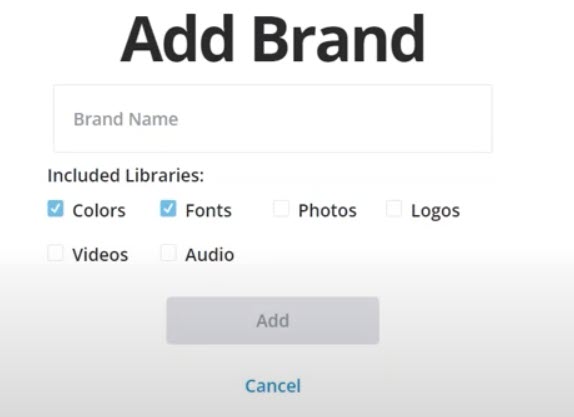

  1. Click on assets from the top tool bar and click Add Brand.
  2. Add Brand.
  3. Use your school or company name as a brand.
  4. Select the libraries for your brand items.  (These can be customized later)
  • By default, there are libraries available for each asset type, but Admin can add as many libraries as possible. Libraries within these brands can retain any combination of these assets.

Screenshot 2024-05-15 155145.png

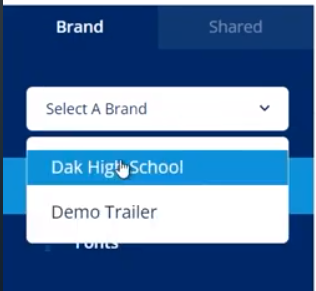

  1. From the left side, choose your new brand from the drop down.

Screenshot 2024-05-15 155740.png

Now you can start adding colors, fonts, videos, photos, and logos to your brand!

How Admin can add brand colors under the Assets tab

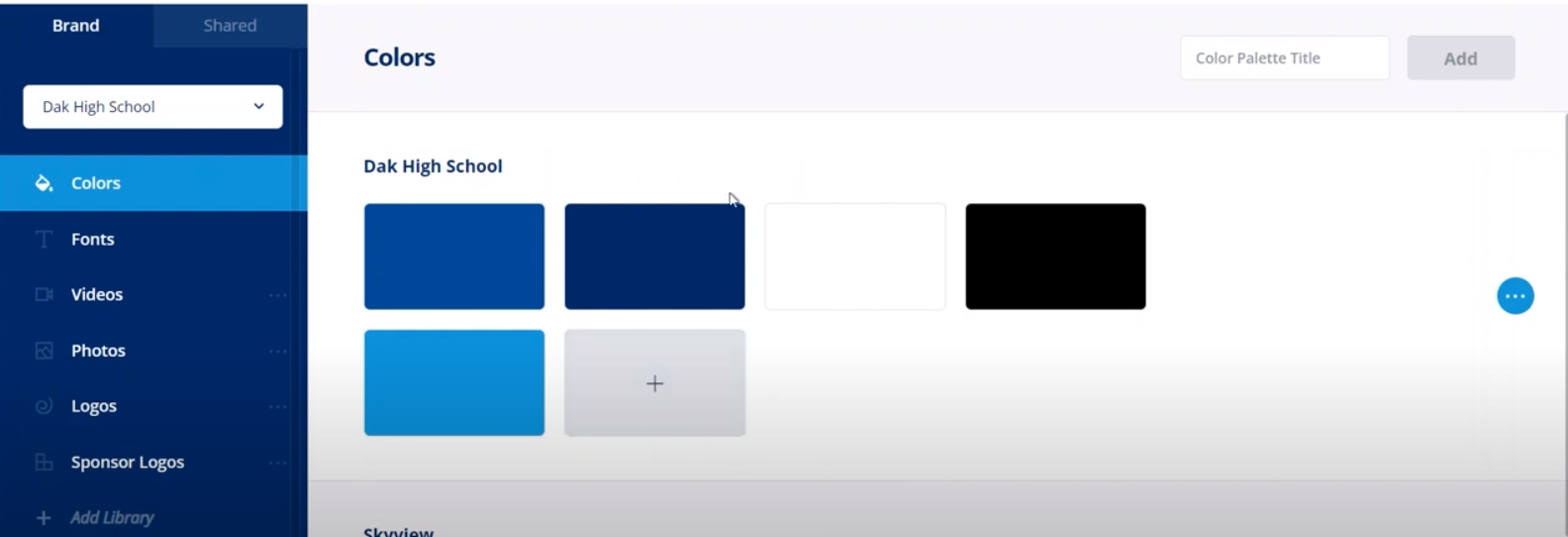

To add a Color Palette for the Brand, follow these steps:

  1. Click Colors on the left panel.
  2. Type the Color Palette Title on the upper right. This could be for the school or company.  Other pallets can later be created for other schools and companies.
  3. Click Add
  4. Click the Add icon (+) under the Color Palette Title
  5. Input the RGB or CMYK colors.
  6. Click Add

Use the ellipses that appear on the right of the color palette to rename or delete any palette that has been created.

Screenshot 2024-05-15 155941.png



How Admin can add brand fonts under the Assets tab

While setting your font for a text field there will be a section directly above system fonts where you can choose a brand (if not already chosen) and the fonts specific to that brand will populate here for use.

  1. Click Fonts on the left panel.
  2. Click the Upload button, or drag and drop any OTF, TTF, or WOFF font file to the page.
  3. Name the Font File
  4. Confirm your rights to the font via the checkbox.
  5. Upload specific font styles (Italic, Bold, Bold Italic) by clicking on the font you would like to add multiple styles for.

Fonts that appear greyed out can be uploaded if available.

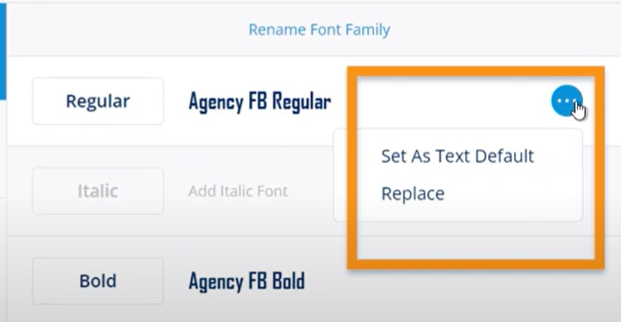

Fonts can be set as a default

  1. Select the font
  2. Click on the ellipsis.
  3. Choose Set as Text Default from the options.

Screenshot 2024-05-16 110514.png

Related Resource

FrameWrx: How do I add fonts to a project.

How Admin can add brand videos under the Assets tab
  1. Click the Videos option in the left menu.

  2. Click the Upload button or drag and drop one or multiple video files on to the page.

Tags

Add tags so that the content can be easily found by keywords when searching.

  1. Click the checkmark on the photo(s)
  2. Click the Add Tags button at the top of the page.
  3. Type a new Tag name or select from the dropdown.

OR,

  1. Hover over the photo.
  2. Click the ellipses icon (three dots)
  3. Click Manage Tags
  4. Type a new Tag name or select from the dropdown.
How Admin can add brand photos under the Assets tab
  1. Pick Photos on the left panel.
  2. Click the Upload button or drag and drop JPEGs or PNGs on to the page.
  3. Tags can be added to photos, so they are easily found by keywords when searching. To add a tag, follow these steps:
  4. Click the checkmark on the photo(s)

Add tags to make finding the photo easier

  1. Click the Add Tags button at the top of the page.
  2. Type a new Tag name or select from the dropdown.

OR

  1. Hover over the photo.
  2. Click the ellipses icon (three dots).
  3. Click Manage Tags.
  4. Type a new Tag name or select from the dropdown.

When selecting images from the editor, you will see a brand photo button. If you open this, you will be taken to the brand photo gallery and be able to add in any photo you would like. You can toggle through the brands and select another if the brand has not been assigned at the outset. You can also select brand images while masking images into shapes, SVGs, or setting backgrounds.

Note: Use the Select All button to quickly add tags, clear tags, or delete all photos from the Brand.

How Admin can add brand logos under the Assets tab

When selecting an image, you will optionally have the opportunity to add a logo. Under the images section you will see a logos button that will display your brands logos in a gallery. There will also be a dropdown to where you can toggle brands if necessary.

  1. Click the Logos option in the Left Panel

  2. Click the Upload button or drag and drop any SVG file on to the page.

  3. Enter a name for the logo.

Note: Hover over the logo to download, delete, or rename the element at any time.

Related Resources

FrameWrx: How do I work with projects and templates
FrameWrx: How do I add and manage users.
FrameWrx: Admin/Instructor activities
FrameWrx: How do I edit content.
