Daktronics

All Sport Pro Baseball: How do I enter On Base data?

Topic

Team on base information

Environment

  • Product: All Sport Pro Baseball
  • Components:
  • Control System: All Sport Pro Baseball

Steps

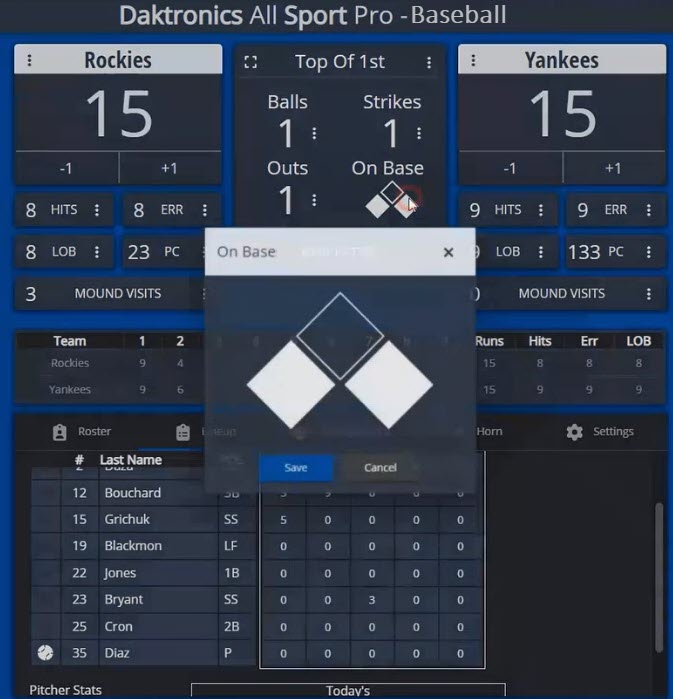

When a runner's base positions change

  1. Click on the On Base icon.
  2. Click the empty bases to show the correct on base indicators. Click the highlighted bases to remove on base indicators.
  3. Click Save.

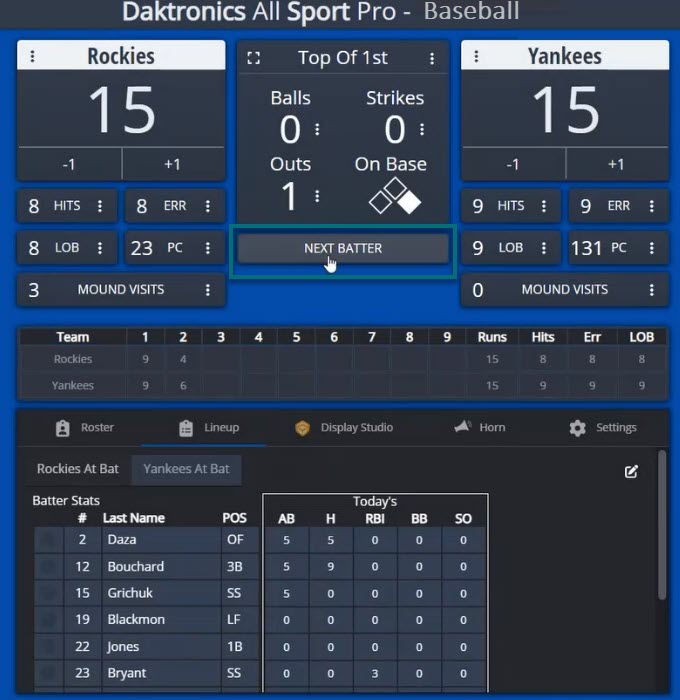

Next Batter

Use the NEXT BATTER button to move to the next batter.  This will clear out balls and strikes data fields.

On Base RTD

To make content that displays on base details, use the ASP Baseball ITF/DID in your Show Control Data Profile.

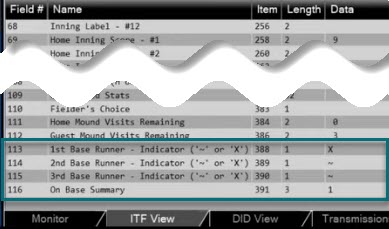

In Content Studio, you will be able to pull the "on base" data field from the "All Sport Pro Baseball" profile under 1st base runner indicator, 2nd base runner indicator, and 3rd base runner indicator.  The data will populate as "~" or "X".  These could be used to for media RTD with the "X" as the MediaRTD showing on base and the "~" showing no runner which will be an empty base.  Show Control System: How do I create content with media RTD fields?

To see what data is being pulled, you can view it in the data monitor.
