Venus Scheduling: How do I schedule interactive content for my touchscreen?

Topic

Content for Venus Interactive Touch Experience (Kiosk)
This playlist includes an Attract Loop or screensaver and interactive HTML content.

Examples of use: retail, malls, transportation/ wayfinding, Live Events/venue maps, HSPR, Games, Display a website.
This functionality supports HTML based content that is created by the customer.

Environment

Product: Venus Scheduling App
Component: Venus Professional
Control System: Venus Control Suite

Steps

Upload HTML Content into Venus

Venus Media Library: How do I upload a zip file of media / HTML Support
Venus Media: What graphics and images can be used with Venus Control Suite?

Log into Venus Control Suite Venus Accounts: How do I log in to Venus Control Suite?
Select Scheduling from the My Apps menu.

🔽Click on the arrows to expand each section

Scheduling interactive content in an attract loop (Interactive playlist)

Venus Scheduling: How do I create a playlist in Venus Control Suite?

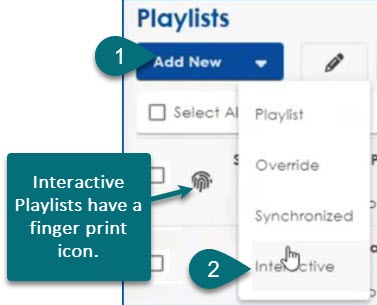

From the Playlist Page, click Add New to create a new playlist.
Choose Interactive from the drop-down options.

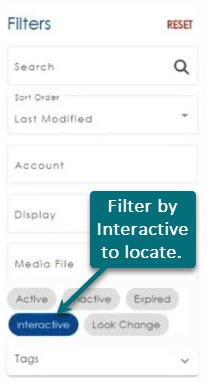

To locate an existing playlist, use the filters for interactive playlists.

Add Displays

Click + next to Displays to select the displays the new playlist will appear on.
A right side-out should appear that lists your account's displays.
Select the displays. A check mark identifies which display(s) you have selected and generates a list under the Displays tile.
Click on the X in the top right corner to close the slide-out.

Add Media

Click + in the top corner of the Media Files tile. The Select Media menu will slide-out from the right side.
Locate the desired media file using the filter options. The media filter can limit results using file title, modified date, account name, association, file type, dimension, and associated tags.
Select the desired HTML media file(s) from the list within the Select Media menu by clicking +. The Media files list will populate with the selected media files.
1. Remove a media file from the list by clicking + or remove all media files by clicking Remove All.
Click on the X in the top right corner to close the slide-out.

Finish the Playlist

Add other content to make the Attract Loop or screensaver.
Save.

Scheduling interactive content without an attract loop (Regular playlist)

It is possible to schedule interactive content without an Attract Loop.

Select the down arrow to the right of Add New.
Choose playlist from the drop-down options.
Add the interactive content (one piece of media ONLY) to a regular playlist
Schedule as normal.

Note: Do NOT use the interactive playlist type from the drop-down menu during creation

Related Resources:

Venus Control Suite Scheduling Quick Guide

Venus Scheduling: How do I create a playlist in Venus Control Suite?

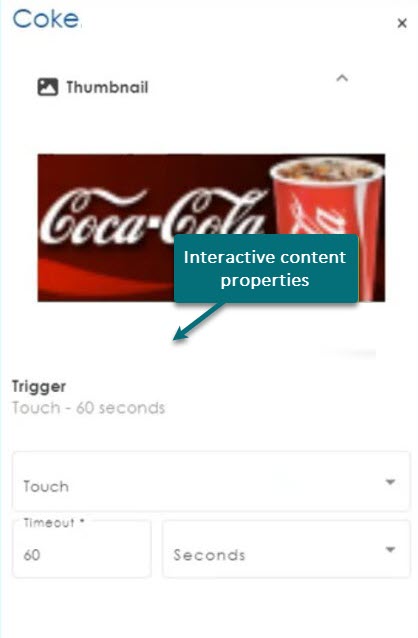

Interactive content properties

Select the file to view the media file properties.
Trigger- Touch is set by default. This is the only option at the time of launch.
Timeout- Time the player will wait before reverting to the regular playlist content (Attract Loop / Screensaver)

Interactive Playlist Considerations

Only 1 Interactive playlist may be scheduled to an interactive display.
Normal playlists can be scheduled and will work as the attract loop/screensaver (as usual, supports multiple playlists).
Interactive playlists support zones. Layout Editor: How do I create an l-wrapper zoned layout with a Fullscreen look change in Venus Control Suite
Interactive playlists support look changes. Venus Scheduling: How do I schedule look changes within Venus Control Suite?
Interactive content will be included in Proof of Play Reports. Venus Reporting: How to I make a report to see my scheduled content?
