DakLink : How do I configure TV feeds

Topic

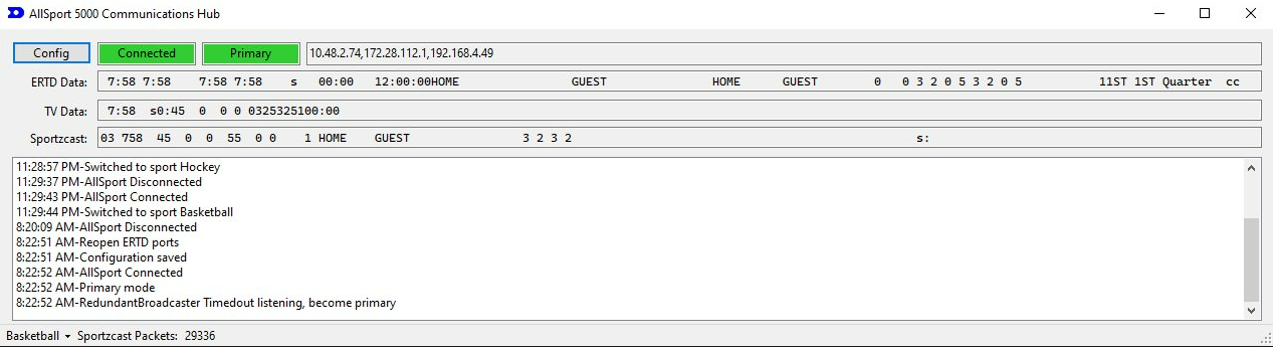

DakLink (All Sport Communication hub)
  • Views data being received from All Sport 5000
  • Shows Primary/Backup Status for serial input.
  • Provides GIP Data and mapped TV Feed, Sportzcast data feeds
Other features...
  • Automatically switches sports base on All Sport code in ERTD
  • Runs in notification if minimized or if user attempts to close.

Environment

  • Product: Configuring TV Feeds
  • Component: DakLink
  • Control System: DakLink, All Sport 5000

Steps

  1. Open the Comm Hub software and go into the Configuration dialog by selecting the Config button in the upper left corner.

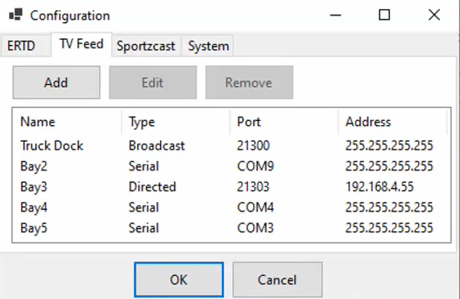

  2. Click on the TV Feed tab.
    • Multiple ports can be configured to output.
    • Click Add to add a new output.
    • The outputs can be named for later reference.
    • Outputs available: serial, UDP broadcast or directed UDP.
    • Up to 10 different TV Feed Outputs can be configured.
  3. Click OK.
This sends data every 5 seconds if nothing is changing to assist with testing and diagnostics.

All Sport Hub TV feed.png

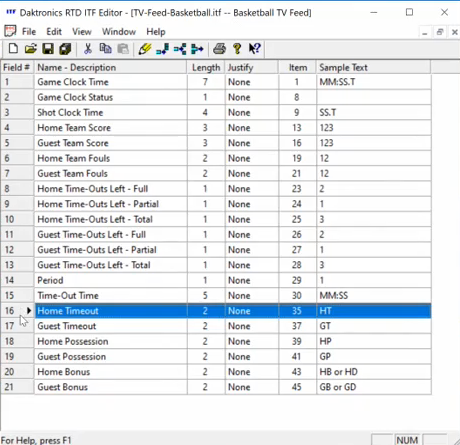

Basketball TV fields:
All Sport Hub TV feed 2.png
Identify the sport code from All Sport.

Related Resources
DakLink (All Sport Communication Hub): How do I configure Genius/ Sportzcast data feeds
Baud rate options are missing

KB ID: 000026101
