Content Studio: How do I make content that pages data?

Topic

This article outlines the process of incrementing or sequencing data supply into a data-driven content template within Content Studio. Data paging arranges and displays the data flexibly and in a format that's easy to consume.

Content Studio Data Paging enables users to specify:

  • The increment of data-driven pages.
  • The duration for displaying data pages.
  • The action to take upon completion of the data.

Data Paging progresses item by item through the XML (JSON) data with a single content/template. This is crucial as the number of items in the feed may be unknown at any time.

Environment

  • Product: Content Studio version 3, DMP-8000
  • Component: Data Tools, Data Paging, Data Studio
  • Control System: Show Control System version 3.0.0.9 or later, Data Studio


Use Cases:

  • Data Lists: game summaries, scores from other towns, etc.
  • Menu Details
  • Social Media XML Feeds
  • Stock Market Spreadsheets

Steps

🔽 Use the arrows to expand or collapse each section.

Create a record

Full instructions for creating a presentation can be found here: Content Studio: How do I create presentations with data elements?

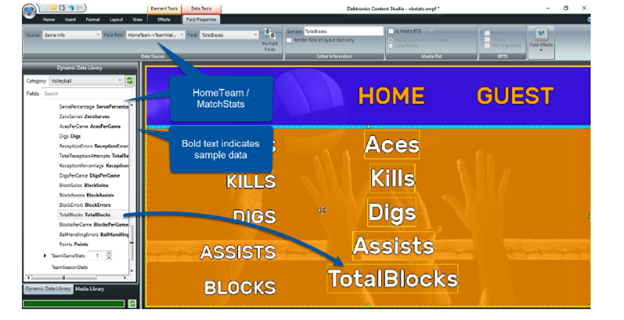

  1. To incorporate data elements into a Content Studio presentation, you might add the initial row of associated data to be displayed in a table format. For instance, this could include conference standings.
    Align and format the fields as desired.

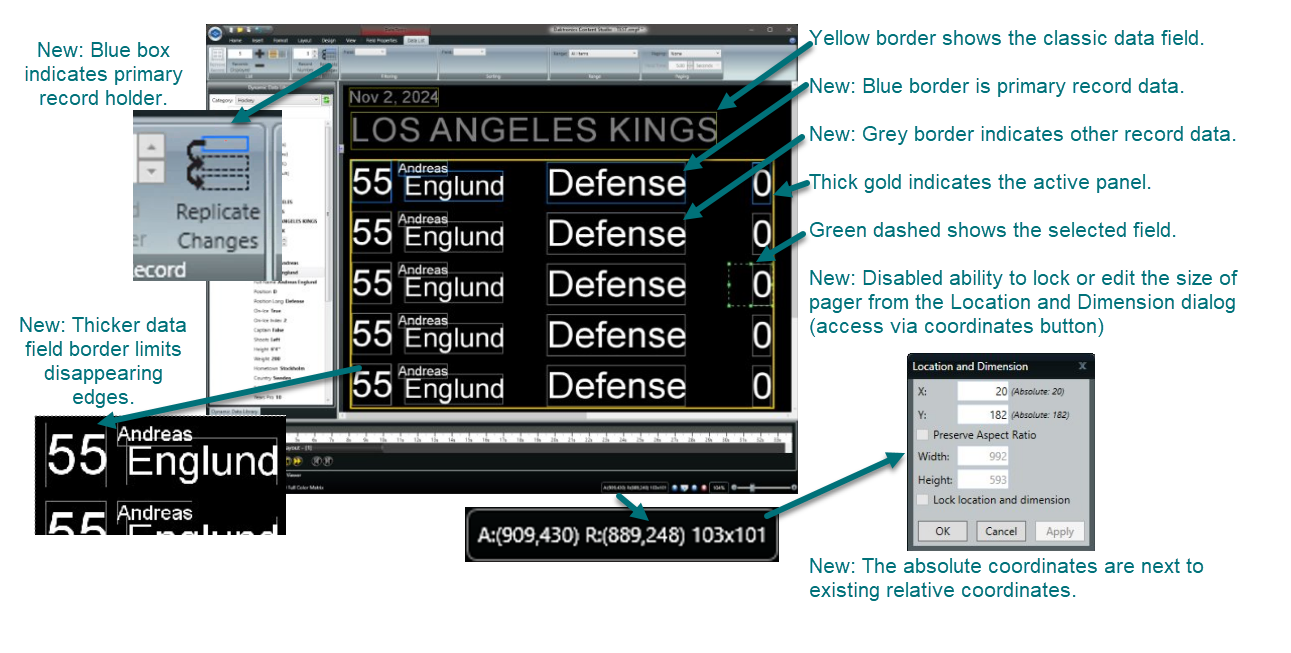

  2. Highlight both data fields.  Navigate to Data Tools> Data List and select Create Record.

Record Locator without Mouse.PNG

List Settings

Finish the Table

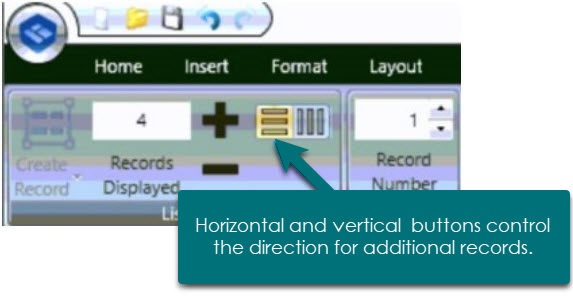

  1. Click on the horizontal or vertical button to indicate the direction for the additional records.

Screenshot 2022-11-04 145357.jpg

  1. Click on the ➕ to duplicate the fields to make a table.

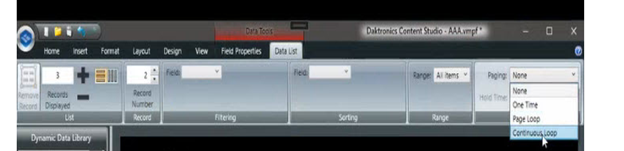

    PAGE RECORDS ZOOMED.jpg
  2. Align the table as needed.
  3. Determine page records
    • Under Data Tools > Data List, select Page Records.  This determines how many data-driven pages to increment through.
  4. Determine hold time-Enter how long to keep the set of data displayed.
  5. Determine page modes -Content Studio: Which Data Paging Modes are Available
Adding data
  1. Drag and drop data into a data paging layout.
  2. Customize the list.  Content Studio: How do I create filtered and sorted data lists that compare player information?

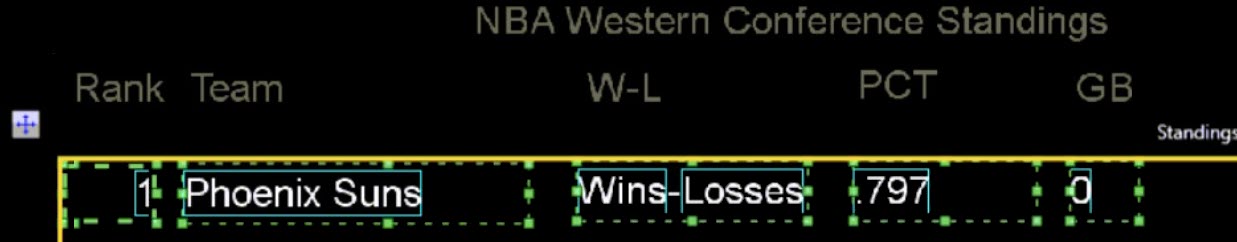

Data At Start of Paging Zoomed (1).PNG

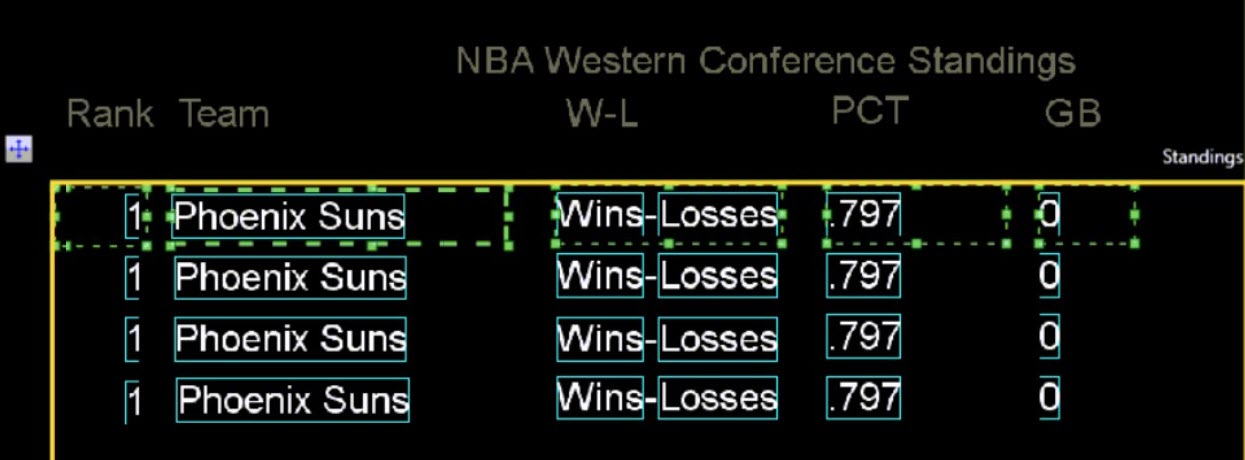

Zoomed after adding additional records for display (1).PNG

Verification

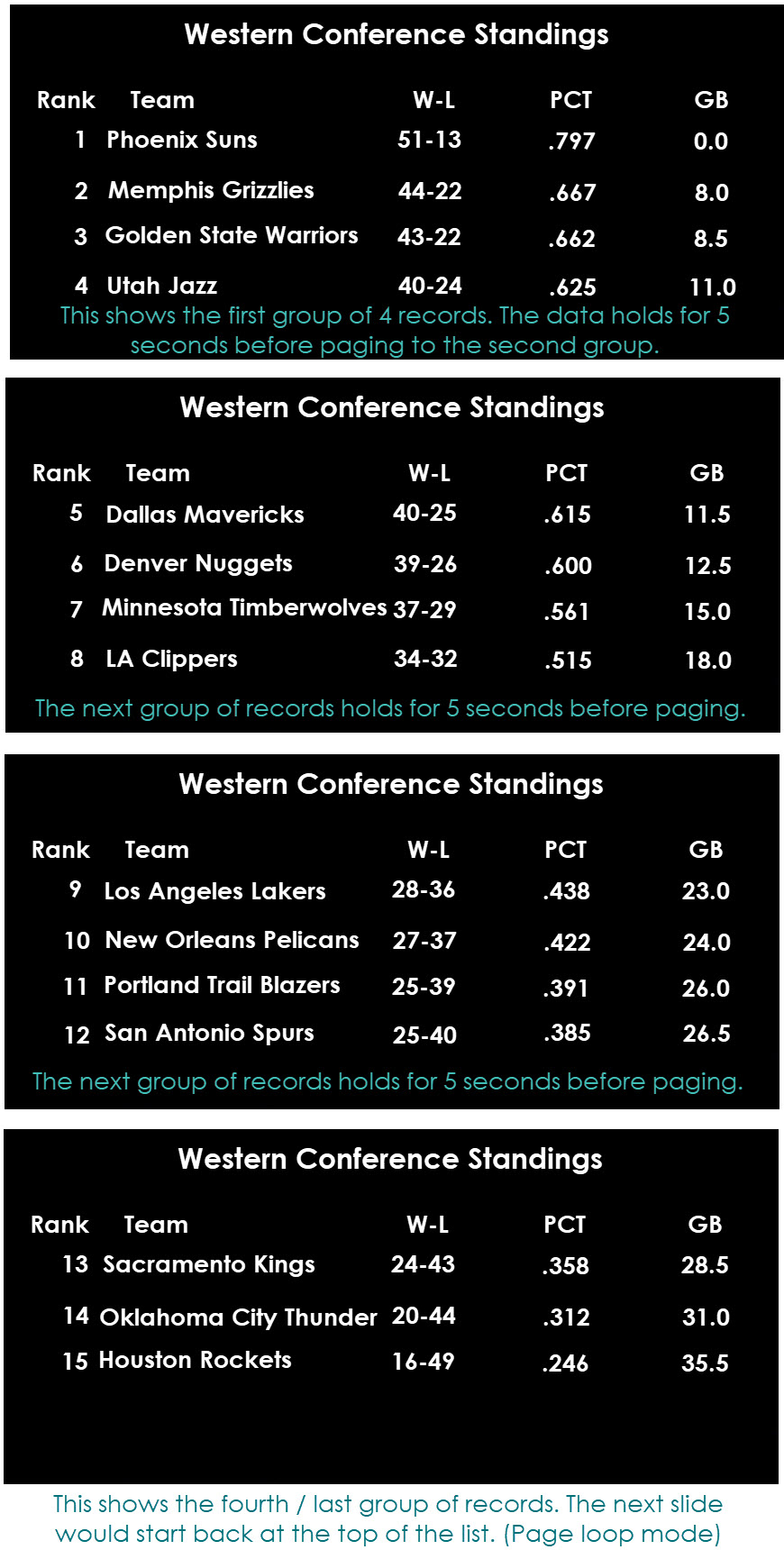

In this scenario, data would cycle through as demonstrated in a page loop mode. When the list reaches the end, the subsequent slide will revert to the start of the ranked list.

data paging 3.jpg
