VFC DS1 and DS2 LED color codes

Topic

  • What do the flashing colors mean on the LED's DS1 and DS2 on the back of the VFC?
  • ​VFC LED / light indicators on back of controller

Environment

  • Product Family: Transportation
  • Product: VF, VM, VX, and VC6 displays
  • Component: VFC (Vanguard Field Controller)

Steps

  • RED color status indicates a loss of PL6 fiber signal.
  • GREEN color status indicates a network failure.
  • BLUE color status indicates a DVI input failure.
  • YELLOW color status indicates DHCP mode.
  • WHITE color status indicates no problems.

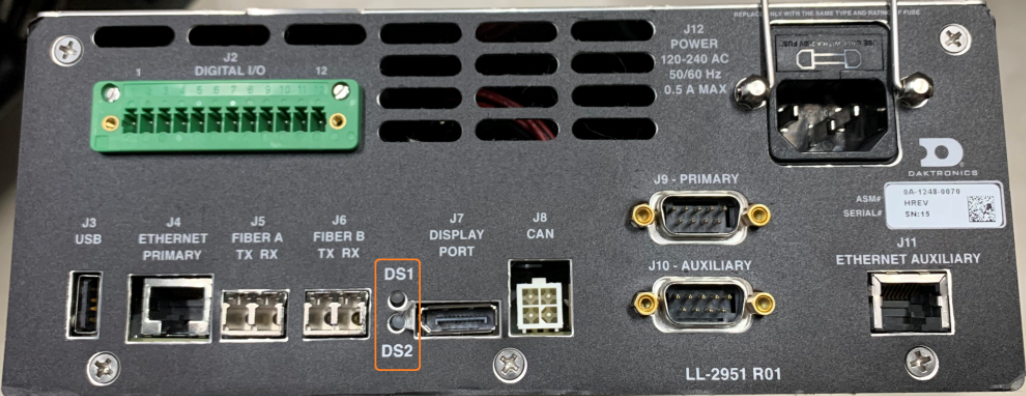

Image below is the back of the VFC controller.
