NovaStar MeetUs: What do the indicator lights mean?

Topic

MeetUs indicator lights.
Fault judgement

Environment

Product: NovaStar Meetus
Components: SLD, MEE200
Control System: Conference Display System

Steps

Use the indicator lights to determine operating status.

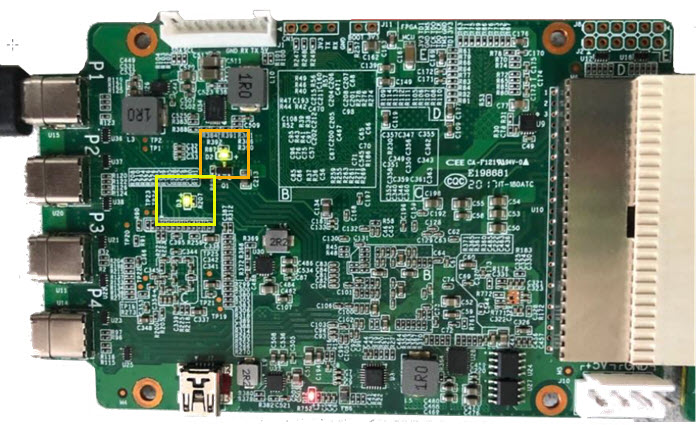

Power indicator on the sending card. (Red in the image below.)
If this indicator is always on, the power is supplied.

MCU indicator (The green light on the left)
If this indicator flashes once every 1s, the MCU is functioning normally.

FPGA indicator (The green light on the right)
If this indicator flashes 4 times every 1s, the video input is available.

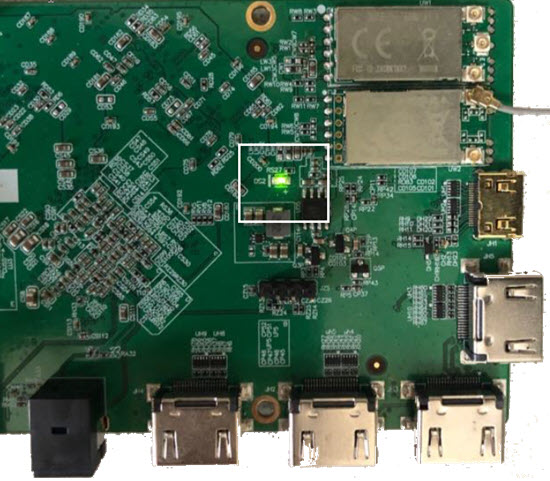

Android on-board indicator (green)
If this indicator flashes once every 1s, the Android system is functioning normally. Also see: NovaStar MeetUs: System not running, Android on-board indicator not flashing

KB ID: 000024631
