All Sport Pro How do I configure All Sport Pro and Display Studio on different machines

Topic

Integration with All Sport Pro and Display Studio with API

Environment

  • Components: Team settings
  • Control System: All Sport Pro version 21.6.410.0 or later, Multi-Seat Classroom HSPR, Show Control/Display Studio Version 2.29.0.28 or later.
Do this if there is no local installation of Display Studio on the All Sport Pro computer.


Steps

Retrieve the API Key from Display Studio.

  1. On the Show Control Computer, open Display Studio

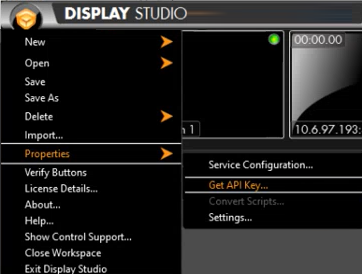

  2. Open the menu > Properties > Get API Key

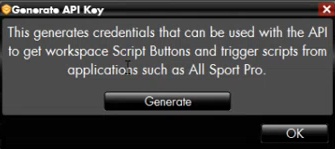

  • Click Generate (This copies the required information to the clipboard.)

Open the All Sport Pro settings page from the browser.

  • Should the All Sport Pro be inaccessible via a browser, copy this information into a notepad file and transfer it to the All Sport Pro computer.

Apply the API Key in All Sport Pro

  1. Go to the left side menu > Settings
  2. Click Paste- This should fill in the API information.
  3. A prompt may ask to see text and images copied from clipboard- click allow


All Sport Pro Series 2.0

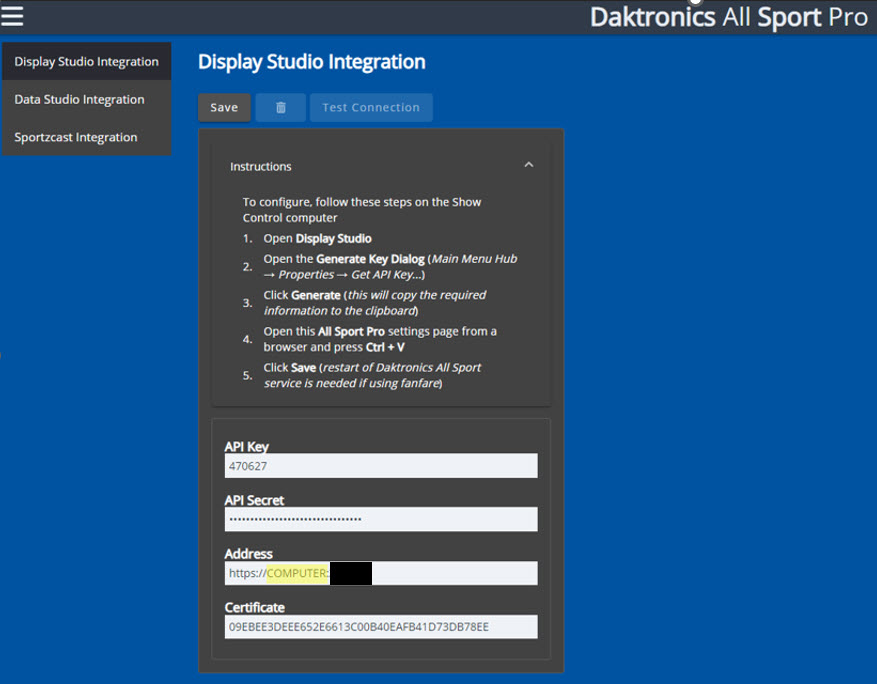

Substitute the hostname with the IP address in the "Address" field (refer to the highlighted section).

  • Replace highlighted address field (before hitting Save) with the IP address of the connection made through the Daktronics Network.


  • Hit Save and Test Connection to confirm.

KB ID: 000024146
