Live Book: How do I configure Live Book support for the Data Studio In-Venue Feed?

Topic

How do I configure  Live Book support for the Data Studio In-Venue Feed?
Live Book support for BSO (ball strike out)/Runners on Base from BAM

Environment

  • Product: Data Studio, Baseball Sport App
  • Components: Data Studio Baseball In-Venue MLBAM Stats
  • Control System:  Venus Local Professional, Venus Local Select, Live Book
Data will only be available if there is a game that day.

Steps

Data Studio Configuration

See: Data Studio Baseball: How do I configure In-Venue MLBAM Stats?

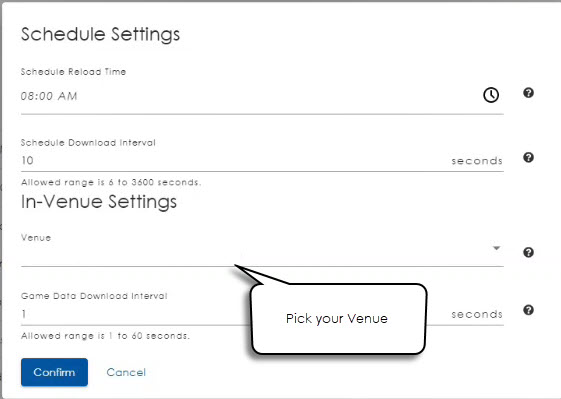

Set In-Venue Settings according to your location.
Data Studio Outputs1.jpg
Set Outputs
  1. Click on the outputs icon from the left side menu.
  2. Click Add Output and choose In-Venue ERTD Scoreboard from the drop down.
  3. Enter the port number. Use 23321 for Live Book integration.
  4. Click Save.

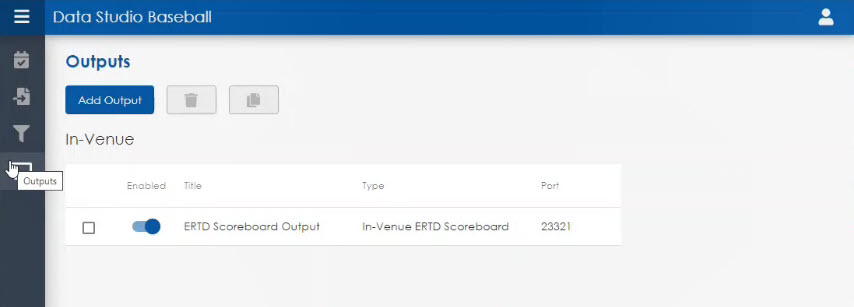

Data Studio Outputs.jpg

Baseball Sport App Configuration

Sport App Settings
1.Open the Baseball Sport App.
2. Click on the SportApp Settings from the bottom right of app..
3. Pick Daktronics ERTD from the Scoreboard Feed Options.
 Sport App baseball ERTD setting.jpg
4. Select Feed Options.

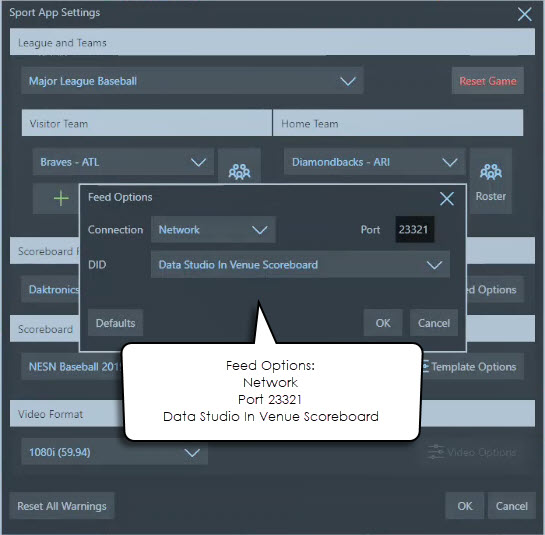

Sport App baseball ERTD setting1.jpg
5. Configure the following:
  • Network
  • Port 23321
  • Data Studio In Venue Scoreboard

Radar Guns

1. Open the Plug ins Manager

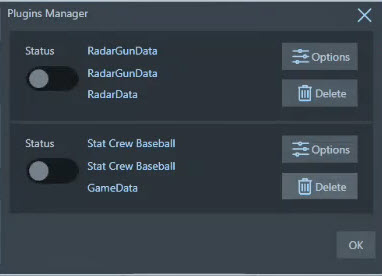

Sport App baseball radar gun settings.jpg
2. Select Options
3. Adjust Settings as needed.

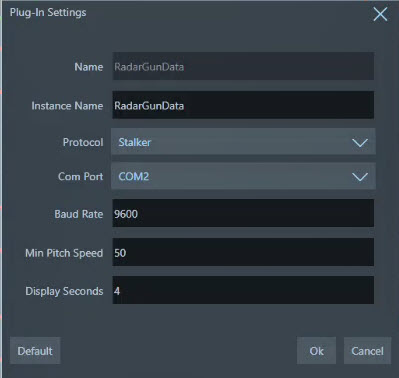

Sport App baseball radar gun settings1.jpg

KB ID: 000020660
