How do I set or change a static IP on my computer or USB to Ethernet adapter?

• Change IP Address on computer Local Area Network adapter or USB to Ethernet adapter to a similar IP Address.
  • Note: (If display's IP Address is not known, cycle power and watch the start up sequence for the IP Address of the controller):
  • Set computer's IP Address to a static IP Address similar to the display's controller.

    • All setups with a USB to Ethernet adapter should be setup as follows the below example:
      • Example:
        • • Display:
            • IP: 192.168.1.10
            • SM: 255.255.255.0
            • GW: 192.168.1.1
          • USB Adapter:
            • IP: 192.168.1.9
            • SM: 255.255.255.0

Windows 7:

1. Click on the network icon at the bottom right of your computer screen.
2. Click on Open Network and Sharing Center when the window opens.
3. Select Change Adapter Settings in the left toolbar.

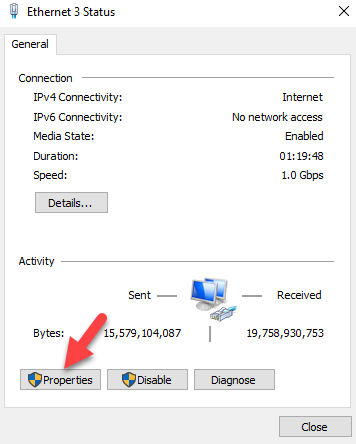

4. Right Click on the appropriate adapter (Local Area Connection for direct connect to computer or correct USB to Ethernet adapter) then click on Properties.

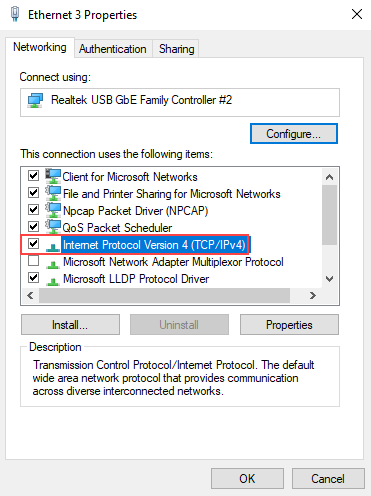

5. Select Internet Protocol Version 4 then click on Properties.
6. Make note of the current IP settings for the computer.
7. Select Use the Following IP Address.
8. Type in the desired IP Address for the computer or select Obtain IP Address Automatically for DHCP.
   • Note: The IP Address for the computer should be similar to the display IP Address, but NOT the same.
9. Press the Tab Key  on the keyboard after typing the IP Address and the Subnet Mask should populate automatically.
   • Note: The subnet mask should be the same between the computer and the display.
10. Select OK once the information has been entered.
11. Select Close to close out the Local Area Connection Properties window.

Windows 8/ Windows 10:

1. From the Start screen, begin typing Network and Sharing Center.
2. Click Settings.
3. Click Network and Sharing Center on the search results on the left.
4. Select Change Adapter Settings in the left toolbar.
5. Right Click on the appropriate adapter (Local Area Connection for direct connect to computer or correct USB to Ethernet adapter) then click on Properties.

6. Select Internet Protocol Version 4 then click on Properties.

7. Make note of the current IP settings for the computer.
8. Select Use the following IP Address.
9. Type in the desired IP Address for the computer or select Obtain IP Address Automatically for DHCP
   • Note: The IP Address for the computer should be similar to the display IP Address, but NOT the same.
10. Press the Tab Key on the keyboard after typing the IP Address and the Subnet Mask should populate automatically.
    • Note: The subnet mask should be the same between the computer and the display.
11. Select OK once the information has been entered.
12. Select Close to close out the Local Area Connection Properties window.
