How to configure a new or replacement VIP controller for a Venus Control Suite controlled DB-6500, DB-6600, or BLD-0200

Topic

  • How do I configure a new or replacement VIP controller for a Venus Control Suite controlled DB-6500, DB-6600, or BLD-0200?

Environment

  • Product: DB-6500, DB-6600
  • Components: VIP-5160.2 p/n 0A-1603-8401
  • Control System:

Steps

NOTE:  This guide is for use by Installers in the field.

NOTE:  This guide is applicable to displays using Venus Control Suite.

NOTE:  Recommended tools to complete this work include: laptop, spare Ethernet cable, Ethernet coupler (RJ45 female-to-female).

  1. Setup laptop for direct (static IP) connection to devices.
  2. Directly plug the Ethernet cable from the VIP to your laptop.
    • This should be the cable that is currently plugged into port 2 of the Meraki router.
      • NOTE:  It is recommended to connect an Ethernet coupler to this cable and use a spare Ethernet cable to extend its reach so you can complete this work in a comfortable and safe position.
  3. Login to the VIP.
    1. Open a web browser window.
    2. Connect to the VIP web interface.
      1. For assistance accessing the VIP web interface, contact Daktronics Technical Support.
    3. Enter the controller's Username and Password.
      • If you do not know the credentials, contact Daktronics Technical Support.

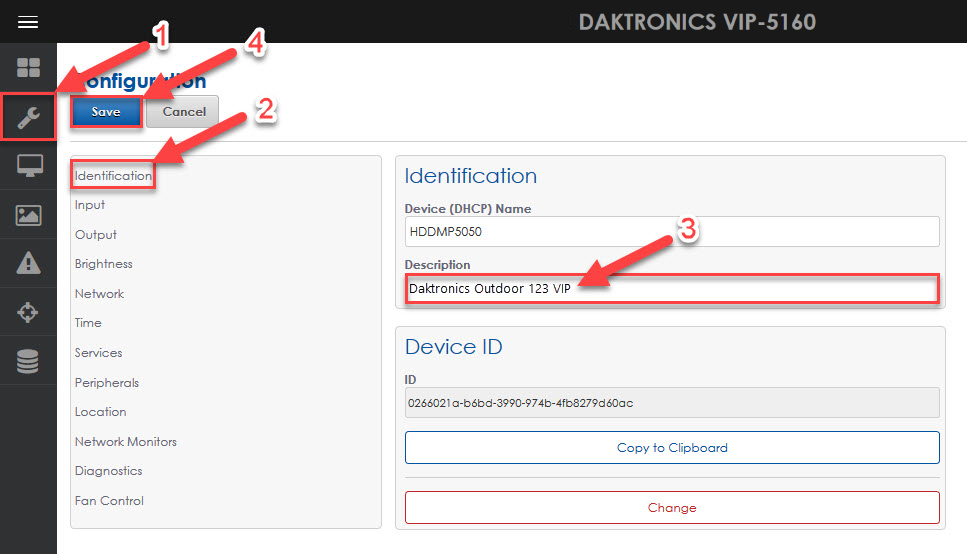

  4. Identification:
    1. Click the Configuration menu button.
    2. Ensure the Identification tab is selected.
    3. Update the Description box with the site specific name and number followed by "VIP".
      • This information is logged in the case as the site "Description" for your reference.
    4. Click Save.

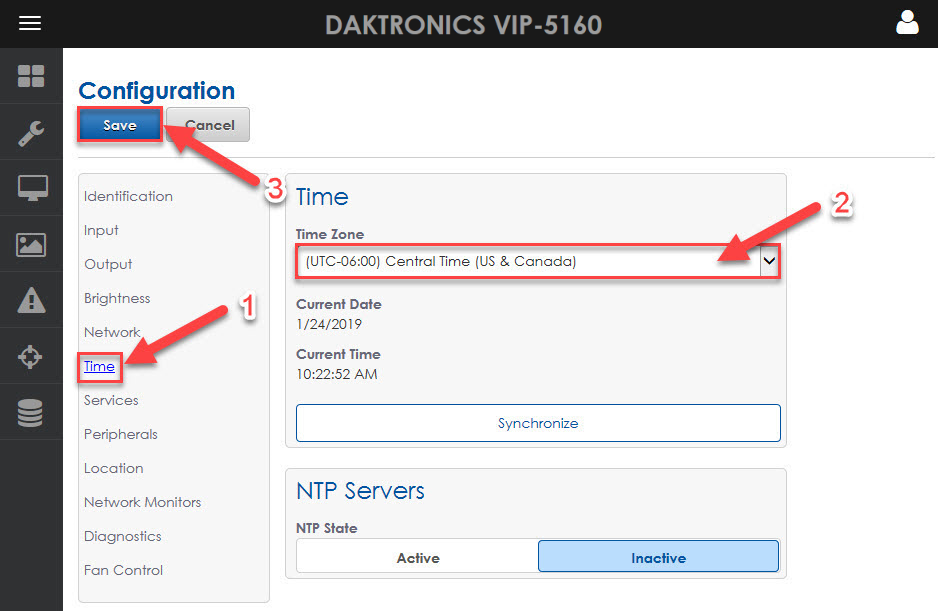

    1. Time Zone:
      1. Select the Time tab.
      2. Select the site specific time zone from the dropdown menu.
      3. Click Save.

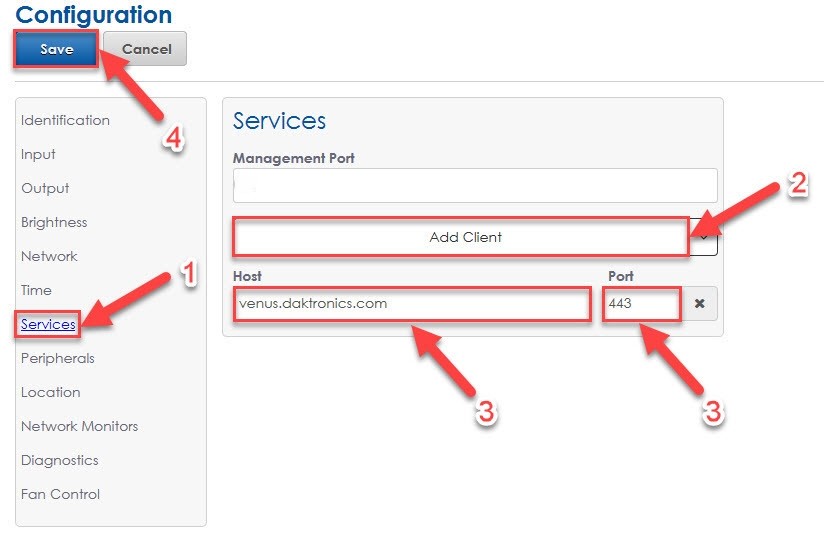

      1. Services:
        1. Select the Services tab.
        2. Select the dropdown arrow next to Add Client.
        3. Select Venus - Hosted.
        4. Click Save.

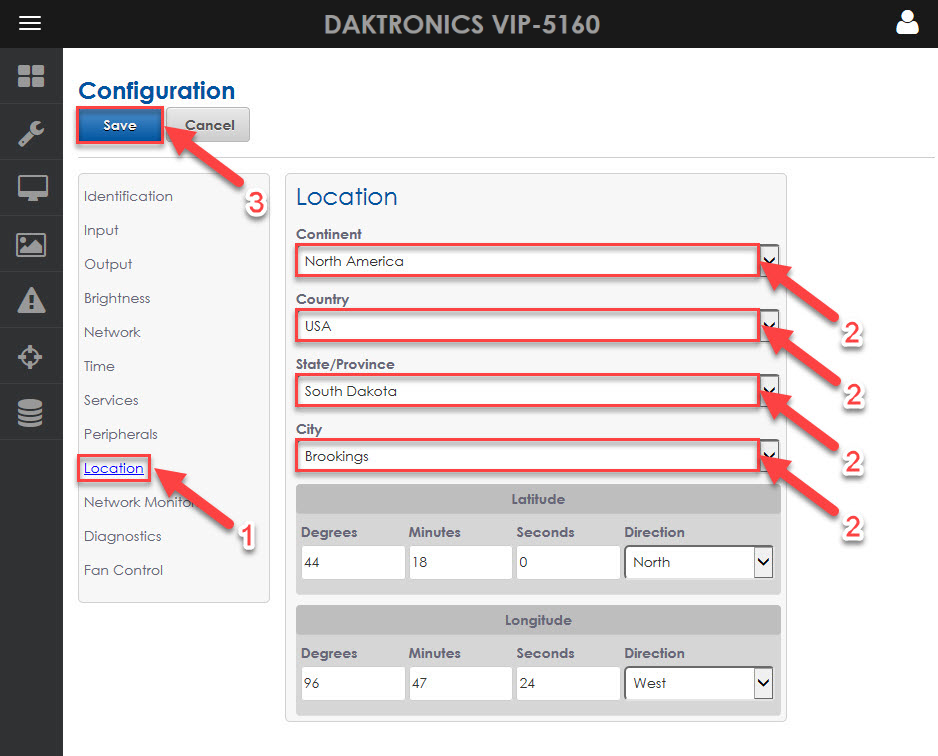

        1. Location:
          1. Select the Location tab.
          2. Select the site specific location information from the dropdown menus.
          3. Click Save.
        2. Plug the network cable for the VIP back into its original position.
        3. If this is a new installation, please proceed to configuring the DMP.

          • Alternatively if this is a replacement controller, contact Daktronics Technical Support at 1-800-DAKTRONICS to have the new device registered.
