Display Studio: How do I create audio level offsets?

Topic

  • Audio level offsets in a Display Studio
  • Adjust the volume level of a file within a Display Studio button?
  • Show Control's Display Studio script buttons
With this option, you are able to adjust the volume amplitude of a file, so it can play louder or softer than the original.

Environment

  • Product:
  • Components: Display Studio, Show Control version 2.15 or later, DMP-8000, Live-Clips
  • Control System: Show Control System (SCS)


Steps

For a script button, create a new or edit a script line. For details, see: Display Studio: How do I create script buttons in a Daktronics Show Control System.
  1. DMP-8000 Player Control.
  2. Choose the zone.
  3. Choose command type (usually Play or Create Playlist)
  4. Navigate to your file  (mov, avi, MP4 etc.)
  5. (Step 4) Click on the speaker audio icon.

For a quick display button, create new button or right click on an existing button to edit. For details, see: Display Studio: How do I create and edit a quick display container and button?

  1. Add an animated file with audio (mov, avi, MP4 etc.)
  2. Click on the speaker audio icon.
  3. Select the file to edit.

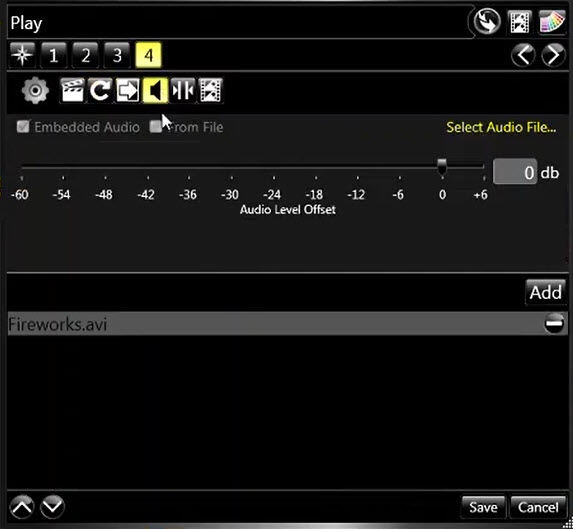

Once under the audio icon:

  1. Use the slide tool to offset the audio volume settings.
  2. Save button when all changes are complete.

audio offset.jpg
