OmniSport Pro software: How to Integrate Swiss Timing Diving and Synchro Swim with a Video Display

Topic

  • How to Integrate Swiss Timing Diving and Synchronized Swimming with a Video Display

Environment

  • Product:
  • Components: DCS
  • Control System: Swiss timing Diving and Synchro Swim; Show Control System
Note: Pro Synchronized Swimming  is no longer in production.
This product has reached End of Life. See: Discontinued Products Resources

Steps

  1. Install DCS version 4.2+, preferably on the computer running the Diving and Synchronized Swimming software.

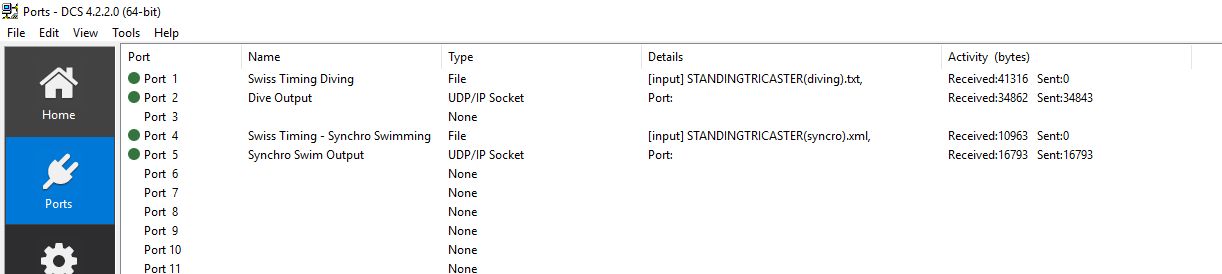

  2. Setup the input ports to read the .txt or .xml files for diving and synchro standings and the output ports for open ports on your network.
    1. 4257 1.jpeg

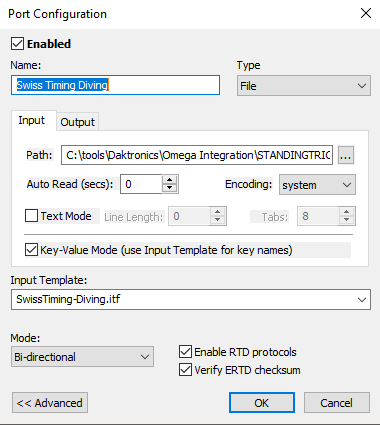

    2. Double click an open port to configure it for your first input.
    3. Check the Enabled checkbox.
    4. Name it.
    5. Choose File for Type.
    6. Browse to the text or xml file that holds the standings information.
    7. Choose System for Encoding.
    8. Check the box for Key-Value Mode.
    9. Select the SwissTiming-Diving.itf or SwissTiming-Synchronised Swimming.itf depending on which you are setting up.
      1. (If not available in the drop down, download from this Dakfiles site and save to C:\ProgramFiles\Daktronics\Common\Input Templates)
        4257 2.jpeg

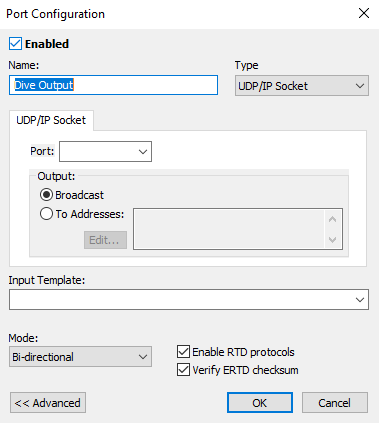

    10. Double click the next open port to setup the corresponding output.
      4257 3.jpeg

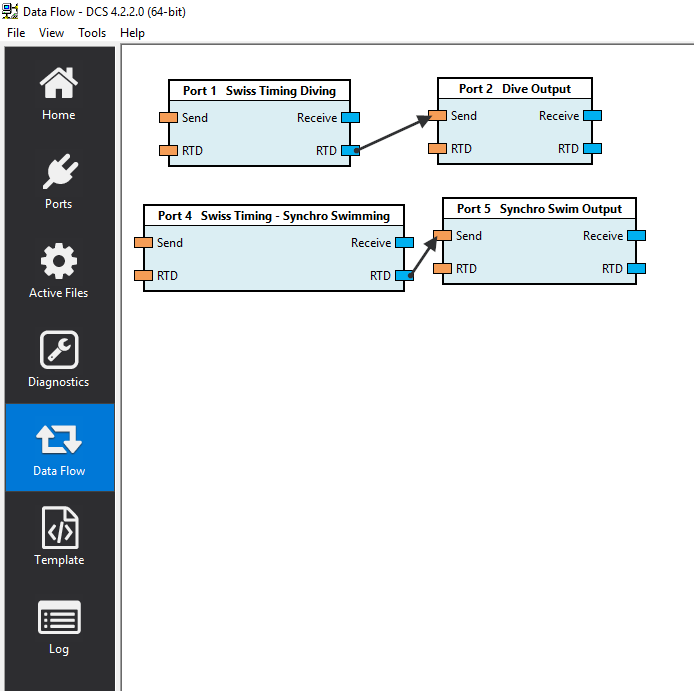

  3. Go to the Data Flow tab on the left-hand side to connect the input ports to the output ports.
    DCS Data Flow.PNG

Follow the steps in How to Configure the Profile Editor to add these data inputs to Content Studio. Be sure to add the .DID and .DSRC files to the DMP-8000s or setup Inputs and add .ITFs to the DMP-7000s.

KB ID: 000004257
