Pitch Clock: How do I change my timer presets for baseball
Topic
- How to set or change presets for Pitch Timers to comply with the rules?
- Rule changes may require customers to increase to the number of stored pitch timer settings.
- Customer with Allsport 1600 series console and cannot use more than 2 pitch timers.
- This article describes how to configure an additional timing preset for All Sport 5010 and All Sport 5100 consoles.
Environment
- Product: Pitch Timers
- Components: All Sport 5100 - All Sport 5100 console uses the 3-button handheld. All Sport 5010 requires manual configuration of 3 pitch clocks through the console. 0A-1196-0311 @1 ALL SPORT 5100 R6 PACE OF GAME KIT includes the 3 button and inserts needed.
- Support of 4th reset on J8 requires an All Sport 5100 with v4.3.3 of the program.
- Control System: Minor league baseball, NCAA baseball
Steps
🔽Use the arrows to open and collapse the following sections.
Configure the presets for MiLB (example)
Suggested preset times for MiLB are provided as guidelines. Configure/confirm that the presets are matching the corresponding rule set of your conference/association.
Turn on the All Sport and enter code: 5001
Preset 1:
- Press <EDIT>
- Press <PRESET 1>
- Press <0><1><5> followed by <ENTER>. For 15 second time*
- Press <ENTER> when prompted for "WARNING" time
- Press <PRESET 1> to see time entered display
Preset 2:
- Press <EDIT>
- Press <PRESET 2>
- Press <0><2><0> followed by <ENTER>. For 20 second time*
- Press <ENTER> when prompted for "WARNING" time
- Press <PRESET 2> to see time entered display
Preset 3:
- Press <EDIT>
- Press <PRESET 3>
- Press <2><2><5> followed by <ENTER>. For 2:25 time.
- Press <ENTER> when prompted for "WARNING" time
- Press <PRESET 3> to see time entered display
*Time less than one [1] minute includes a leading zero [0]
Configure the presets for NCAA (example)
Configure/confirm that the presets are matching the corresponding rule set of your conference/association.
Non-Conference games (example)
- 20 seconds between pitches
- 2 minutes (120 seconds) between half innings.
Appendix F of NCAA Rulebook -This is an example of rules and how they would apply to the presets.)
- 0:20 (20 seconds) between pitches
- 2:00 (120 seconds) between half innings
- 2:30 (150 seconds) between half innings for relief pitcher
- 0:30 (30 seconds) between batters, mount visit, or offensive timeout (permissive)
Preset configuration (example)
Turn on your All Sport 5100 series console and choose code 5001 for Pitch timer.
Preset 1:
- Press <EDIT>.
- Press <PRESET 1>.
- Press <0><2><0> followed by <ENTER>. For 20 second time.*
- Press <ENTER> when prompted for "WARNING" time.
- Press <PRESET 1> to see time entered display.
Preset 2:
- Press <EDIT>.
- Press <PRESET 2>.
- Press <2><0><0> followed by <ENTER>. For 2:00 time.*
- Press <ENTER> when prompted for "WARNING" time.
- Press <PRESET 2> to see time entered display.
Preset 3:
- Press <EDIT>.
- Press <PRESET 3>.
- Press <2><3><0> followed by <ENTER>. For 2:30 time.*
- Press <ENTER> when prompted for "WARNING" time.
- Press <PRESET 3> to see time entered display.
Preset 4:
Support of 4th reset on J8 requires v4.3.3 of the program.
- Press <EDIT>.
- Press <PRESET 4>.
- Press <0><3><0> followed by <ENTER>. For 30 second time.*
- Press <ENTER> when prompted for "WARNING" time.
- Press <PRESET 4> to see time entered display.
Preset 5 or more:
Add more presets as needed by using the above steps as an example.
*Time less than one [1] minute includes a leading zero [0]
There should be preset menus for up to 10 timers
Uses the following: All Sport Series Console Pitch Timing Insert 03000619
Next Step is to assign each PRESET to a PROGRAM
PROGRAM is to ensure that only one (1) PRESET will run for each PROGRAM button.
Program 1:
- Press <EDIT>
- Press <PROGRAM 1>
- Press <0><1> followed by <ENTER>
- Press <0><0> followed by <ENTER>
- Press <PROGRAM 1> to see Preset 1 on display
Program 2:
1. Press <EDIT>
Repeat above steps to create others.
Operation
All Sport 5010- During operation, the timing can be manually input via the console.

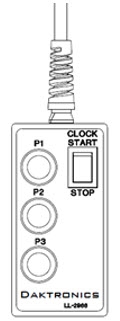

All Sport 5100- The new presets can now be used on the handheld controller by clicking on P1, P2, P3. Any additional presets can be controlled manually from the All Sport 5100 console.
Related Resources
Pitch Clock: How do I turn off the warning flash that happens every 30 seconds
Pitch Clock: How do I blank when runners are on base
- Whistle stop can plug into the J8
- Use All sport 5100R pace of game kit 0A-1196-0311
Pitch Clock: How do I integrate my All Sport with WhistleStop Diamond?
