How to remotely update a custom translation table on a VFC, VC6, or VS6

Topic

  • How to remotely update a custom translation table on a VFC,VS6, or VC6?

Environment

  • Product: VC6, VF-Series, VM-Series, VX-Series, VS6
  • Components: VFC, DMP-50X0
  • Control System: Vanguard

Steps

  1. Login to the VIP interface.
    • **NOTE:  Must be connected to the Primary Ethernet port to access VIP.  It is not possible to access VIP through Auxiliary Ethernet port.
    • For assistance accessing VIP web interface, contact Daktronics Technical Support
  2. Select Configuration.
  3. Select Output.

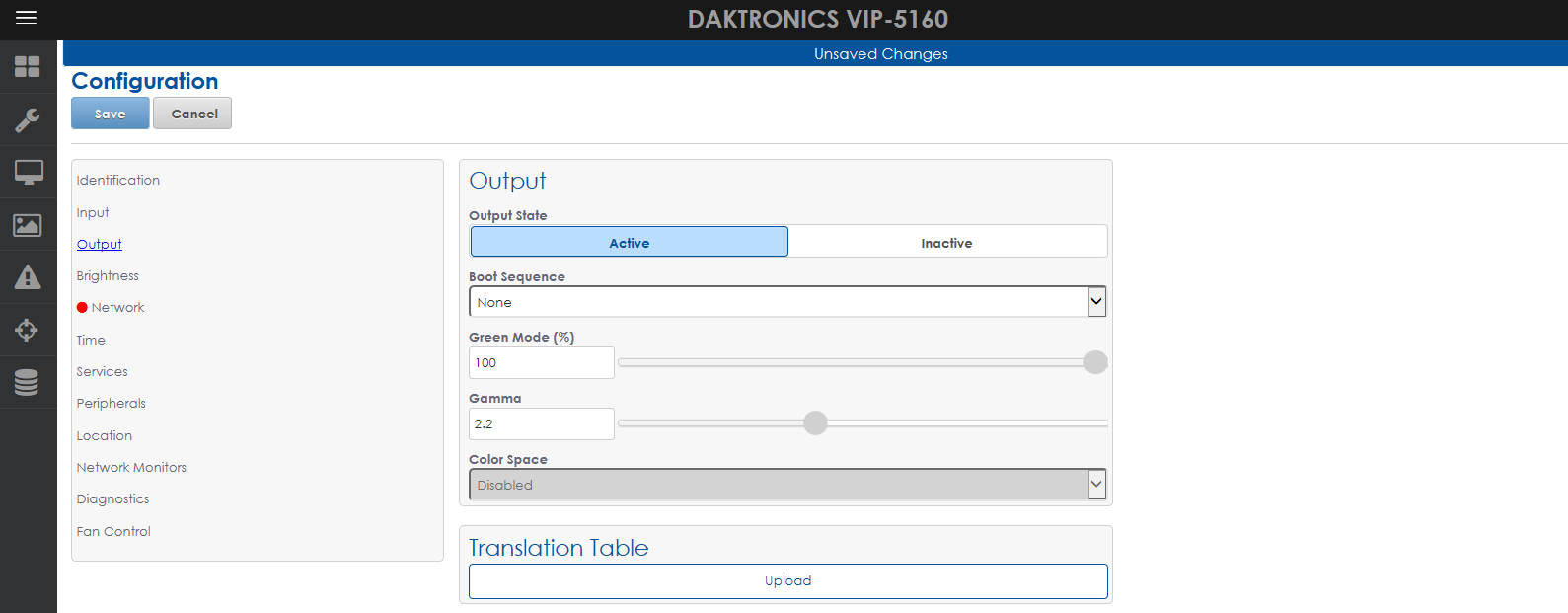

  4. Click on Upload button beneath Translation Table.
  5. Browse to the location of the Translation Table (TT) and click the 'Open' button.
  6. After upload of the TT is complete, verify Display Information section is populated with the correct information, then close the web page.
  7. Login to the DMP web page and select the Car icon (NTCIP).
    • For assistance accessing the DMP web interface, contact Daktronics Technical Support
    • Login to Configuration menu and verify display is configured for correct size.
      1. Select Sign 1.
      2. Select Configuration.
      3. Select System.
      4. Select Required.
      5. Scroll down one and select Translation Table
      6. Option should be set to none or not automatic.
      7. Verify correct matrix size is listed along top, just beneath top line of "Required Display Configuration".
