Venus Displays: How do I set default transitions for my display in Venus Control Suite?

Topic

  • How do I set default transitions for my display in VCS?
  • Effects- fade, dissolve, wipe, etc.

Environment

  • Product: Venus Select, Venus Professional, Venus Enterprise
  • Components: Content Transitions
  • Control System: Venus Cloud-Based, Venus Local, DMP-8000 version 8.5.0 or later, DMP-5000 version 8.5 or later
Note: It may say in VCS under Displays>Transitions that this will only work for DMP-8000 8.6.0.0 or higher. That is untrue. Confirmed with Software Ops that that Transitions will work for both DMP-8000 and DMP-5000 so long as their revision is 8.5 or later. See Control System above.

🛠️Account administrators have access to change the display's settings.

    Steps

      Use the arrows to expand / collapse each section.

      Locate transitions in the Displays App.
      1. Log into Venus Control Suite.
      2. Open Venus Display App from the Apps Menu located in the top right of the VCS landing page.
      3. Click on an existing display to Edit.
      4. Click on the Code Compliance tab.
      5. Locate Transitions.

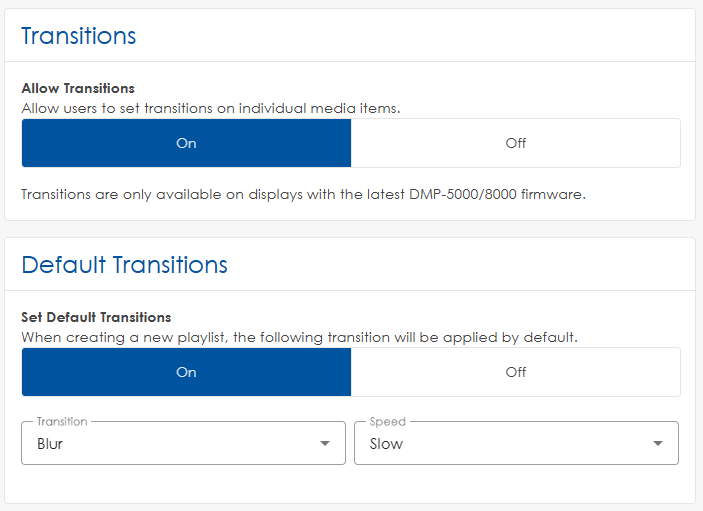

      Screenshot 2023-10-30 162300.png

      Transition configuration
      1. Choose On to allow transitions. This will allow default transitions at a display level and playlist level.
      2. Under Default Transitions, choose On. -This transition will apply to the display and all of its zones.
      3. Pick a transition from the drop down. See: Venus Content Transitions: What are the default transitions for my display in Venus Control Suite?
      4. Choose a transition speed. There are 3 options:
        • Slow = 0.6 seconds
        • Medium = 0.4 seconds
        • Fast = 0.2 seconds
      5. Click Save.

      Transition Considerations

      • Transitions are entry effects only on items.  A transition applied to a web presentation would happen on the 1st slide and not in-between different slides.
      • If Content Studio is used to create a sequence (presentation) with transitions built into it, then, there could be a scenario where there are two different transitions happening at the same time.  It would play out as:
        VCS transition -> CS transition -> CS transition.

      Content transitions are part of the Venus Select Subscription level, please verify your subscription level on the Launchpad.  If you are in Venus Basic you will not be able to add or edit default transitions.  If you would like to upgrade your subscription, please contact technical support.

      Legacy Process
      1. Log into Venus Control Suite.  See: Venus Accounts: How do I log in to Venus Control Suite?
      2. Choose Displays.
      3. Click on an existing display to Edit or Add New.

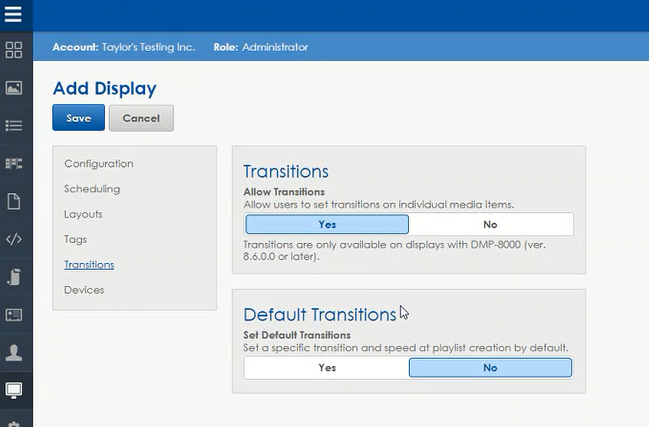

      4. Select Transitions.
      5. Choose Yes to allow transitions. This will allow default transitions at a display level and eventually playlist level.
      6. Under Default Transitions, choose yes. -This transition will apply to the display and all of its zones.

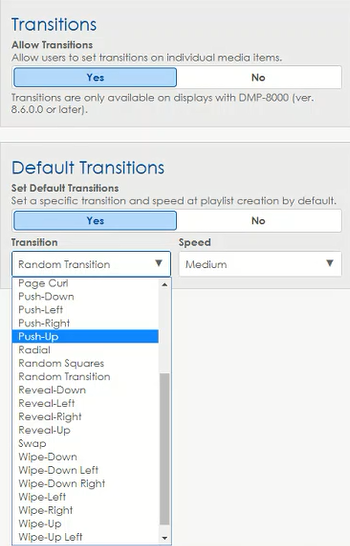

      7. Pick a transition from the drop down. See: Venus Content Transitions: What are the default transitions for my display in Venus Control Suite?
      8. Choose a transition speed. There are 3 options:
        • Slow = 0.6 seconds
        • Medium = 0.4 seconds
        • Fast = 0.2 seconds
      9. Click Save.

        Related Resources

        Venus Content Transitions: What are the default transitions for my display in Venus Control Suite? Using transitions for individual playlists. A user will be able to apply transitions to a playlist item at any time via the playlist item media constraints (back of the button)
