DMP-8000: How do I setup ERTD via HTML web interface

Topic

  • How to Setup ERTD on a DMP-8000  via HTML web interface

Environment

  • Product Family: Control System
  • Product: DMP-8000 (VNET) version 7.25+
  • Components:
  • Control System:
RTD enables the user to manage Real-Time Data (RTD) sources including mapping Enhanced Real-Time Data (ERTD) sign numbers to zones that are configured for the display, adding data sources, and mapping colors to specific values.

Steps

  1. Log into the DMP HTML web user interface. See:  How to use the DMP-8000 HTML web user interface .
  2. On the left side menu, click on the wrench icon to access the configuration menu
  3. Click on RTD
  4. Configure Sign Mapping
  5. Click Add Mapping under Sign Mapping.
  6. Enter the ERTD sign number to be assigned to a zone in the Sign # text box. Ensure the number does not conflict with the ERTD sign number of any other displays in the system
  7. Enter the name of the zone being added in the Zone Name text box with the format Sign Name/Zone Name:

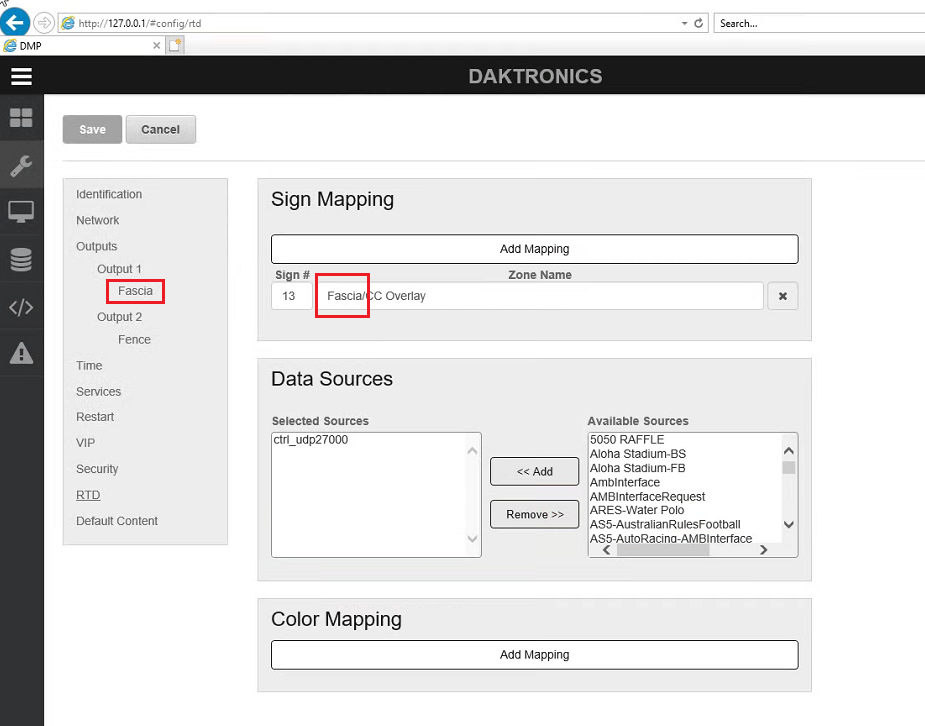

8000 USING MULTI-SIGN OUTPUT_2.png

Regardless of if the DMP-8000 set up with multiple signs, you MUST have a sign name preceding the zone name in the config, e.g. a default sign named "primary" should have "primary/" as in this example:
Sign-zone mapping.png

  1.  Repeat steps to add additional zones.

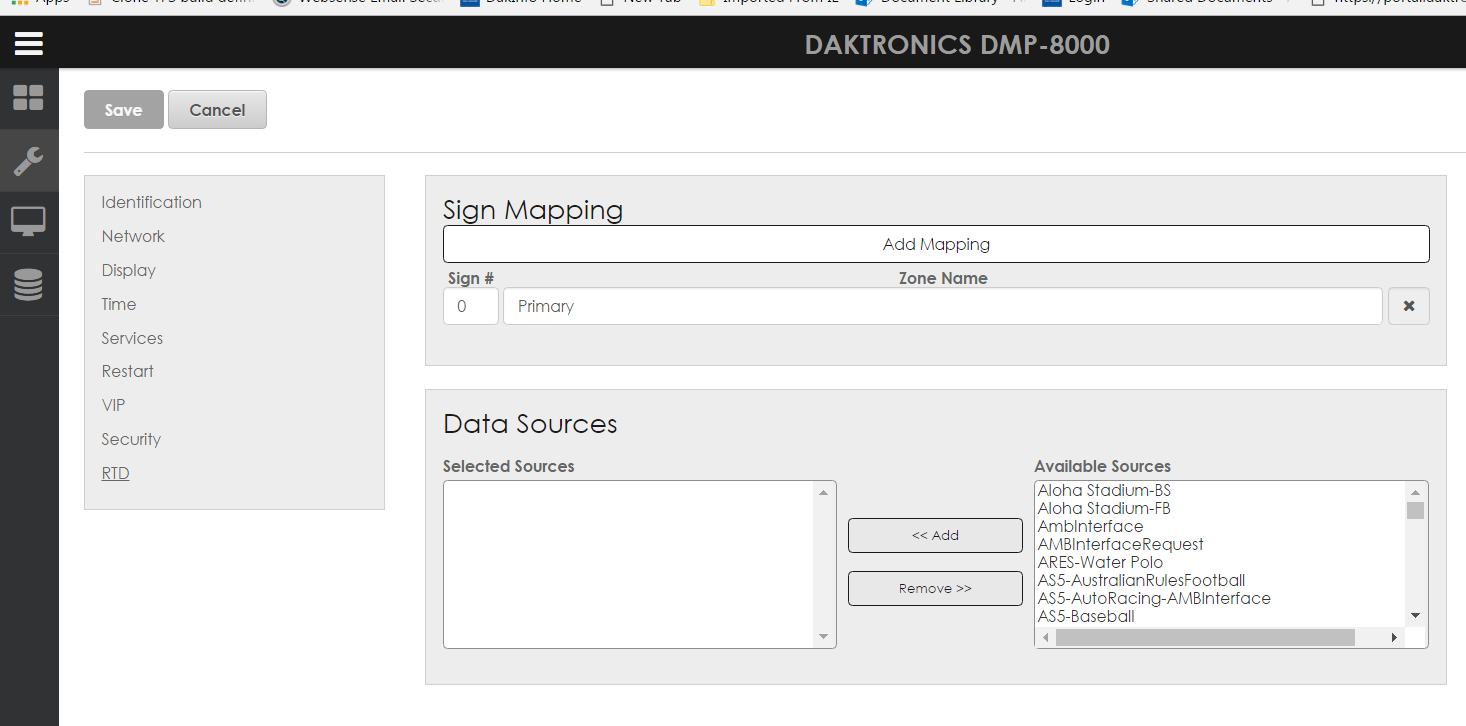

  2. Choose a data source from the list of Available Sources by highlighting the needed source and clicking Add.DSRC.png
Note: The process of creating display zones and playing content in those zones varies according to the control system being used. Sign mapping is generally required if triggering content from older Daktronics equipment (Venus 7000, DSTI Trigger, DCS Script, etc. or some third-party equipment.

Related Resources

DMP-8000: How to set up data source into the player
